Power Window Motor

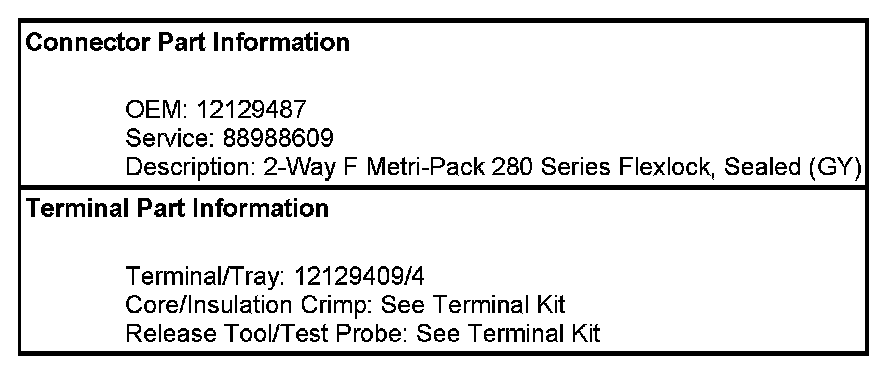

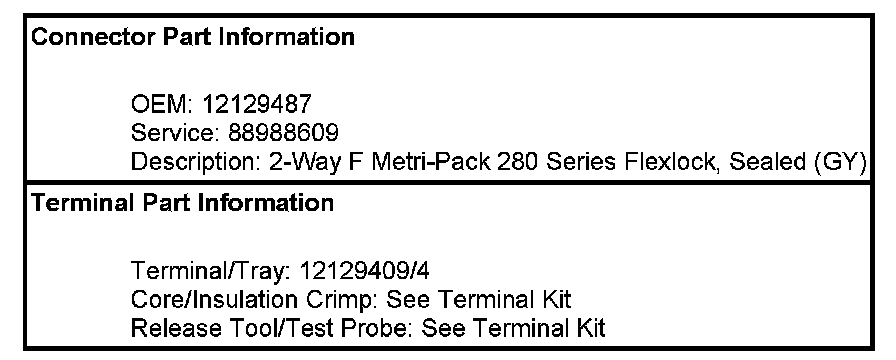

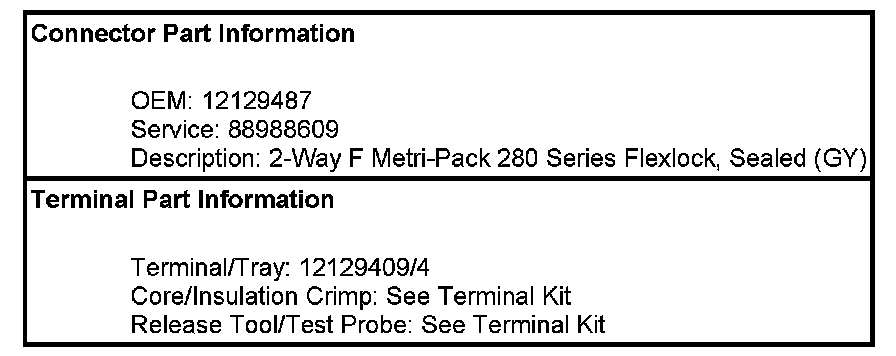

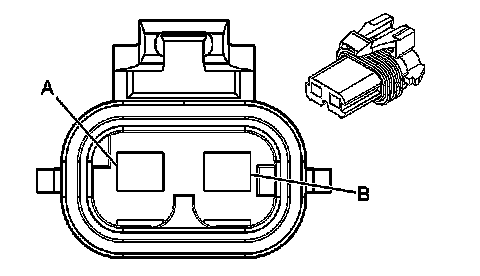

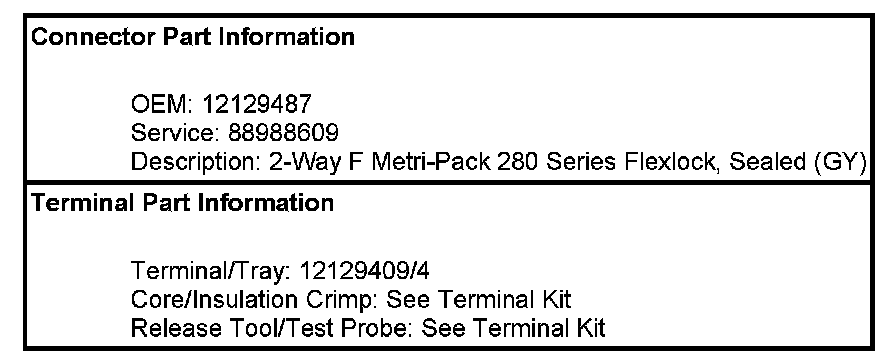

Window Systems Connector End Views

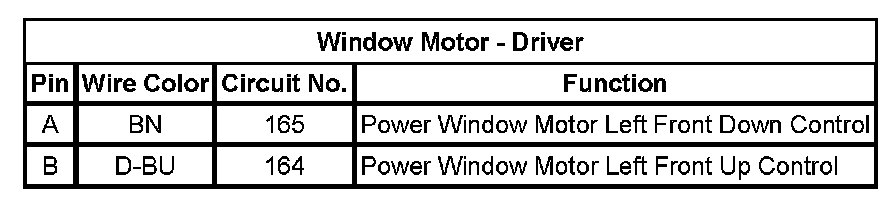

Window Motor - Driver

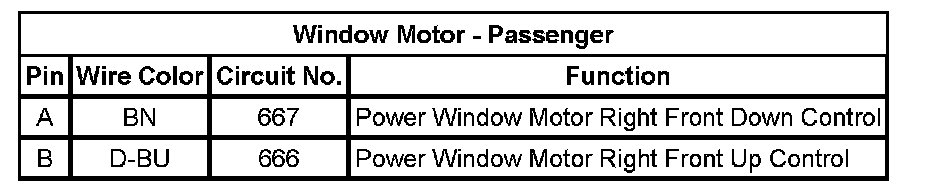

Window Motor - Passenger














Window Motor - Left Rear

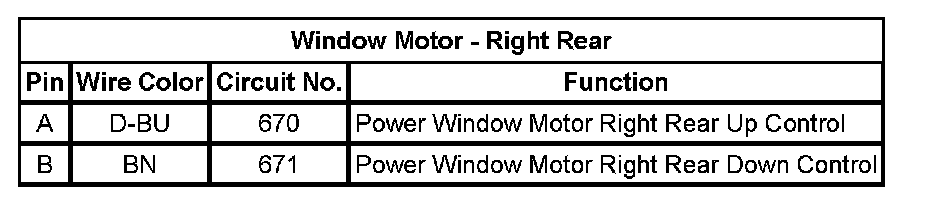

Window Motor - Right Rear
