Chassis Views



Harness Routing Views

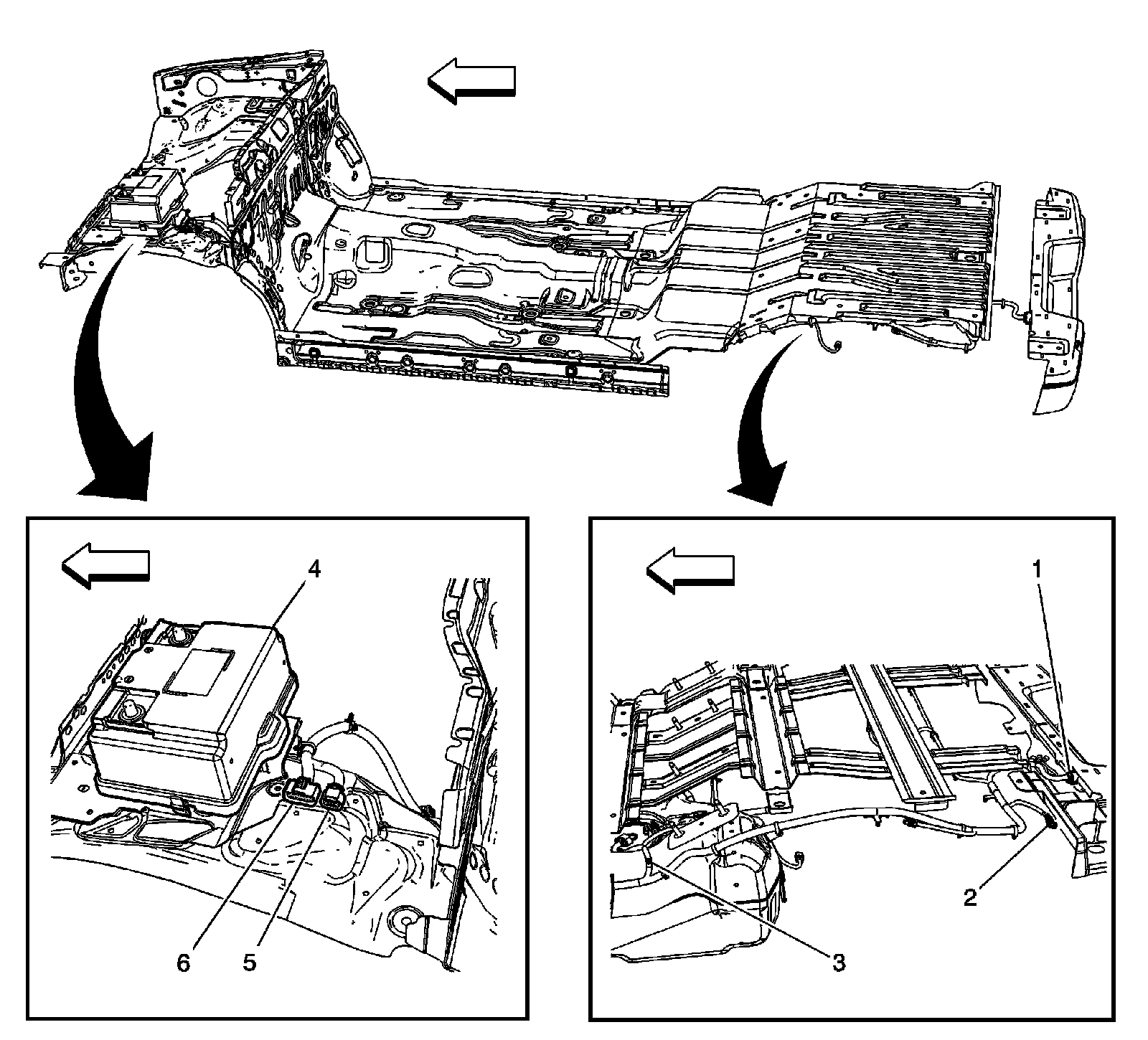

Chassis Harness Routing




1 - C420
2 - G420
3 - S359
4 - Battery
5 - C155
6 - C150
