Steering Views



Harness Routing Views

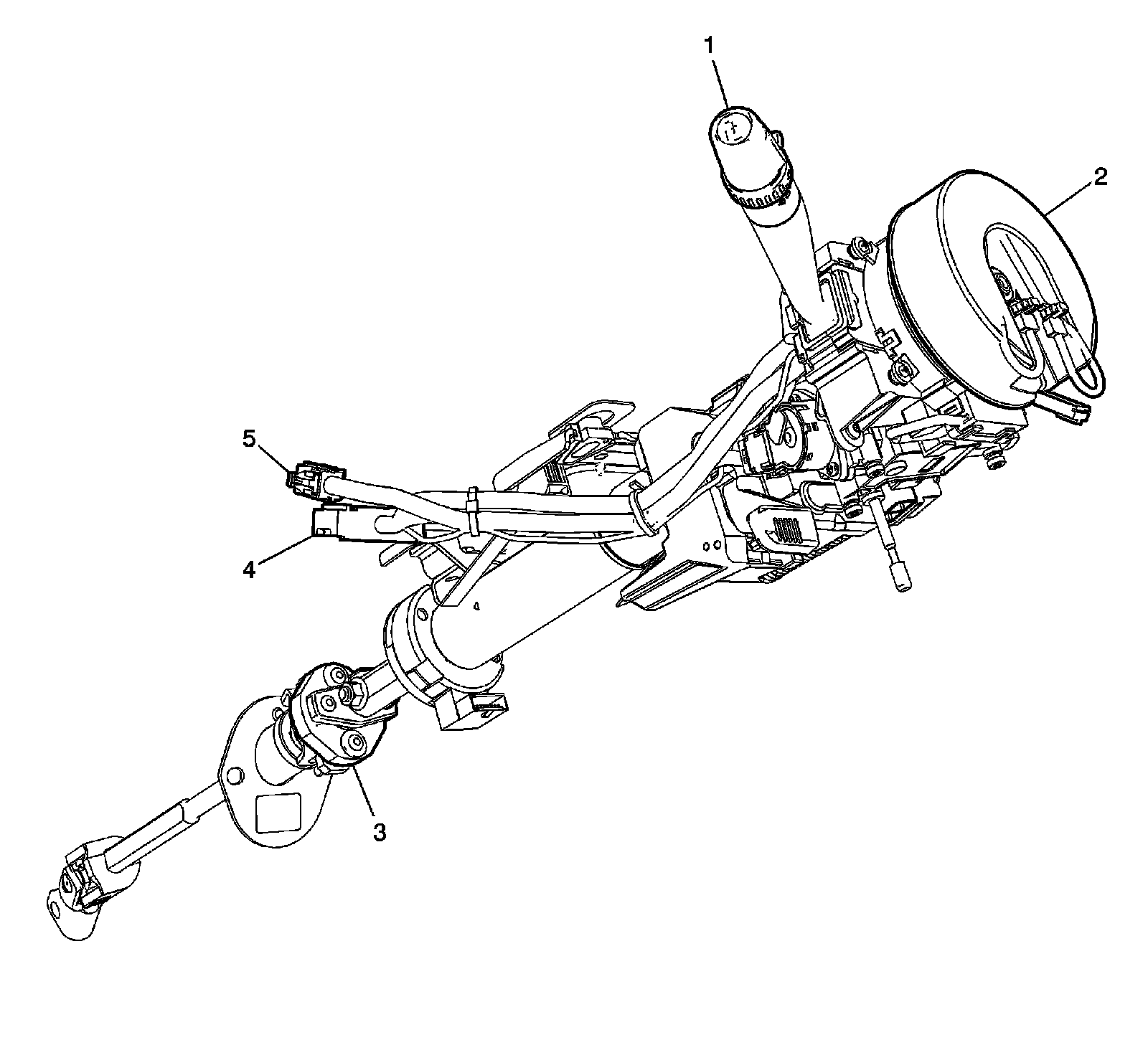

Steering Column Components




1 - Turn Signal/Multifunction Switch
2 - Inflatable Restraint Steering Wheel Module Coil
3 - Steering Wheel Position Sensor (JL4)
4 - C201
5 - C275
