Entertainment/Communication Component Views

Fig 1: View Of Entertainment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular, Navigation and Digital Radio Antenna
2	Digital Radio Receiver
3	Radio Antenna
4	Speaker - RF Tweeter
5	C220 - Base Radio Coax
6	C221 - Digital Radio Coax
7	C222 - Vehicle Communication Interface Module (VCIM) Coax
8	Speaker-RF Door
9	Speaker-RR Door
10	Vehicle Communication Interface Module (VCIM)
11	Speaker-LR Door
12	Speaker-Subwoofer
13	Audio Amplifier
14	Speaker-RF Door
15	Radio
16	Speaker - LF Tweeter

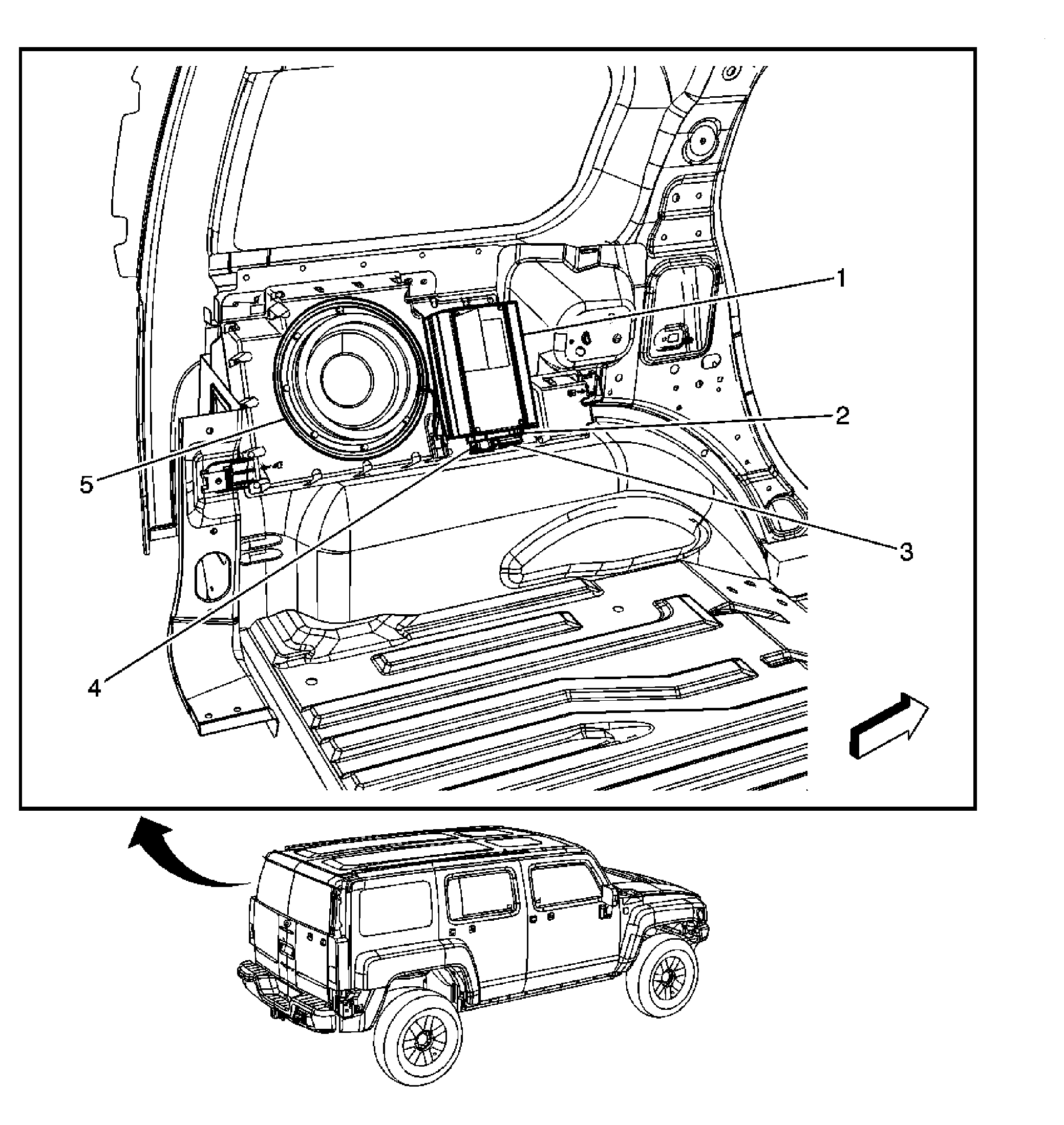

Fig 2: View Of Left Rear of Cargo Area Components

Courtesy of GENERAL MOTORS CORP.
