Ambient Light Sensor Replacement

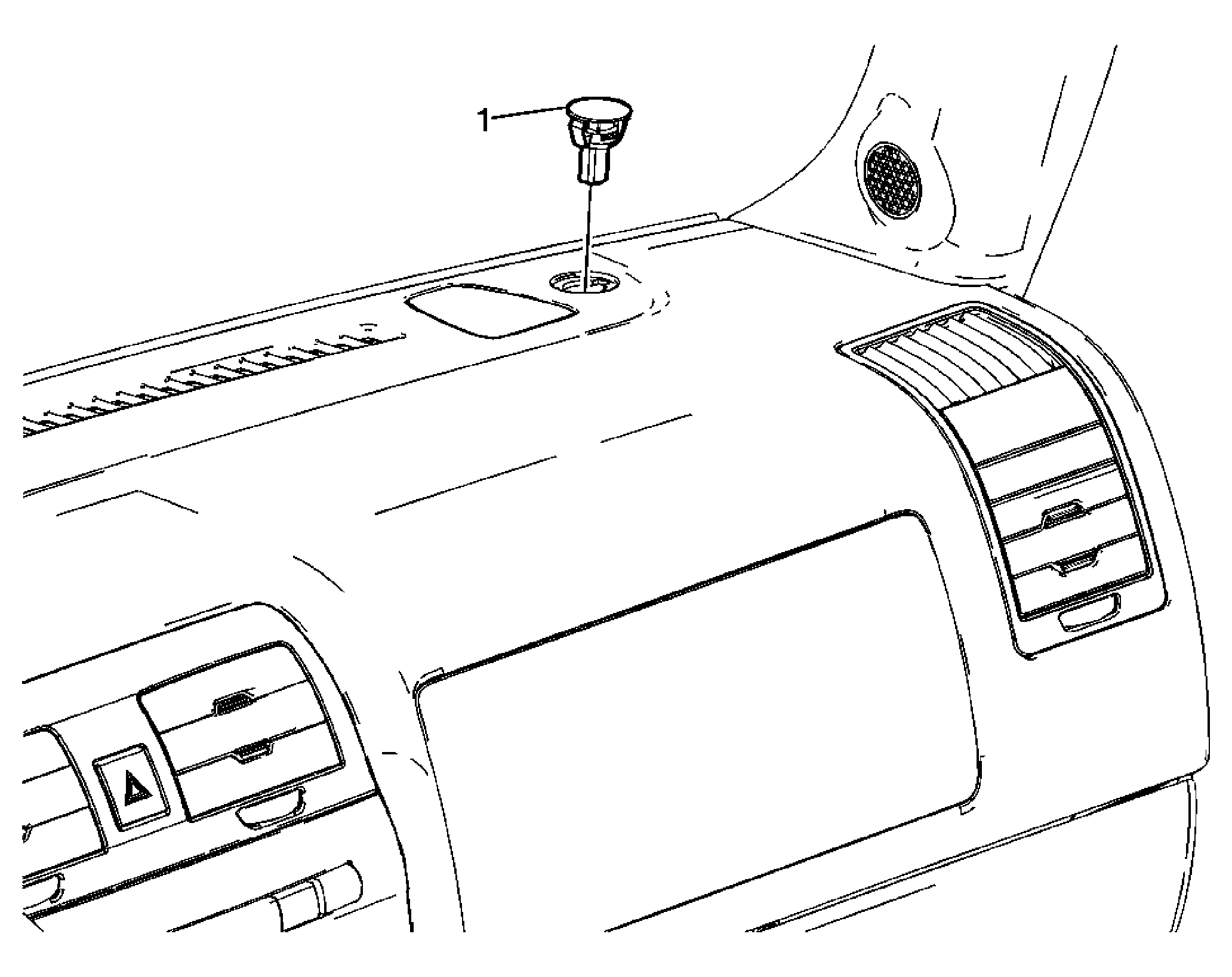

Fig 1: Ambient Light Sensor Replacement
GM1556217Courtesy of GENERAL MOTORS CORP.
Ambient Light Sensor Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Sensor Assembly, Ambient Light
Tip:
  1. Use a small plastic trim tool to remove the sensor.
  2. Disconnect the electrical connector.
