Engine Controls Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Controls Components View (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil 4
2	Fuel Injector 4
3	Ignition Coil 3
4	Fuel Injector 3
5	Ignition Coil 2
6	Fuel Injector 2
7	Fuel Injector 1
8	Ignition Coil 1
9	Engine Oil Pressure (EOP) Sensor
10	Heated Oxygen Sensor (HO2S) 1
11	Heated Oxygen Sensor (HO2S) 1 Connector
12	Engine Coolant Temperature (ECT) Sensor

Fig 2: Engine Controls Components View (2 Of 5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor
2	Evaporative Emission (EVAP) Canister Purge Solenoid
3	Knock Sensor
4	Starter
5	Crankshaft Position (CKP) Sensor
6	G102
7	G103
8	G101
9	A/C Compressor Clutch (C60)
10	Engine Block Heater
11	Generator

Fig 3: Engine Controls Components View (3 Of 5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor
2	Throttle Body
3	Camshaft Position (CMP) Sensor
4	Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust
5	Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
6	Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Connector

Fig 4: Engine Controls Components View (4 Of 5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Powertrain Control Module (PCM)
2	Front Plenum Panel

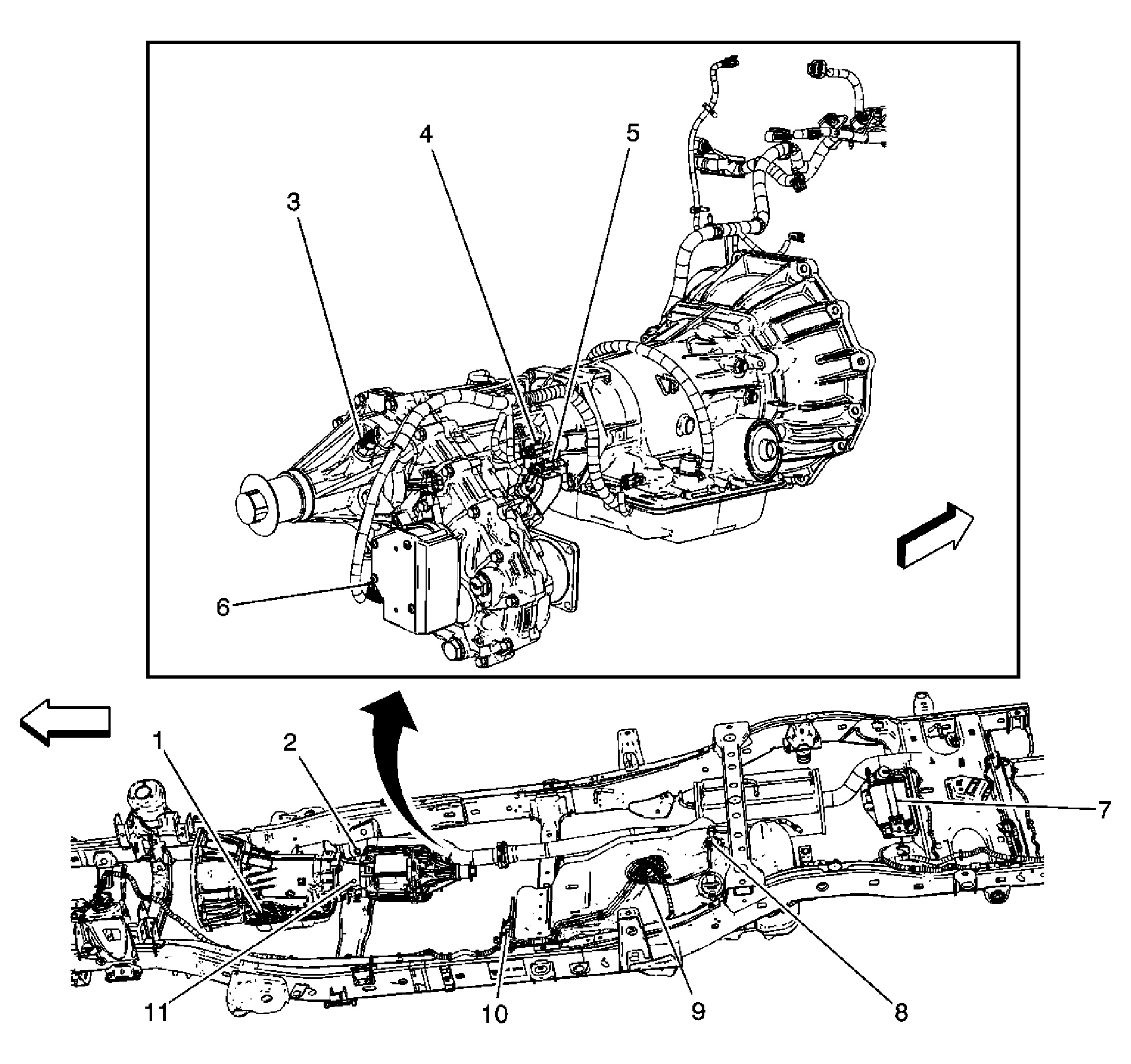

Fig 5: Engine Controls Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Neutral Position (PNP) Switch (M30)
2	Heated Oxygen Sensor (HO2S) 2
3	Vehicle Speed Sensor (VSS)
4	Transfer Case Neutral Switch (4WD)
5	Transfer Case 2/4 Wheel Driver Indicator Switch (4WD)
6	Transfer Case Encoder Motor (4WD)
7	Evaporative Emission (EVAP) Canister Vent Solenoid
8	Fuel Tank Pressure (FTP) Sensor
9	Fuel Pump and Sender Assembly
10	Fuel Pump
11	Transfer Case

Fig 6: Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C275 (Body Harness to Steering Wheel Harness)
2	A/T Shift Lock Control Solenoid Connector
3	Body Harness
4	Accelerator Pedal Position (APP) Sensor Connector
5	Accelerator Pedal
6	Accelerator Pedal Position (APP) Sensor
7	A/T Shift Lock Control Solenoid
8	Ignition Lock Cylinder Case (Ignition Switch Location)
