Engine Electrical Component Views
WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Body Harness |
| 2 |
Clutch Switch (MA5) |
| 3 |
Clutch Switch Connector (MA5) |
| 4 |
TCC Brake/Cruise Release Switch Connector |
| 5 |
Stop Lamp Switch Connector |
| 6 |
Stop Lamp Switch |
| 7 |
TCC Brake/Cruise Release Switch |
| 8 |
Brake Pedal |
| 9 |
Clutch Pedal |
| 10 |
Clutch Start Switch Connector (MA5) |
| 11 |
Clutch Start Switch (MA5) |

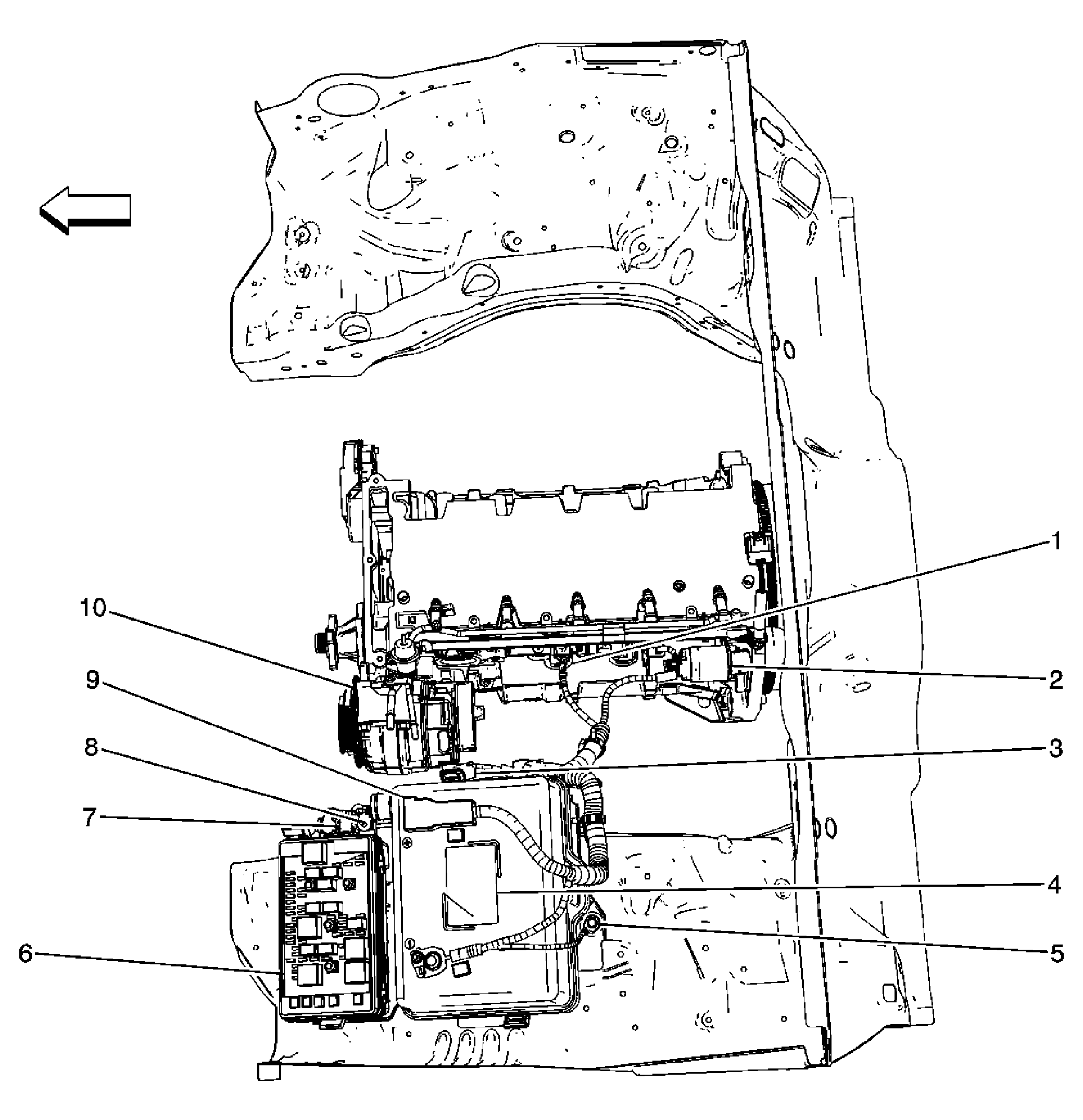

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
G104 |
| 2 |
Starter Solenoid |
| 3 |
Generator Positive Voltage Connector |
| 4 |
Battery |
| 5 |
G100 |
| 6 |
Fuse Block - Underhood |
| 7 |
Ring Terminal Battery |
| 8 |
Ring Terminal Generator |
| 9 |
Battery Positive Terminal |
| 10 |
Generator |
