Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

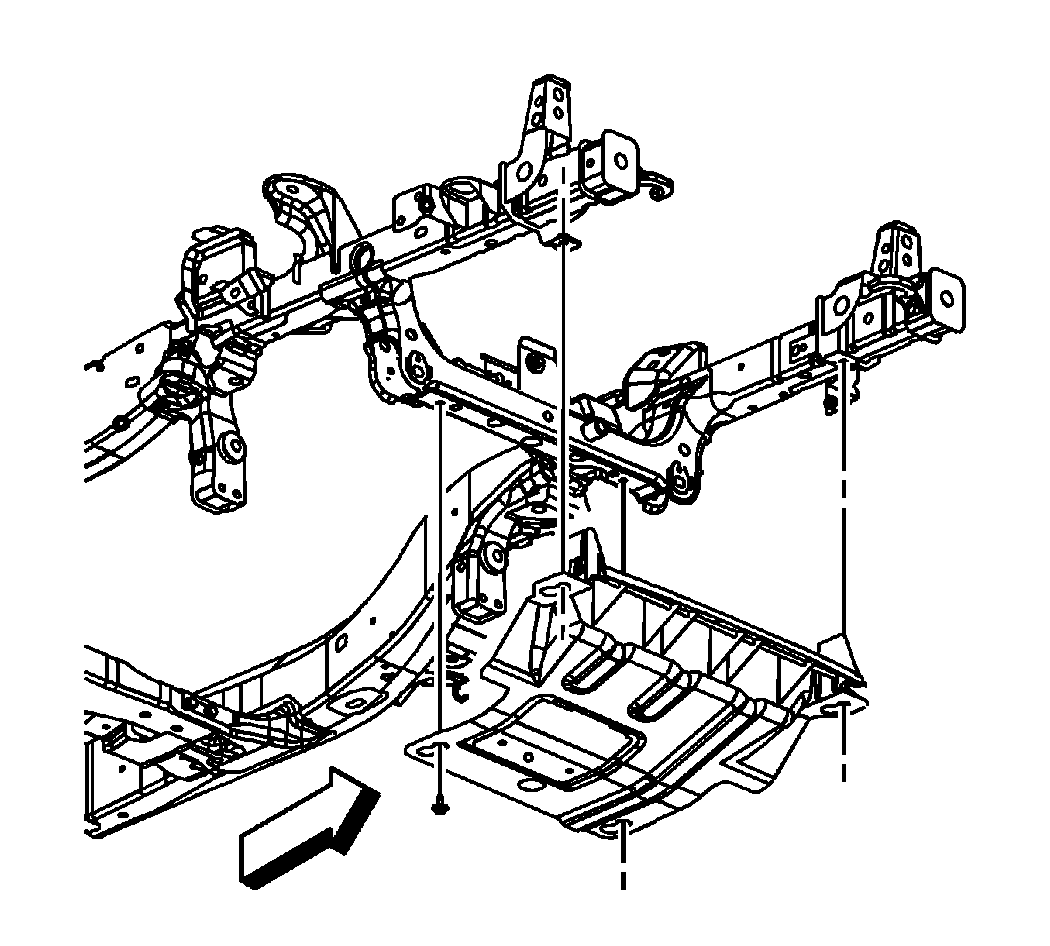

    Fig 1: View Of Engine Protection Shield
    GM1253074Courtesy of GENERAL MOTORS CORP.
  1. Install the shield to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the shield to frame bolts.

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).
