Power Moding Schematics

Fig 1: Ignition II/III Voltage
GM1961654Courtesy of GENERAL MOTORS CORP.

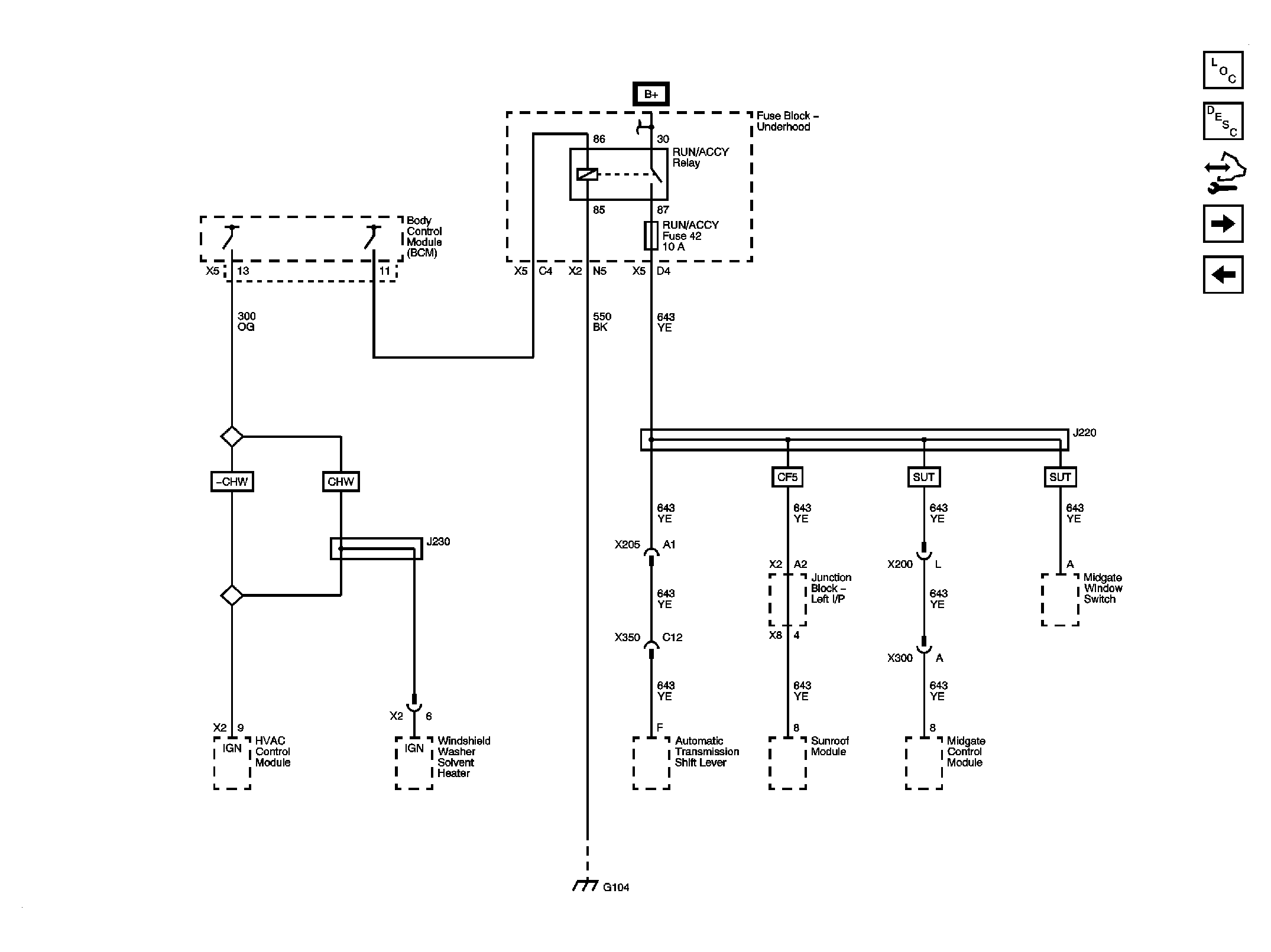

Fig 2: Accessory Voltage
GM1961657Courtesy of GENERAL MOTORS CORP.
Fig 3: Ignition III Voltage
GM1961660Courtesy of GENERAL MOTORS CORP.
