Knock Sensor 2 Replacement

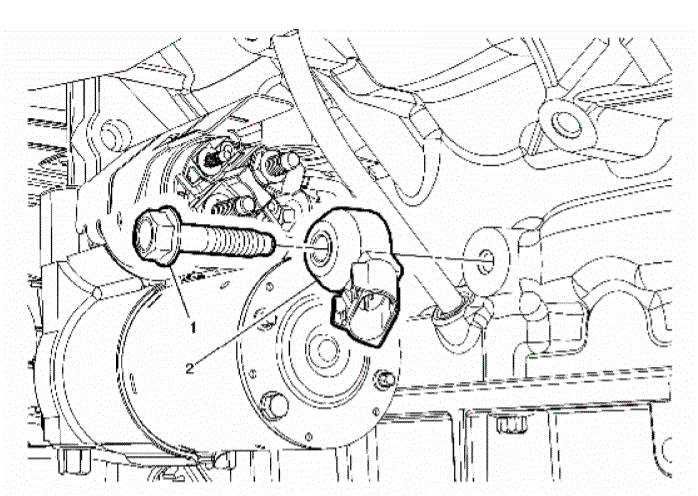

Fig 1: Knock Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Knock Sensor Fastener NOTE: Refer to Fastener Notice .
	Tighten 25 Nm (18 lb ft)
2	Knock Sensor
	Procedure Disconnect the electrical connector.
