Wiper/Washer Component Views
WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

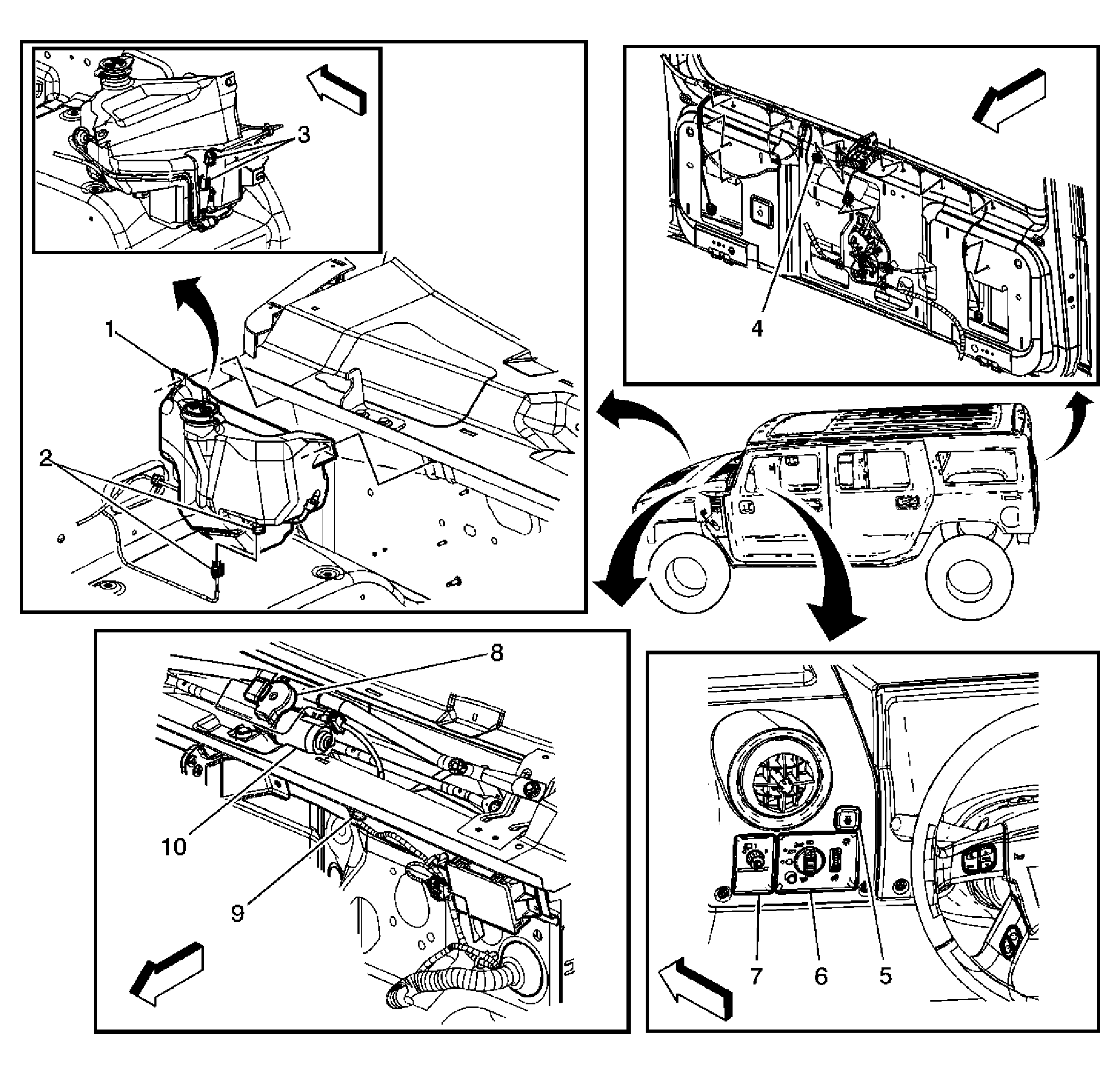

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Windshield Washer Fluid Container |
| 2 |
Washer Fluid Level Sensor |
| 3 |
Windshield Washer Fluid Pump - Reversible |
| 4 |
Rear Window Wiper Motor (SUV) |
| 5 |
Heated Washer Switch (WS2) |
| 6 |
Headlamp and Panel Dimmer Switch |
| 7 |
Rear Wiper/Washer Switch (SUV) |
| 8 |
Windshield Wiper/Washer Module |
| 9 |
I/P Harness |
| 10 |
Windshield Wiper Motor |

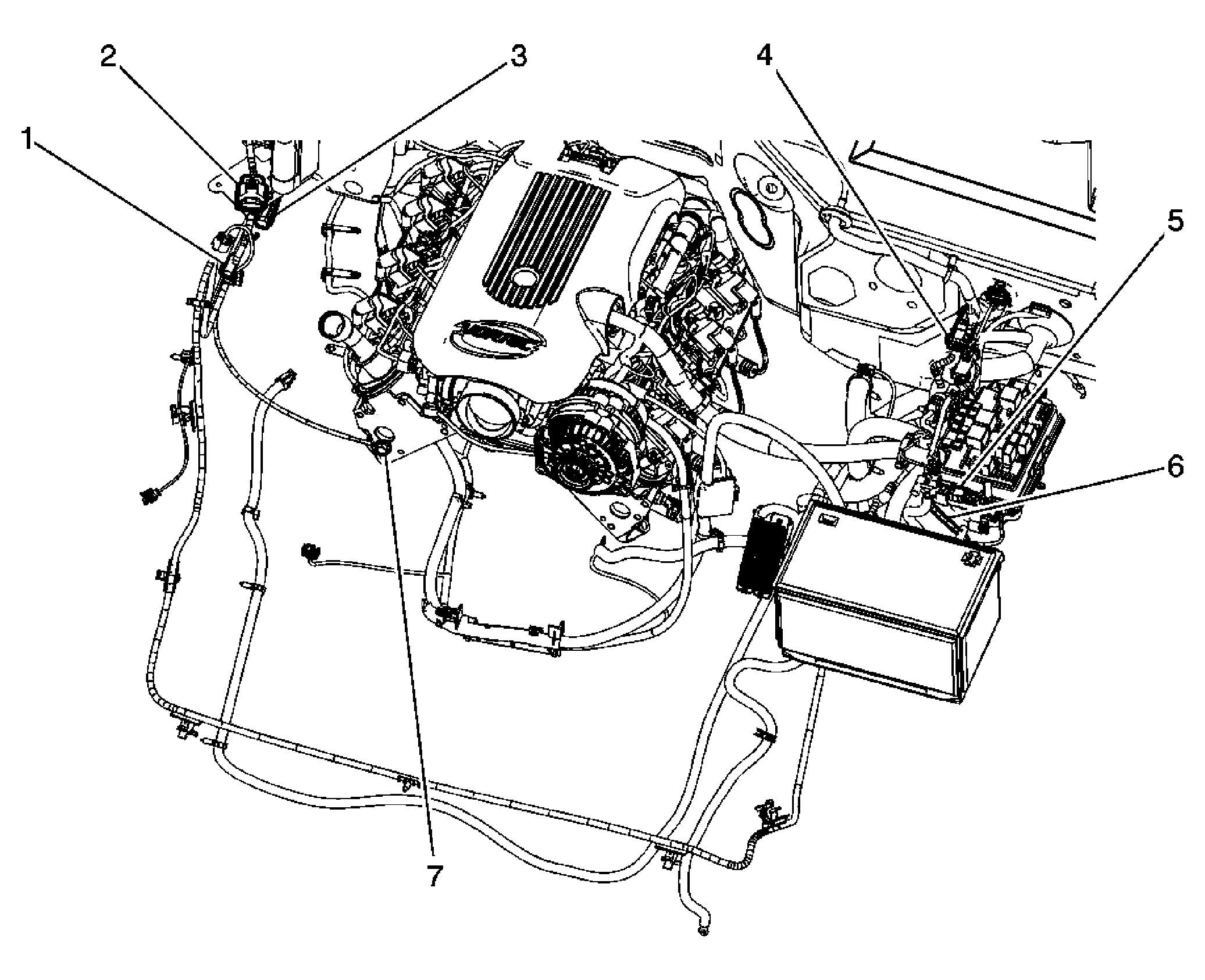

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
S107 |
| 2 |
Heated Washer C1 |
| 3 |
Heated Washer C2 |
| 4 |
C108 |
| 5 |
Mega Fuse |
| 6 |
Fusable Link |
| 7 |
G105 |
