Rear Window Wiper Control Module Replacement

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

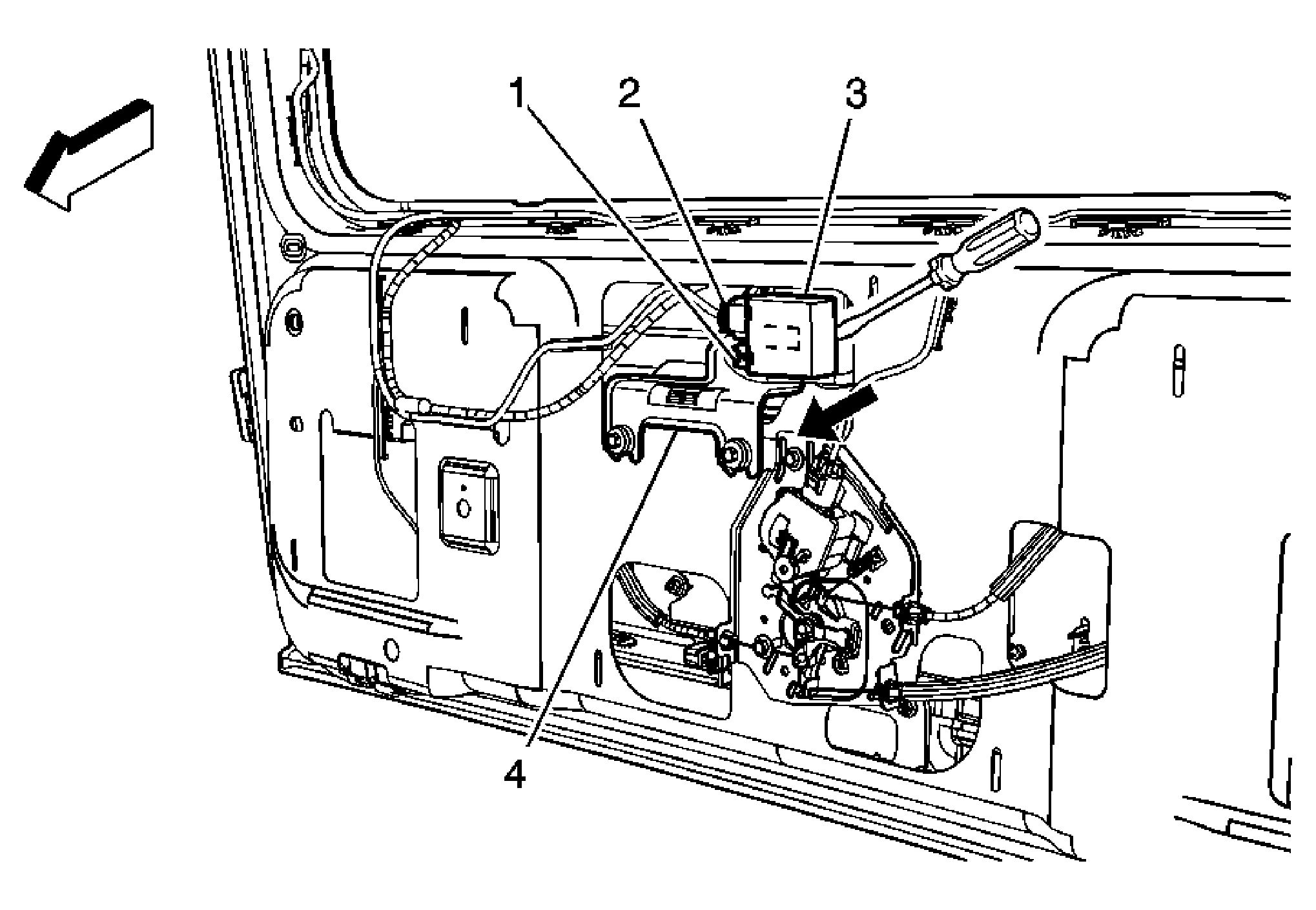

Fig 1: Rear Window Wiper Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the rear liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
1	Wiper Motor Electrical Connector
2	Main Liftgate Harness Electrical Connector
3	Rear Window Wiper Control Module Tip: Using a flat-bladed tool, insert the tool behind the control module and release the locking tab in order to slide and remove the wiper control module from the wiper motor bracket. Program the rear window wiper control module. Refer to Control Module References .
4	Rear Window Wiper Motor Bracket
