Windshield Washer Fluid Level Switch

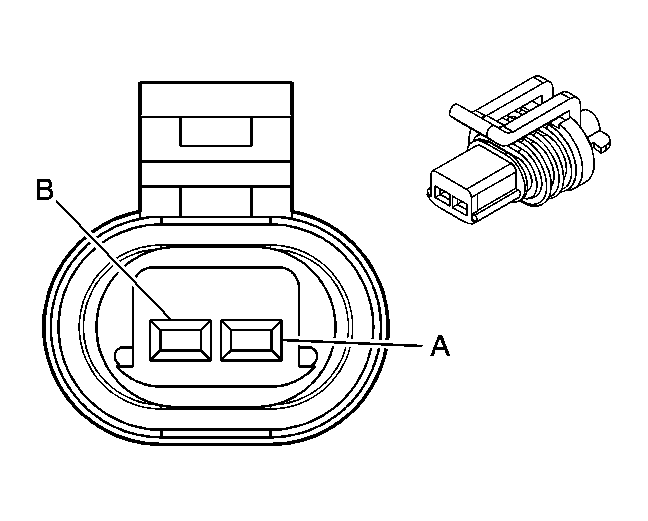

Fig 1: Windshield Washer Fluid Level Switch Connector End View
GM1401776Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15336024
  • Service: See Catalog
  • Description: 2-Way F GT 150 Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Pin Wire Circuit Function
1 0.5 TN 185 Low Washer Fluid Indicator Control
2 0.5 BK 250 Ground
