Starter Relay: Service and Repair

Starter Motor Relay Replacement

Removal Procedure

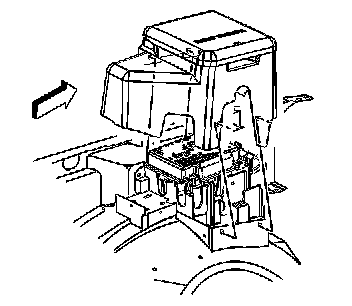

1. Remove the underhood bussed electrical center (UBEC) cover.
2. Remove the starter motor relay. Refer to Relay Replacement (Attached to Wire Harness) (Relay Replacement (Attached to Wire Harness))Relay Replacement (Within an Electrical Center) (Relay Replacement (Within an Electrical Center)) .



Installation Procedure





1. Install the starter motor relay. Refer to Relay Replacement (Attached to Wire Harness) (Relay Replacement (Attached to Wire Harness))Relay Replacement (Within an Electrical Center) (Relay Replacement (Within an Electrical Center)) .
2. Install the UBEC cover.
