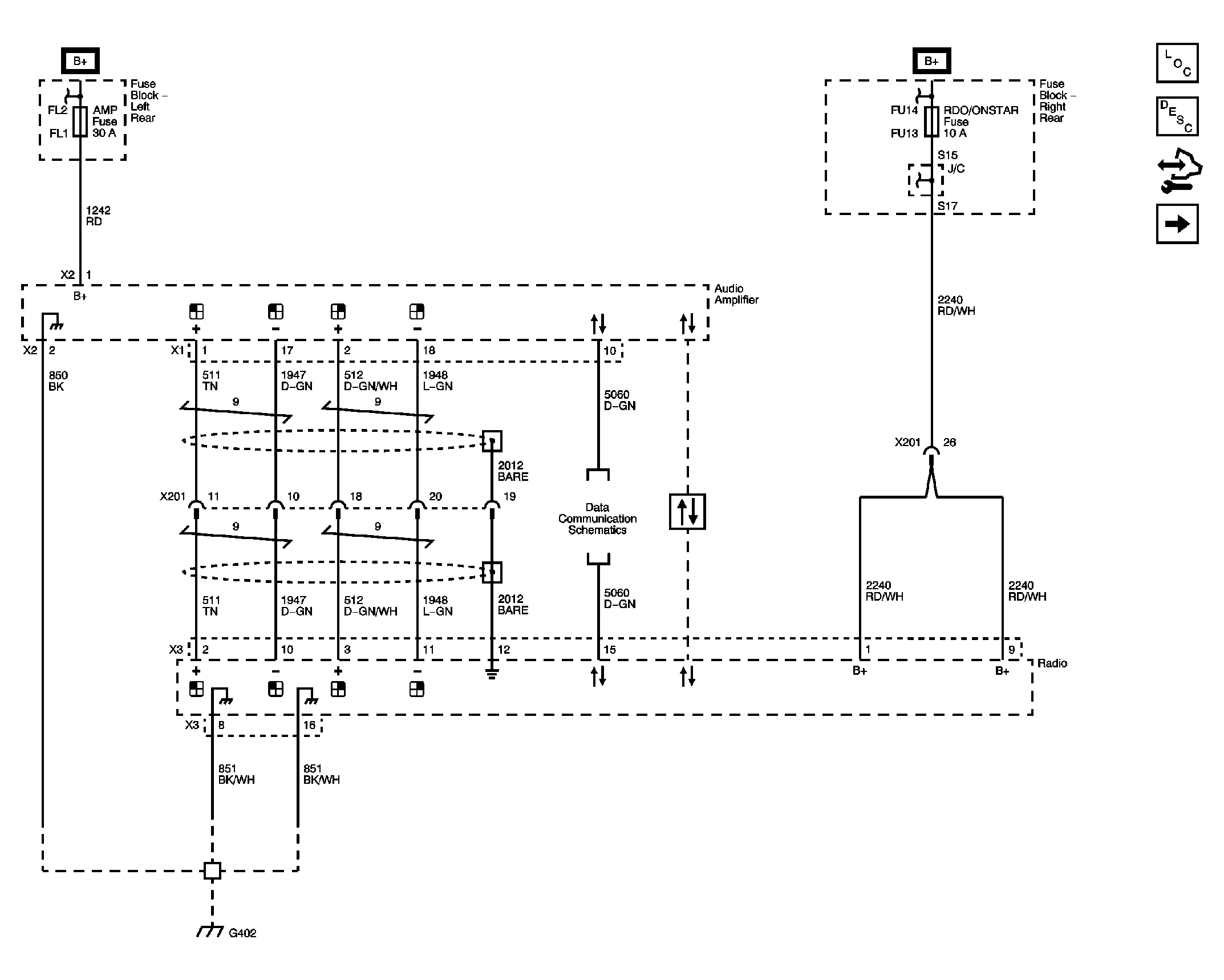

Fig 1: Radio Power, Ground, DLC and Audio Communications
Courtesy of GENERAL MOTORS CORP.

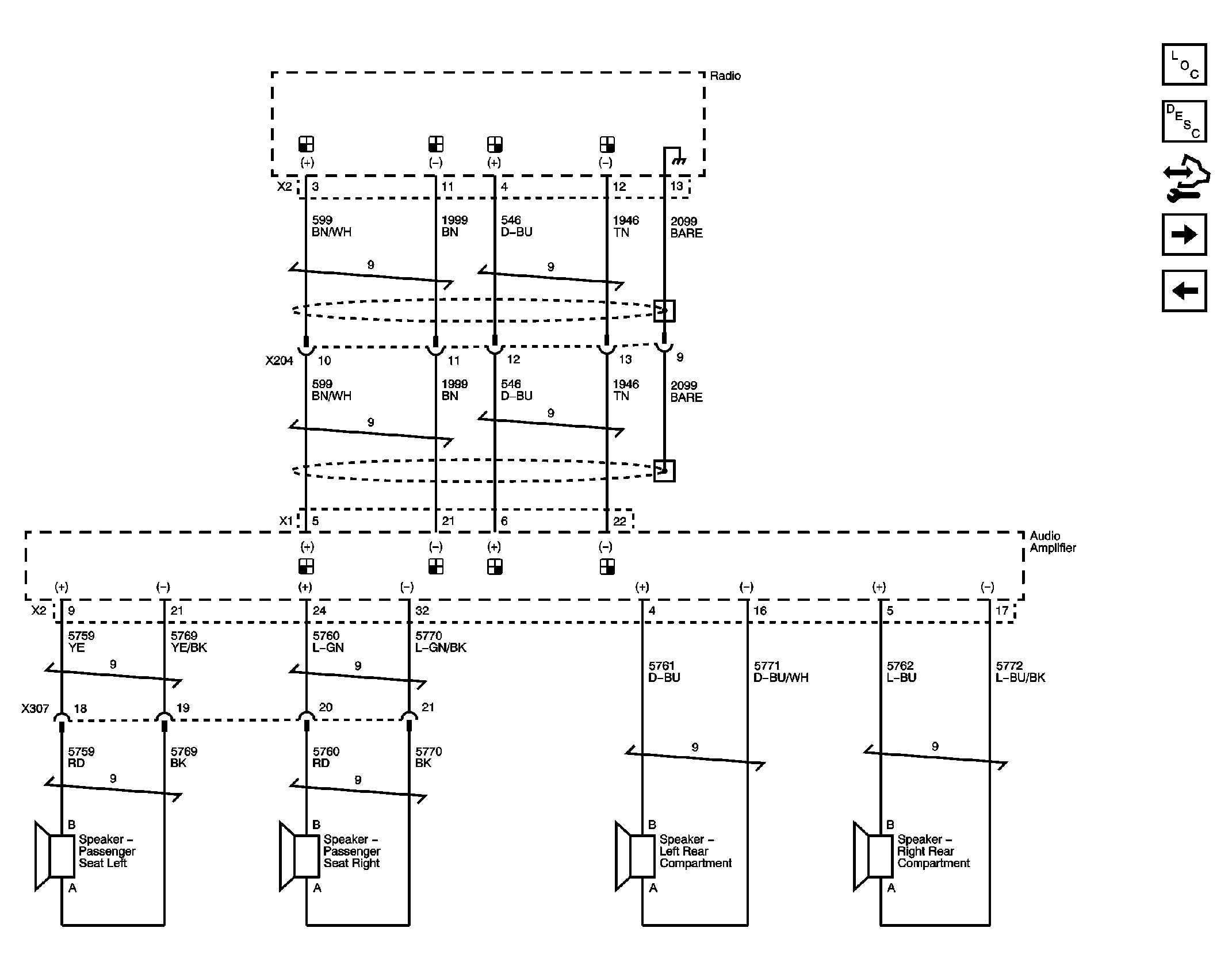

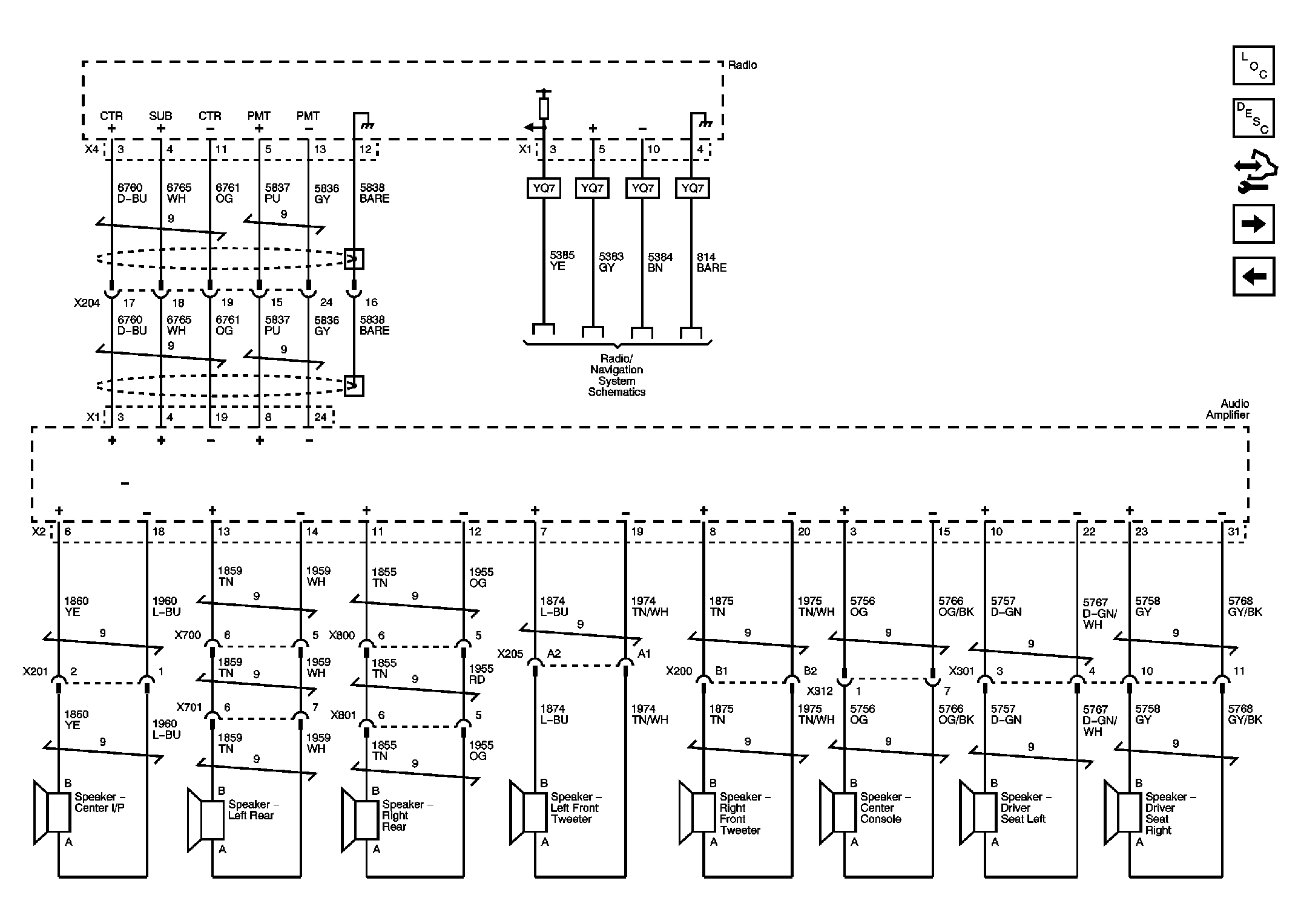

Fig 2: Speakers (UX8)
Courtesy of GENERAL MOTORS CORP.

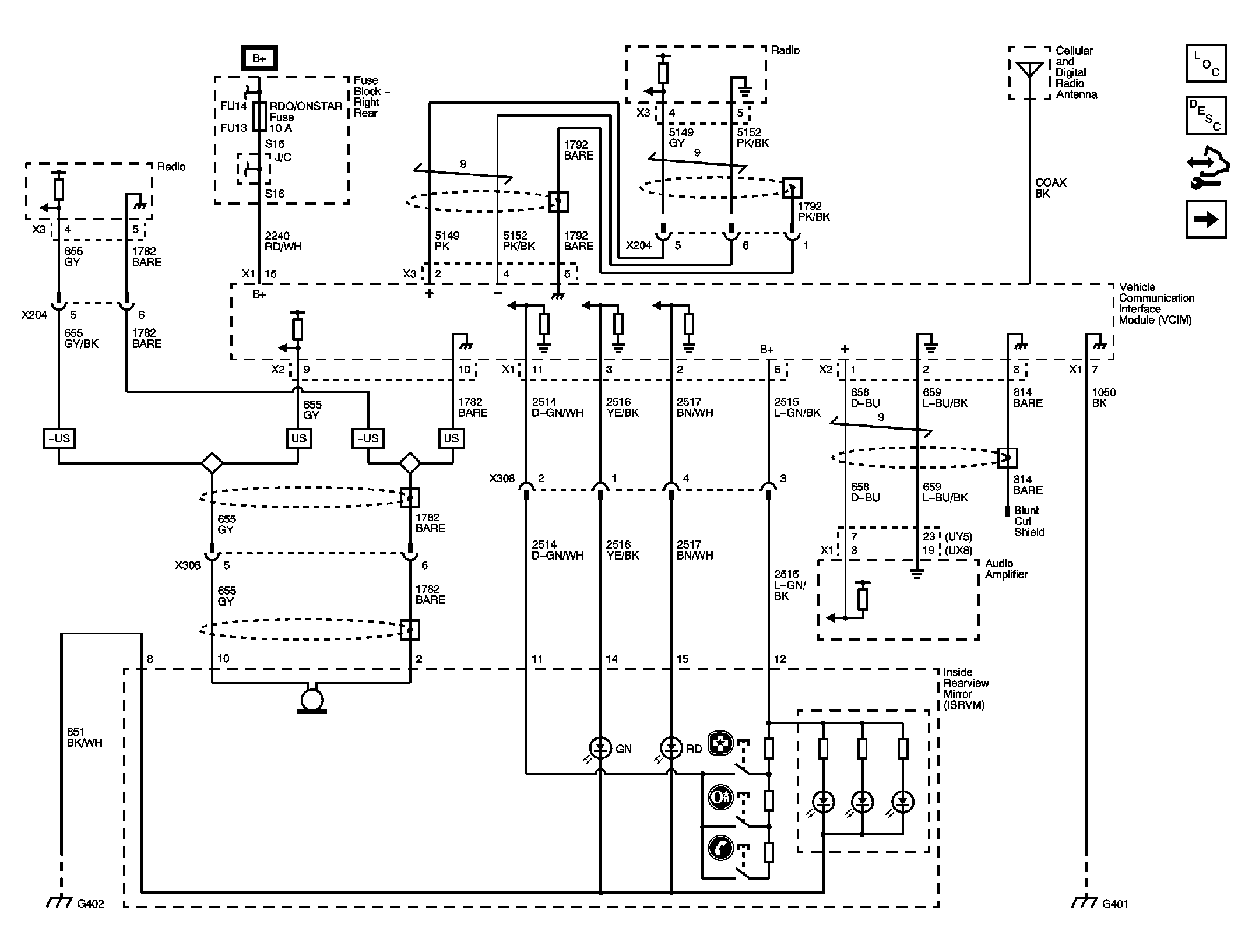

Fig 3: Speakers (UY5) (1 of 3)
Courtesy of GENERAL MOTORS CORP.

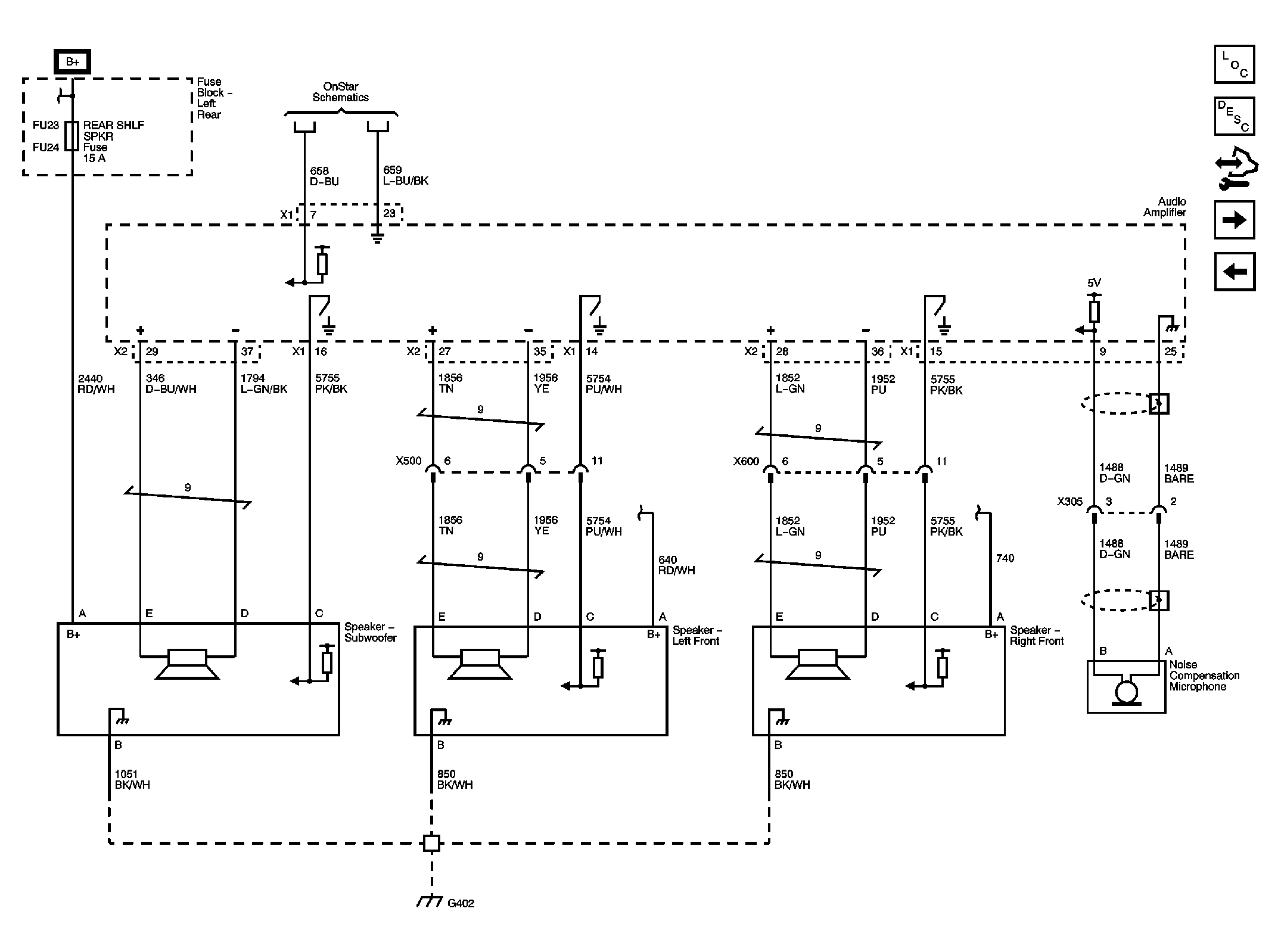

Fig 4: Speakers (UY5) (2 of 3)
Courtesy of GENERAL MOTORS CORP.

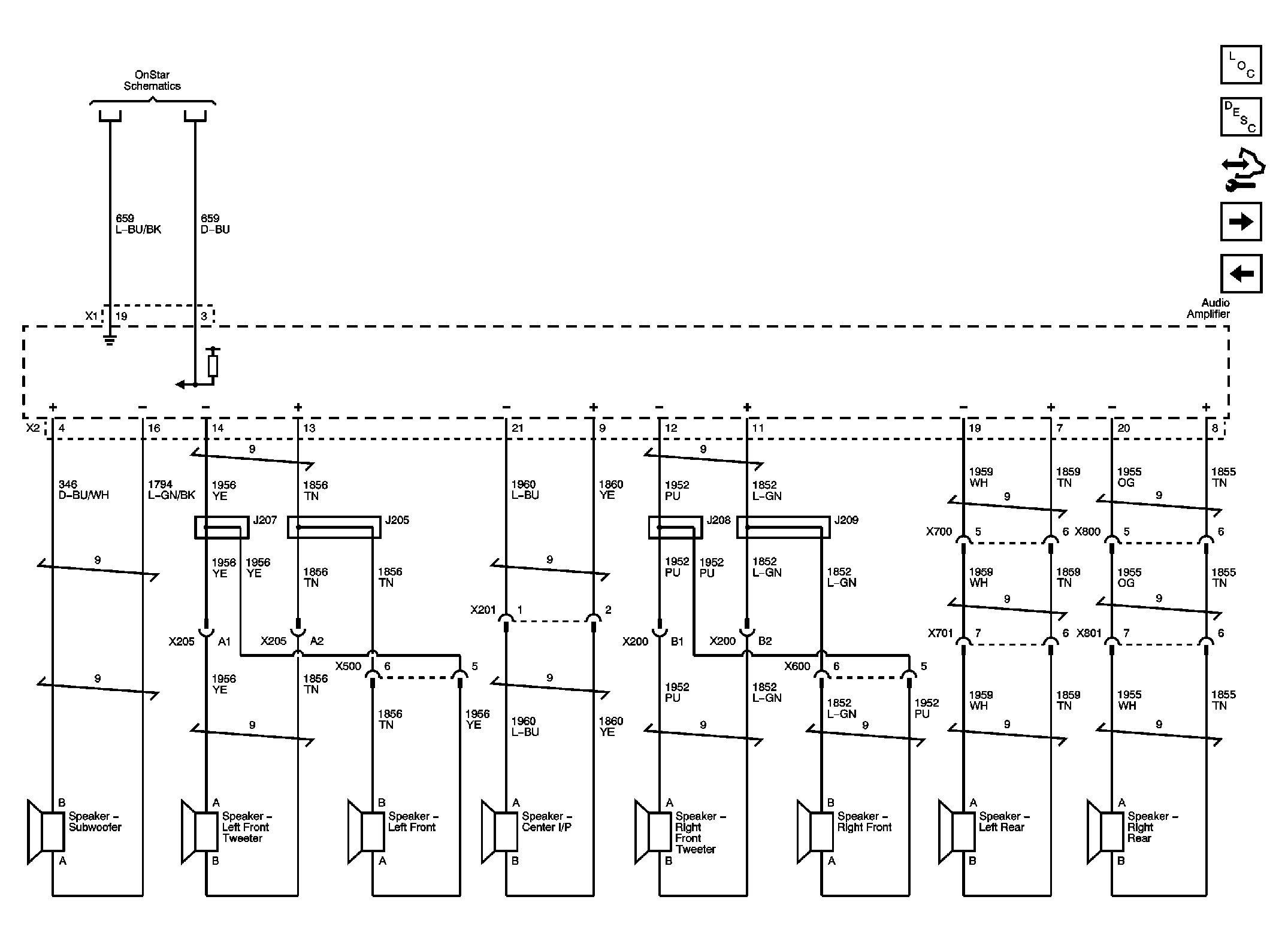

Fig 5: Speakers (UY5) (3 of 3)
Courtesy of GENERAL MOTORS CORP.

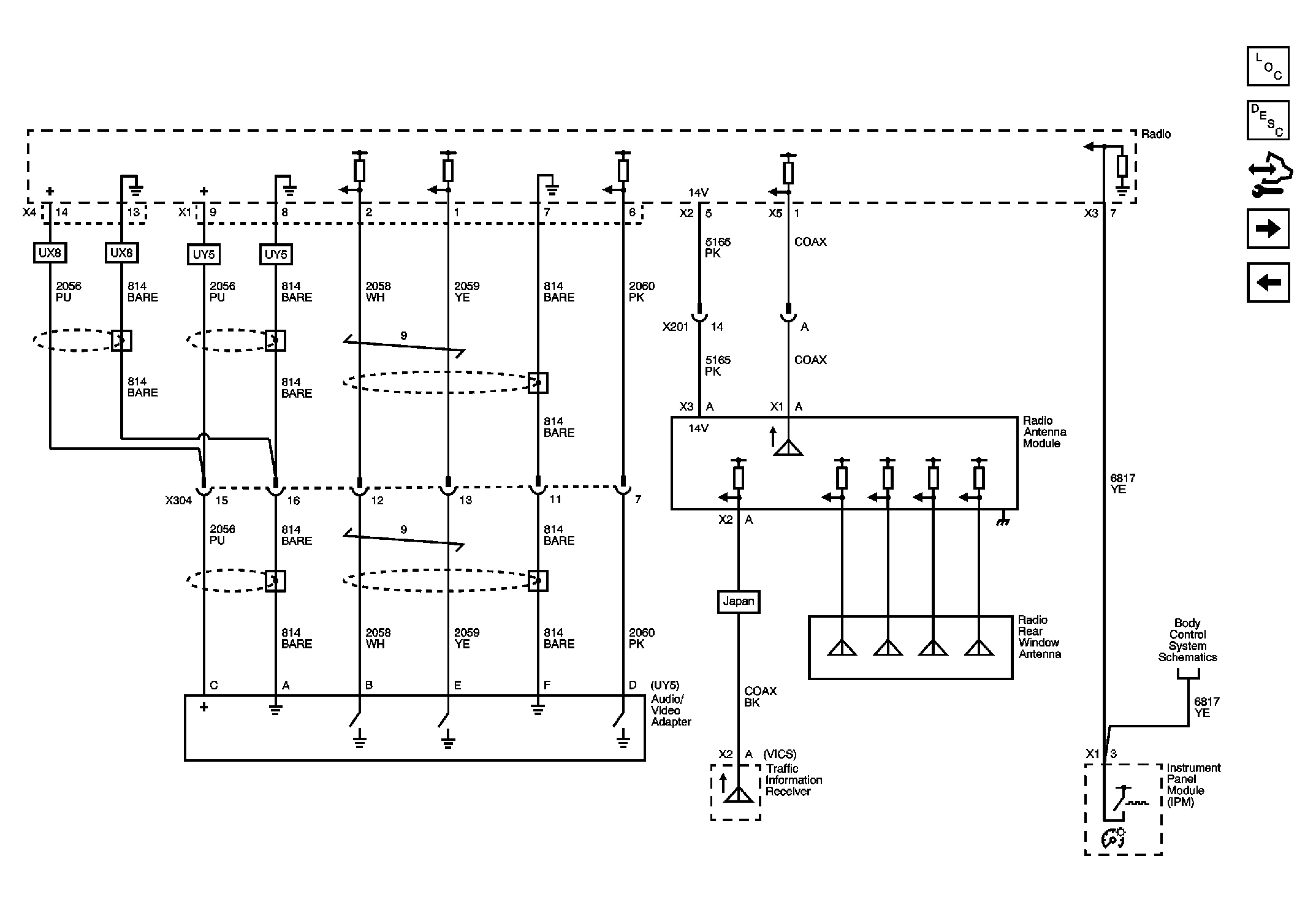

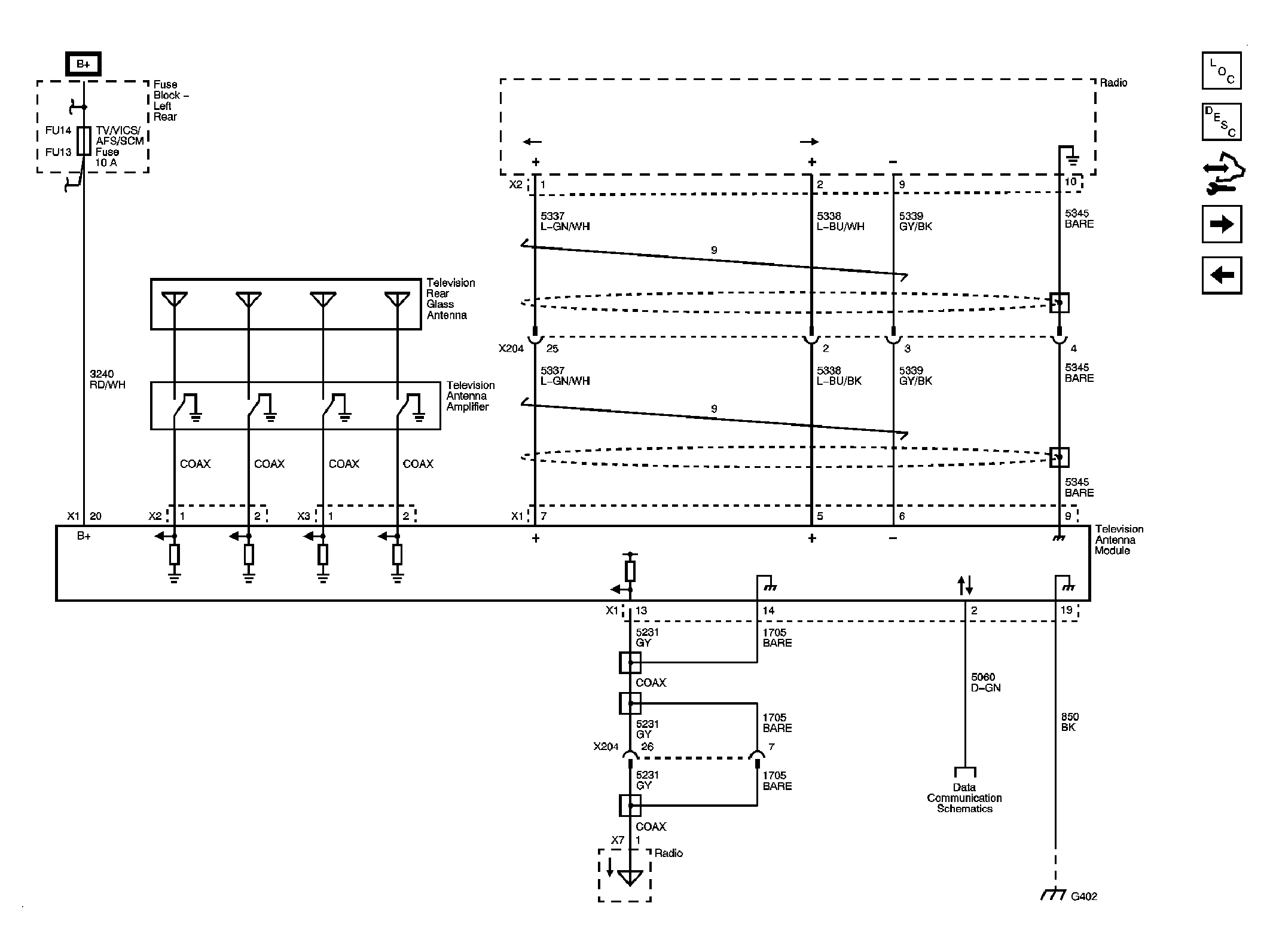

Fig 6: Radio Antennas, Audio/Video Adapter
Courtesy of GENERAL MOTORS CORP.

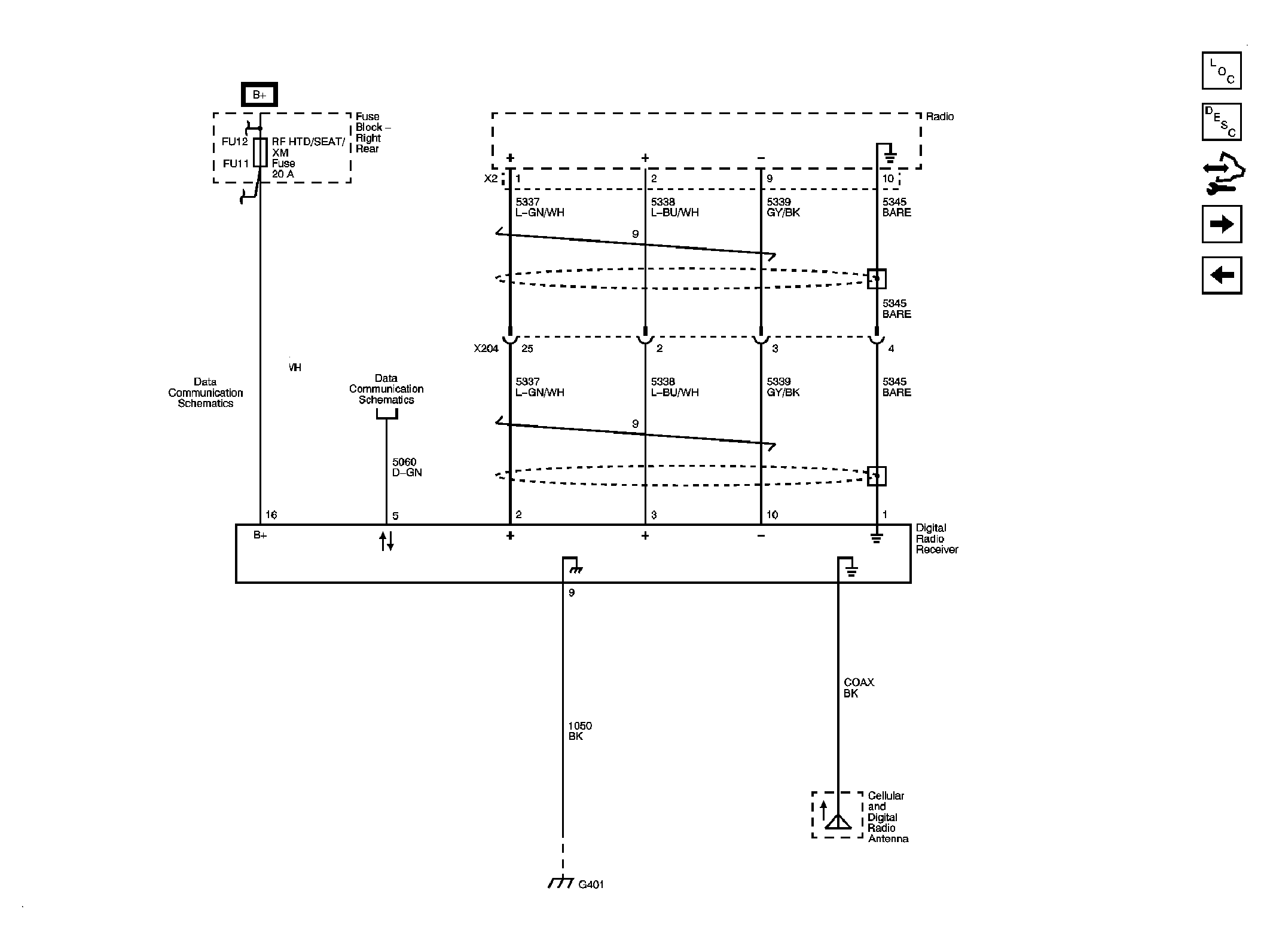

Fig 7: Digital Radio Receiver (U2K)
Courtesy of GENERAL MOTORS CORP.

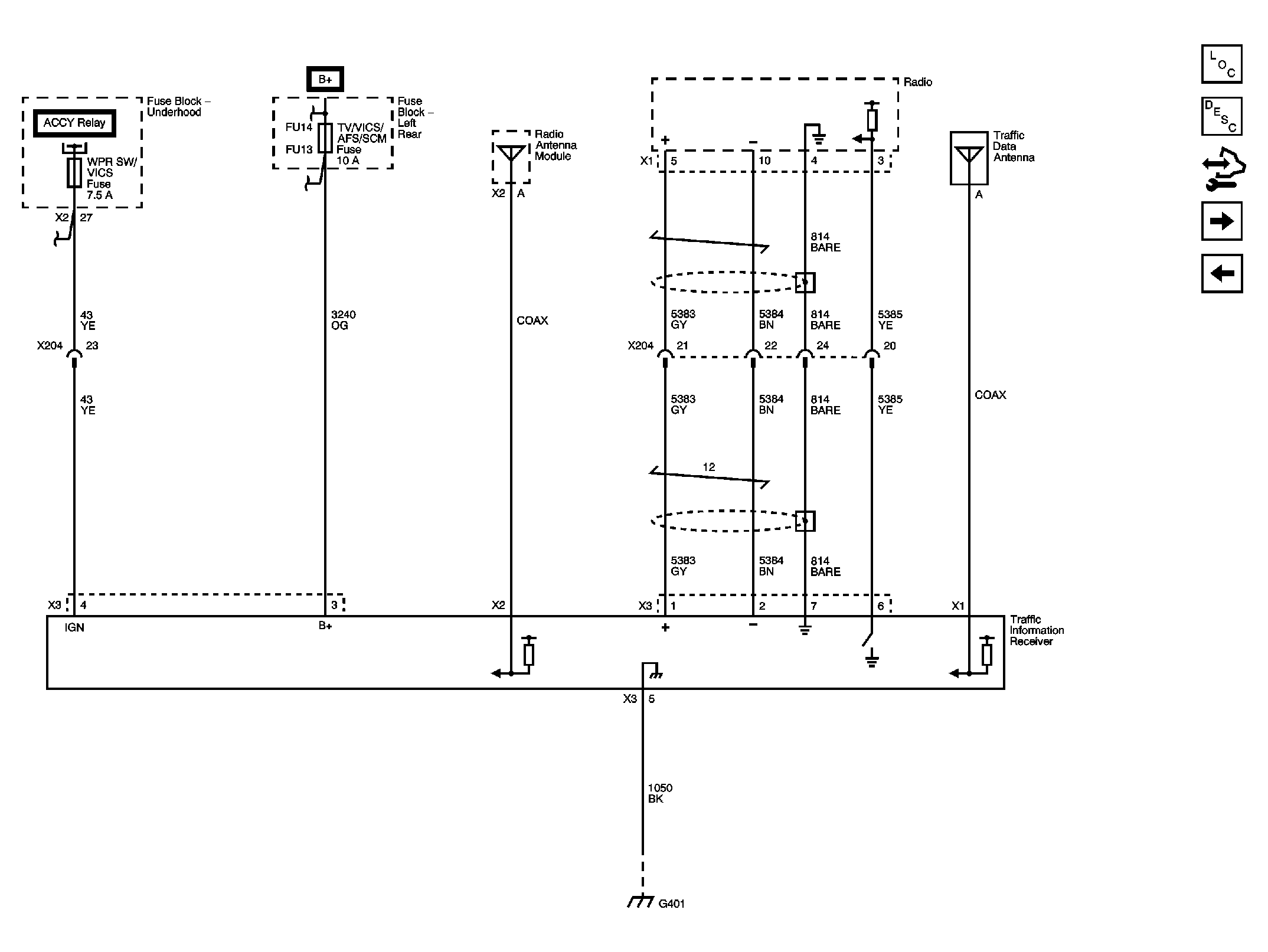

Fig 8: Traffic Information Receiver Module (VICS) - Japan Only
