Memory Seat Control Module Replacement

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

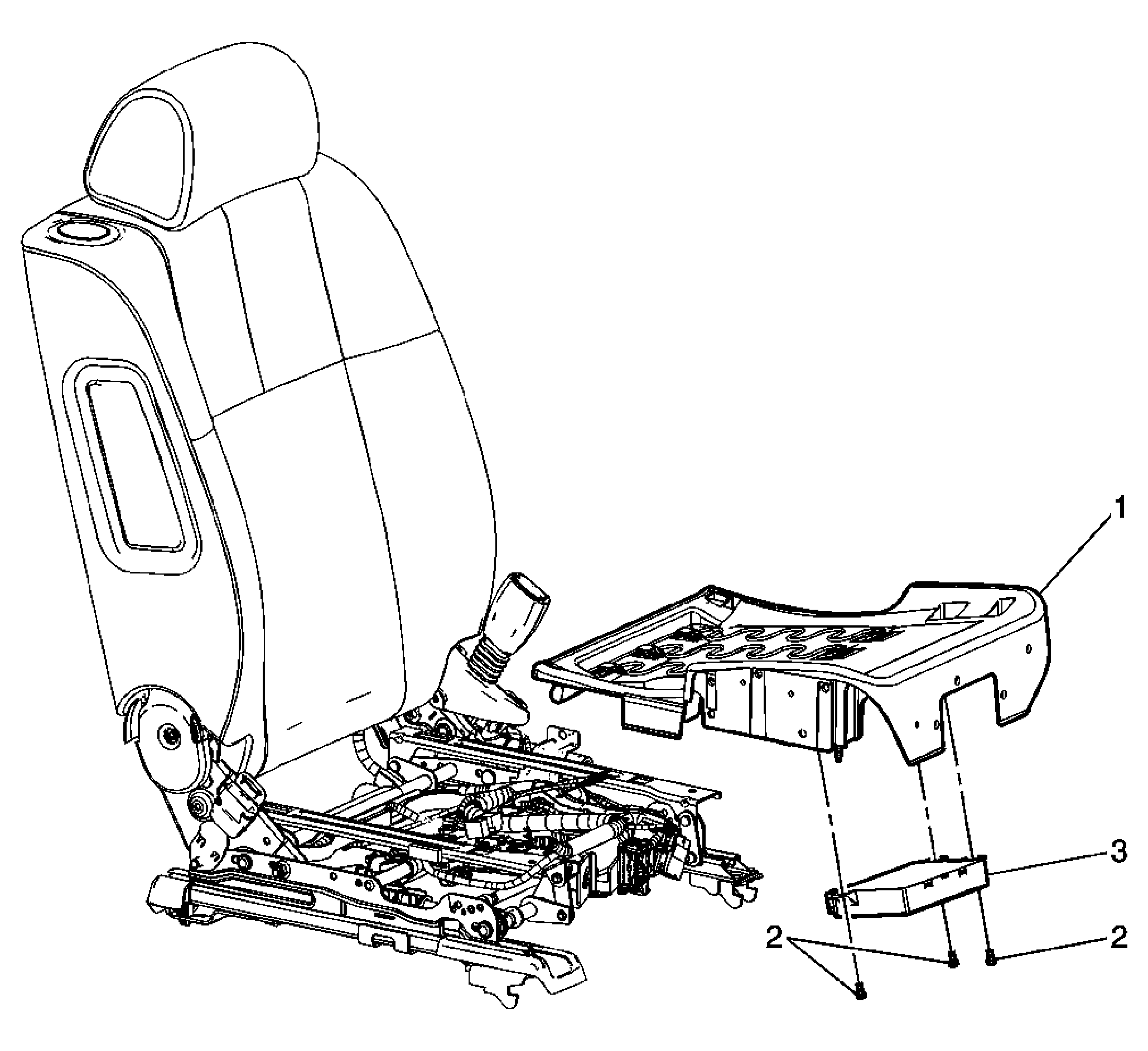

Fig 1: View of Memory Seat Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Bucket Seat Replacement . Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .
1	Seat Cushion Frame Refer to Seat Cushion Frame Replacement .
2	Seat Adjuster Memory Module Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
3	Seat Adjuster Memory Module Tip: Reprogram the memory seat module when replaced. Refer to Control Module References .
