Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

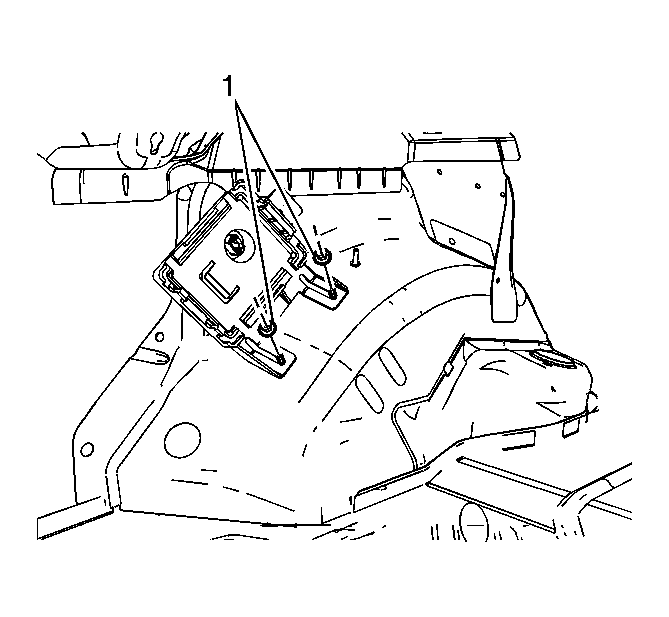

Fig 1: Stability Control Module Bracket & Nuts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

If removed, install the stability control module bracket and the nuts (1).
Tighten: Tighten the nuts to 10 N.m (89 lb in).

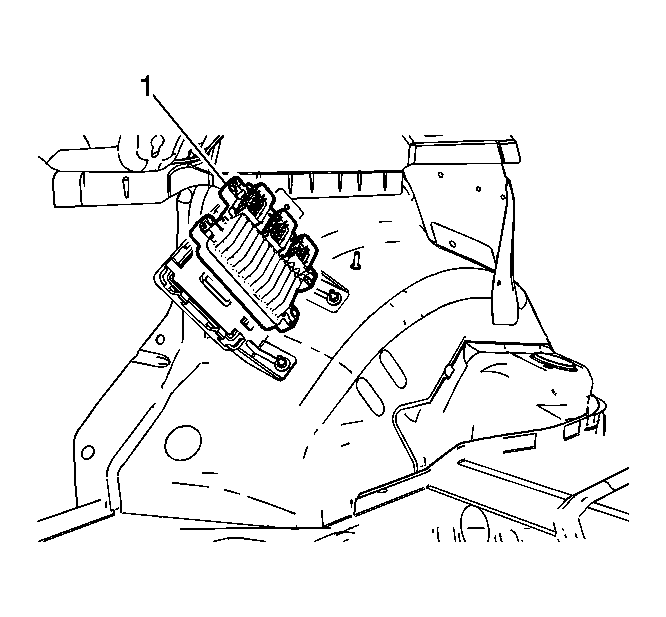

Fig 2: Stability Control Module

Courtesy of GENERAL MOTORS CORP.

Install the stability control module (1) to the bracket.

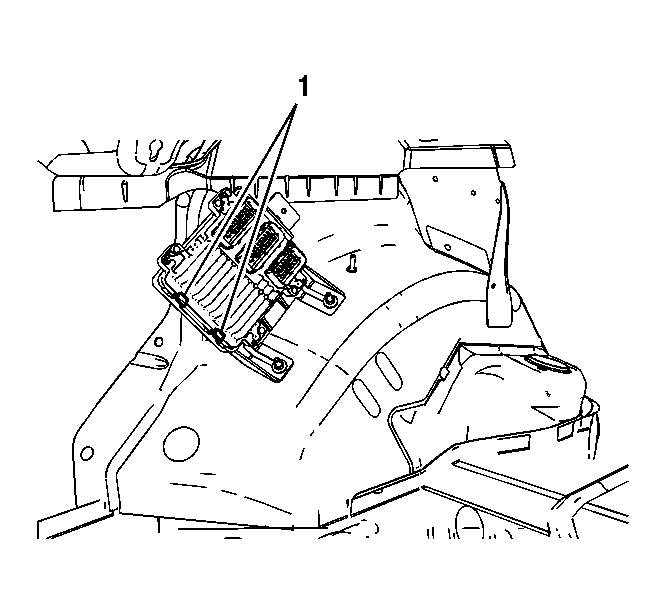

Fig 3: Vehicle Stability Control Module Bracket Locking Tabs

Courtesy of GENERAL MOTORS CORP.

Press the stability control module into the module bracket locking tabs (1).
Connect the stability control module electrical connectors.
Install the left rear compartment side trim panel. Refer to Rear Compartment Trim Panel Replacement .
Program the stability control module. Refer to Control Module References .
Perform the Diagnostic System Check - Vehicle .
