Power Moding Schematics

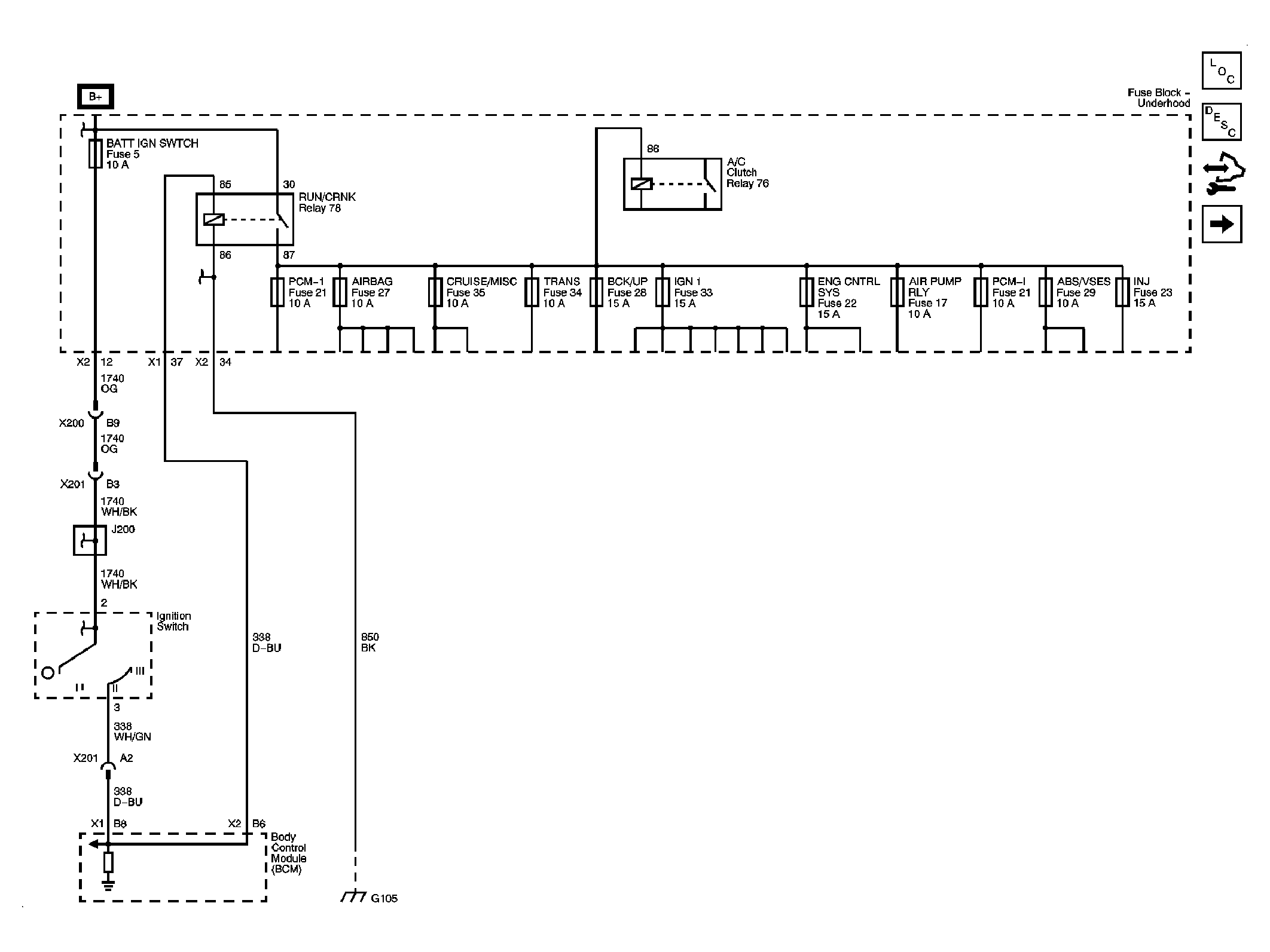

Fig 1: Run/Crank
Courtesy of GENERAL MOTORS CORP.

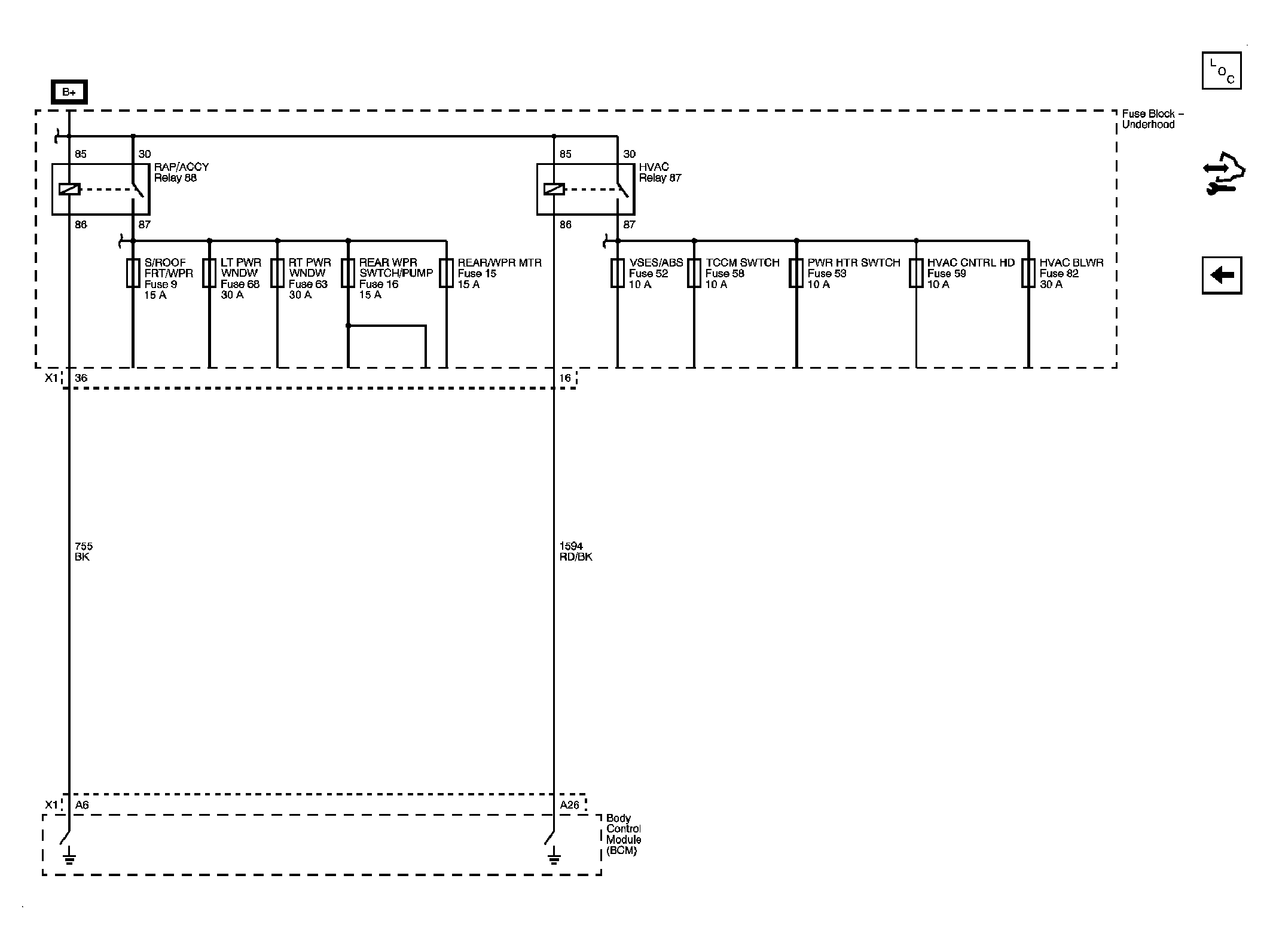

Fig 2: RAP/ACCY and HVAC
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
