Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

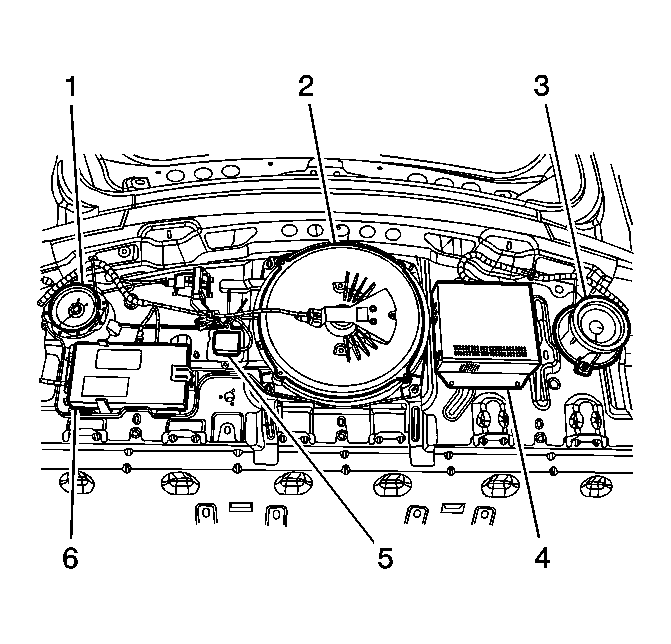

Fig 1: View Of Rear Shelf Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Install the module (6) to the rear carrier.
Connect the electrical connectors.
Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
Reprogram the receiver. Refer to Digital Radio Receiver Setup .
Refer to Control Module References for programming and setup information.
