Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

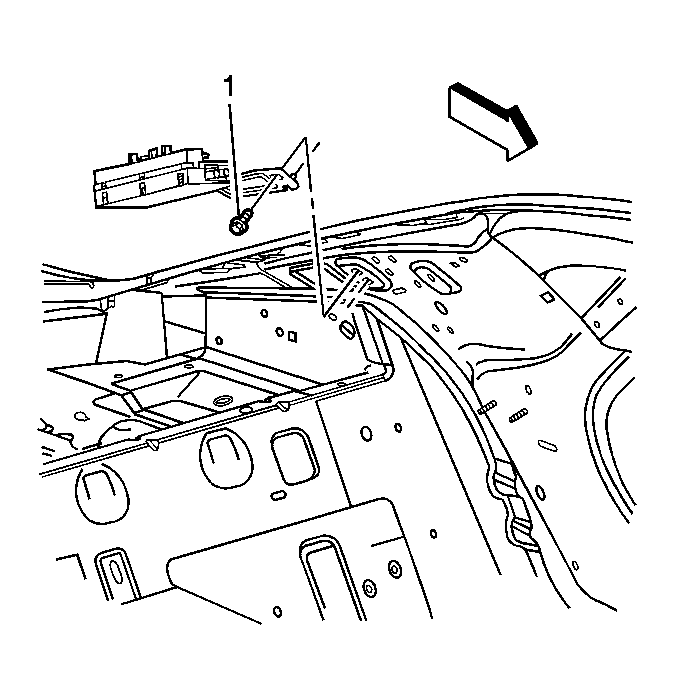

Fig 1: View Of TV Antenna Module

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the bolt (1) securing the antenna module to the vehicle.
Tighten: Tighten the bolts (1) to 9 N.m (80 lb in).
Install the left side sail panel. Refer to Sail Panel Replacement .
