Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

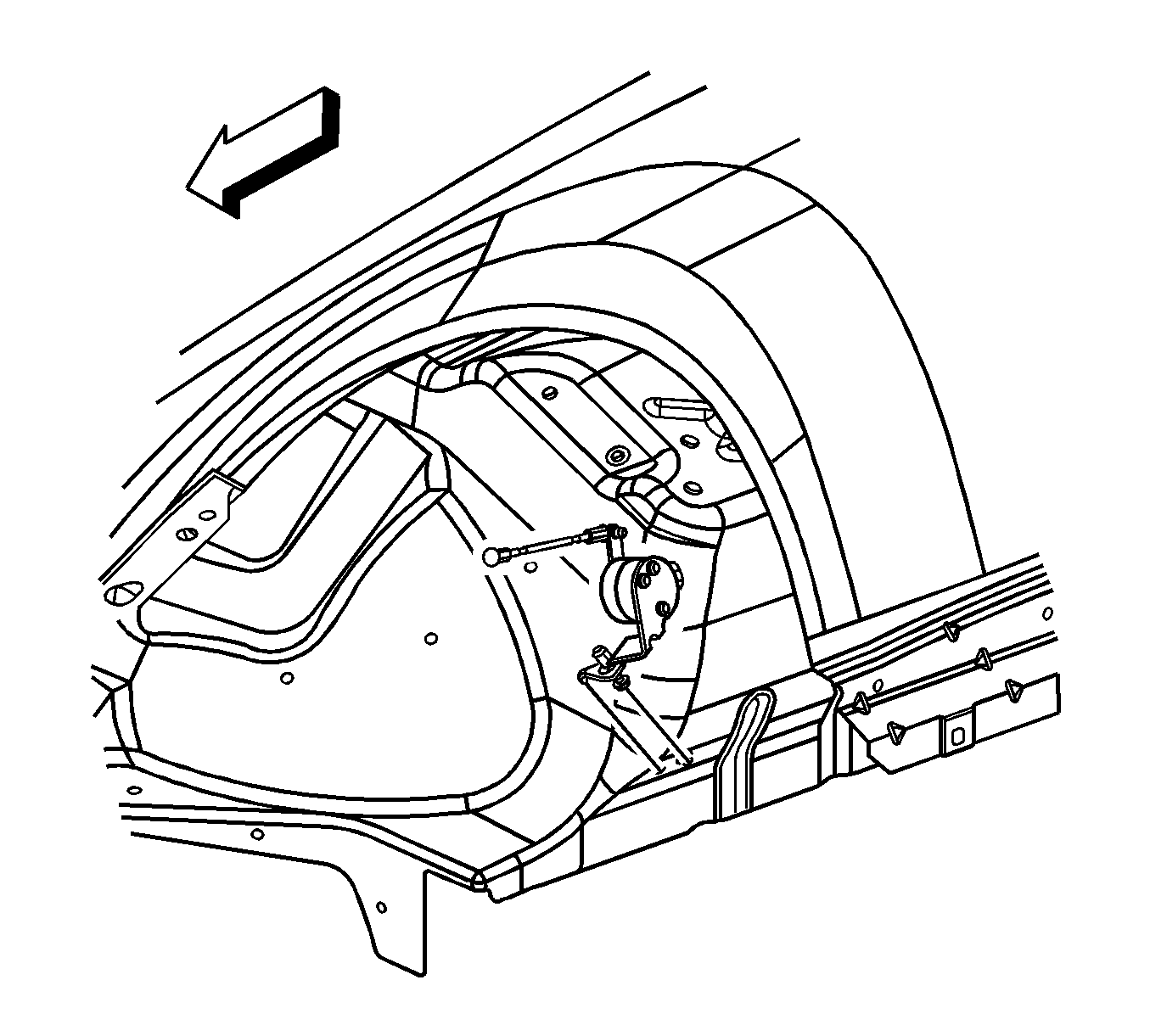

    Fig 1: View Of Front Ride Sensor
    GM1371680Courtesy of GENERAL MOTORS CORP.
  1. Position the sensor to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the front ride sensor retaining nut.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

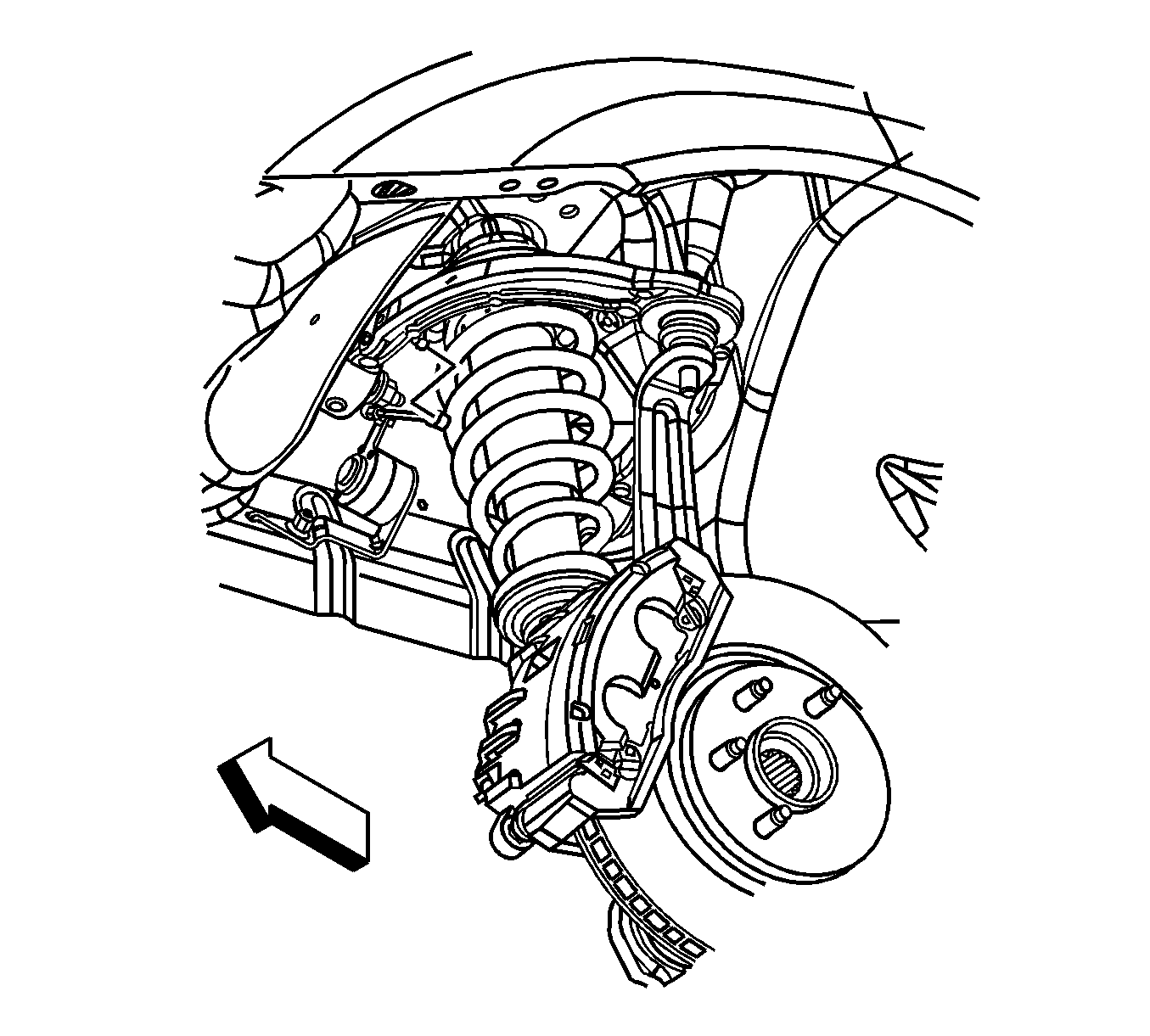

    3. Fig 2: Locating Front Ride Sensor Link
    GM1371682Courtesy of GENERAL MOTORS CORP.
  3. Connect the front ride sensor link to the upper control arm ball stud.
  4. Connect the front ride sensor harness connector.
  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
