Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove any dirt, grease, or other impurities from the mounting surface.

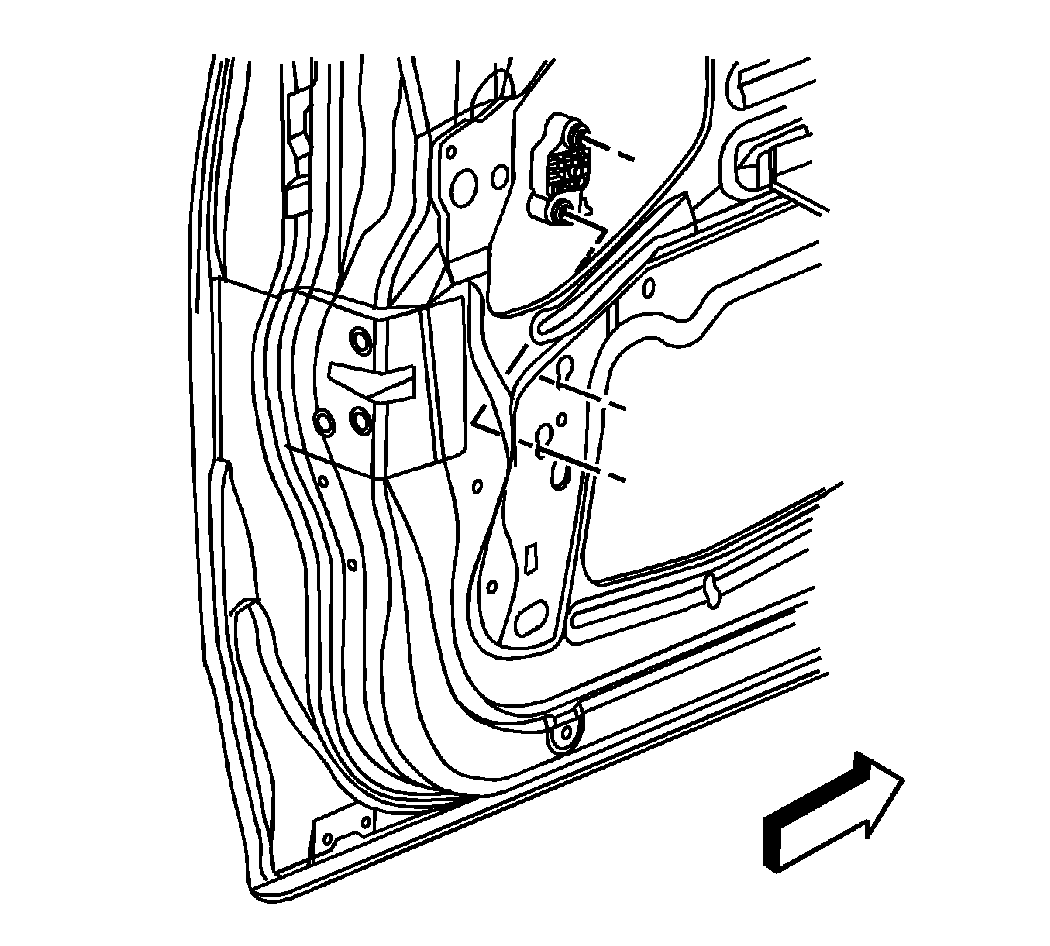

    2. Fig 1: View Of Inflatable Restraint Side Impact Sensor
    GM1348287Courtesy of GENERAL MOTORS CORP.
  2. Position the side impact sensor horizontally to the door.
  3. Connect the electrical connector to the side impact sensor.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the screws which retain the side impact sensor to the door.

    Tighten:  Tighten the screws to 9 N.m (79 lb in).

  5. Fully seat the water deflector to the door.
  6. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
  7. Enable the SIR system. Refer to SIR Disabling and Enabling .
