Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of EBCM Solenoid Plate
    GM1384686Courtesy of GENERAL MOTORS CORP.
  1. Position the NEW solenoid plate on the BPMV.
  2. Fig 2: View Of EBCM O-Rings
    GM1384681Courtesy of GENERAL MOTORS CORP.
  3. Install the new O-rings on the EBCM.

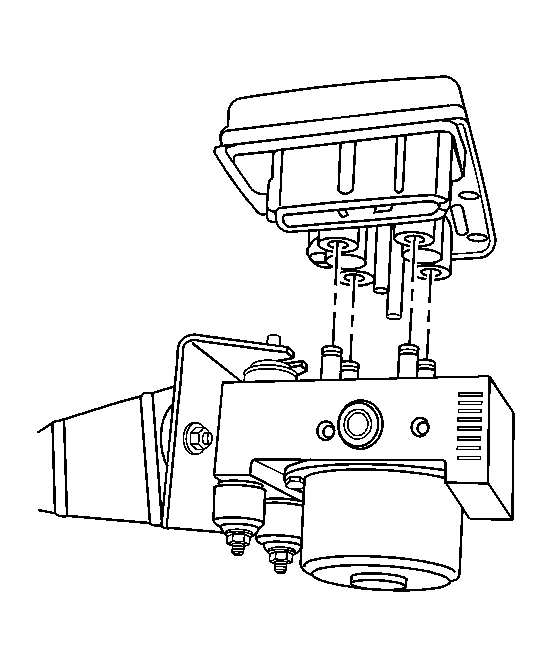

  4. Fig 3: View Of BPMV And EBCM
    GM1394252Courtesy of GENERAL MOTORS CORP.
  5. Install the BPMV to the EBCM.
  6. Fig 4: View Of Collars Between EBCM & BPMV
    GM1384680Courtesy of GENERAL MOTORS CORP.
  7. Install the NEW collars in the BPMV and the EBCM.
  8. Fig 5: View Of EBCM Mounting Screw
    GM1384682Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
    IMPORTANT: When installing the mounting screws for the EBCM to the BPMV, always finger tighten the screws before torquing to the proper torque specification.
  9. Install the mounting screws for the EBCM.

    Tighten:  Tighten the mounting screws to 5 N.m (44 lb in).

  10. Fig 6: View Of EBCM
    GM1398490Courtesy of GENERAL MOTORS CORP.
  11. Install the ABS module to the vehicle.
  12. Fig 7: View Of EBCM Mounting Nuts
    GM1398471Courtesy of GENERAL MOTORS CORP.
  13. Install mounting nuts for the ABS module.

    Tighten:  Tighten the mounting nuts to 9 N.m (80 lb in).

  14. Remove the rubber plugs from the brake pipes.
  15. Remove the shipping plugs from the EBCM assembly.
  16. Fig 8: View Of Brake Pipes At EBCM Assembly
    GM1398479Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When installing the brake pipe fitting, always finger tighten the fitting before torquing to the proper torque specification.
  17. Install the brakes pipes to the EBCM assembly.

    Tighten:  Tighten all the brake pipe fittings to 19 N.m (14 lb ft).

  18. Fig 9: View Of Master Cylinder To EBCM Brake Pipe
    GM1398461Courtesy of GENERAL MOTORS CORP.
  19. Remove the rubber plugs from the master cylinder.
  20. Install the brake pipes from the EBCM assembly to the master cylinder.

    Tighten:  Tighten all the brake pipe fittings to 19 N.m (14 lb ft).

  21. Fig 10: View Of EBCM Electrical Connector
    GM1398492Courtesy of GENERAL MOTORS CORP.
  22. Remove the electrical connector from the behind the brake booster.
  23. Fig 11: View Of EBCM Electrical Connector
    GM1398496Courtesy of GENERAL MOTORS CORP.
  24. Install the electrical connector.
  25. Fig 12: View Of Rear Brake Pipe & Retainers
    GM1398487Courtesy of GENERAL MOTORS CORP.
  26. Install the rear brake pipe to the retainer at the cowl.
  27. Fig 13: View Of Paper Towels Between EBCM & Inner Fender
    GM1398485Courtesy of GENERAL MOTORS CORP.
  28. Remove the paper and or shop towels from between the EBCM assembly and the inner fender.
  29. Bleed the ABS brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
  30. Refer to Control Module References for replacement and setup information.
