Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

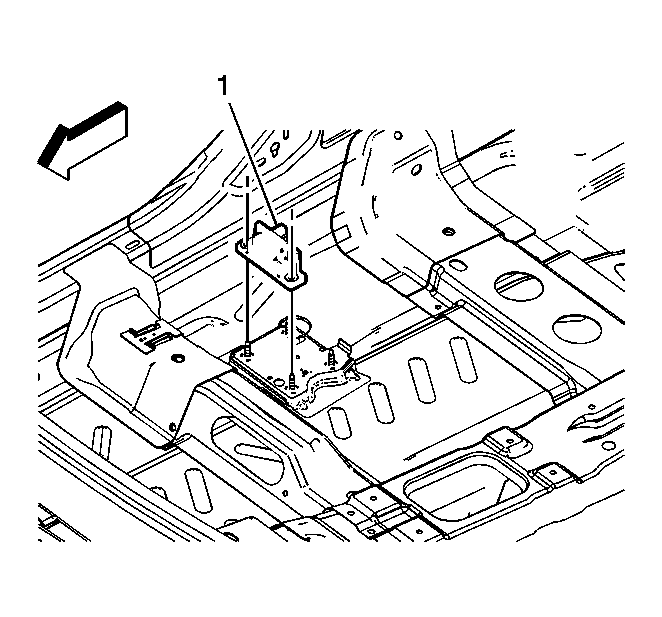

Fig 1: Yaw Rate Sensor & Lateral Accelerometer

Courtesy of GENERAL MOTORS CORP.

Install the yaw rate sensor and lateral accelerometer (1).

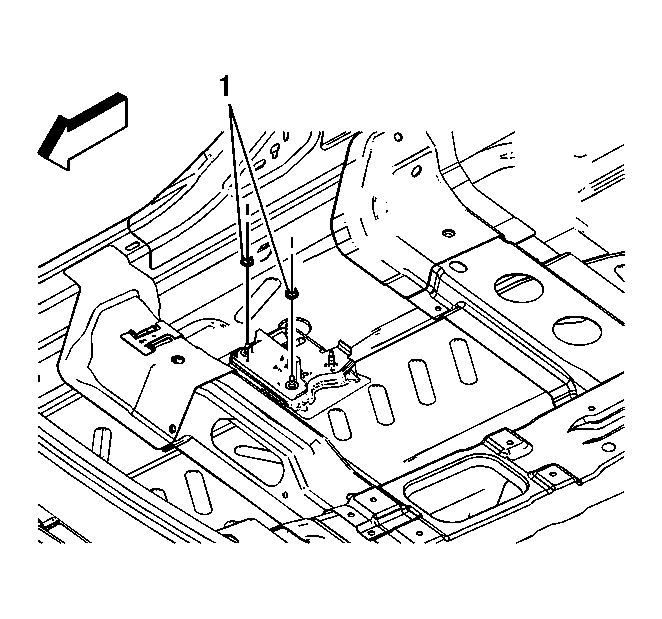

Fig 2: Yaw Rate Sensor & Lateral Accelerometer Nuts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the yaw rate sensor and lateral accelerometer nuts (1).
Tighten: Tighten the nuts to 9 N.m (80 lb in).
Connect the yaw rate sensor and lateral accelerometer electrical connector.
Position the carpet to the floor.
Install the RF seat. Refer to Bucket Seat Replacement .
Install a scan tool.
Using the special functions menu on the scan tool, reset the yaw rate sensor.
Perform the Diagnostic System Check - Vehicle .
