Front of Vehicle/Engine Compartment Component Views

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

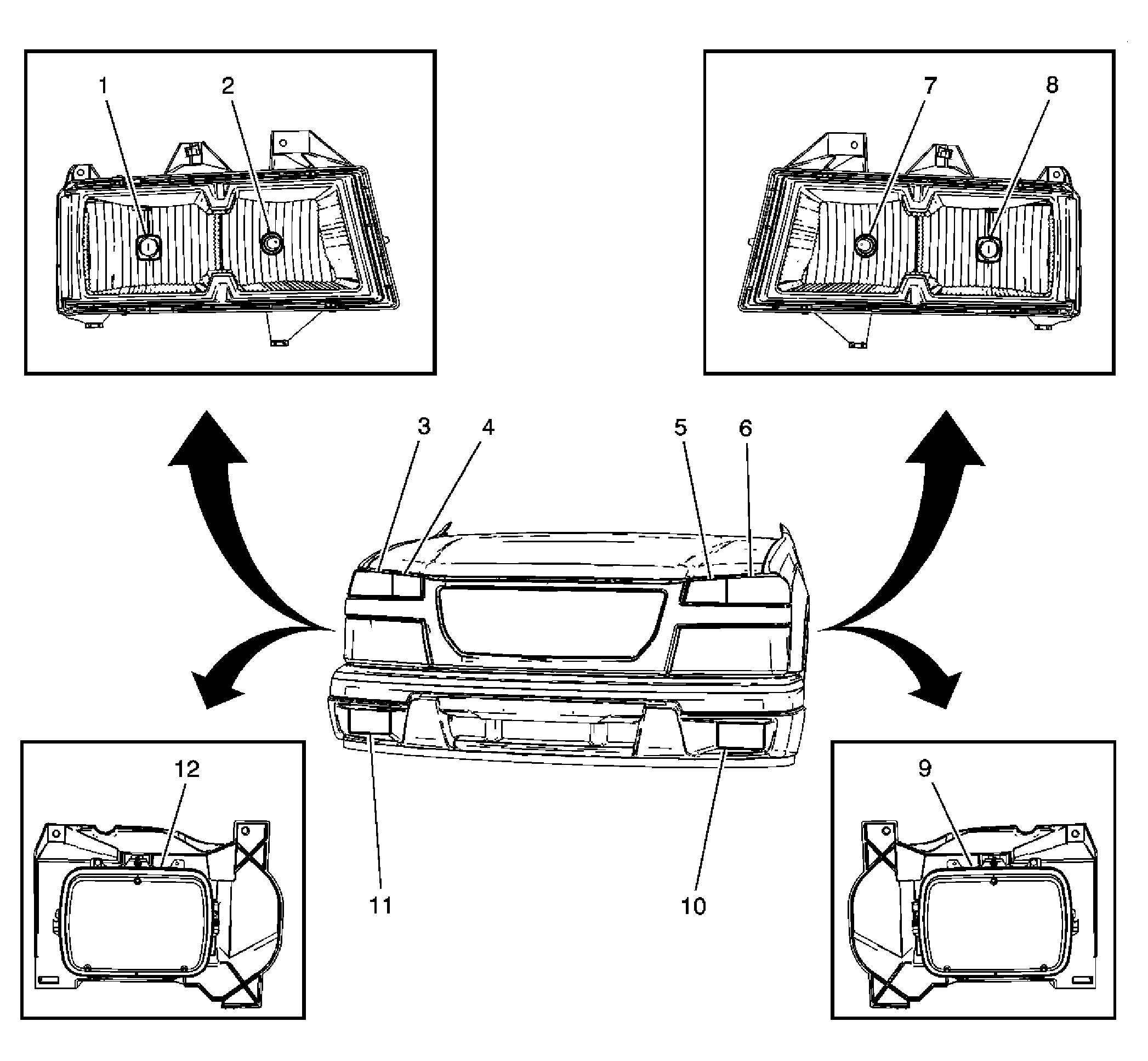

Fig 1: Identifying Front Of Vehicle Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right (TT5)
2	Headlamp - High Beam - Right (TT5)
3	Park/Turn Signal Lamp (DRL) - Right Front
4	Park Lamp - Right Front
5	Park Lamp - Left Front
6	Park/Turn Signal Lamp - Left Front
7	Headlamp - High Beam - Left (TT5)
8	Headlamp - Low Beam - Left (TT5)
9	Headlamp - Left Hand (-TT5)
10	Fog Lamp - Left Front (T96)
11	Fog Lamp - Right Front (T96)
12	Headlamp - Right Hand (-TT5)

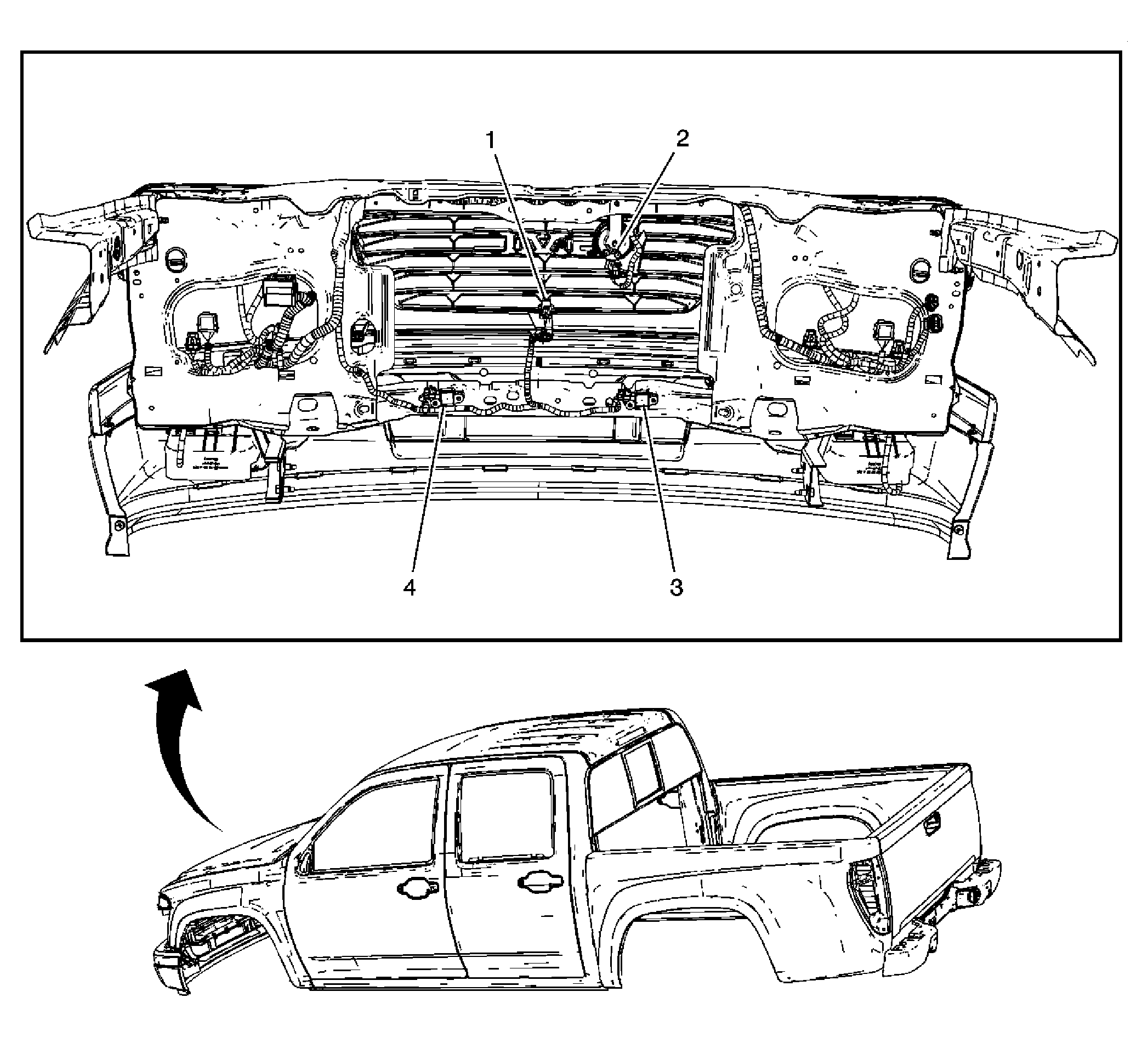

Fig 2: Identifying Front of the Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature (AAT) Sensor (DF8)
2	Horn Assembly
3	Inflatable Restraint Front End Sensor - Left
4	Inflatable Restraint Front End Sensor - Right

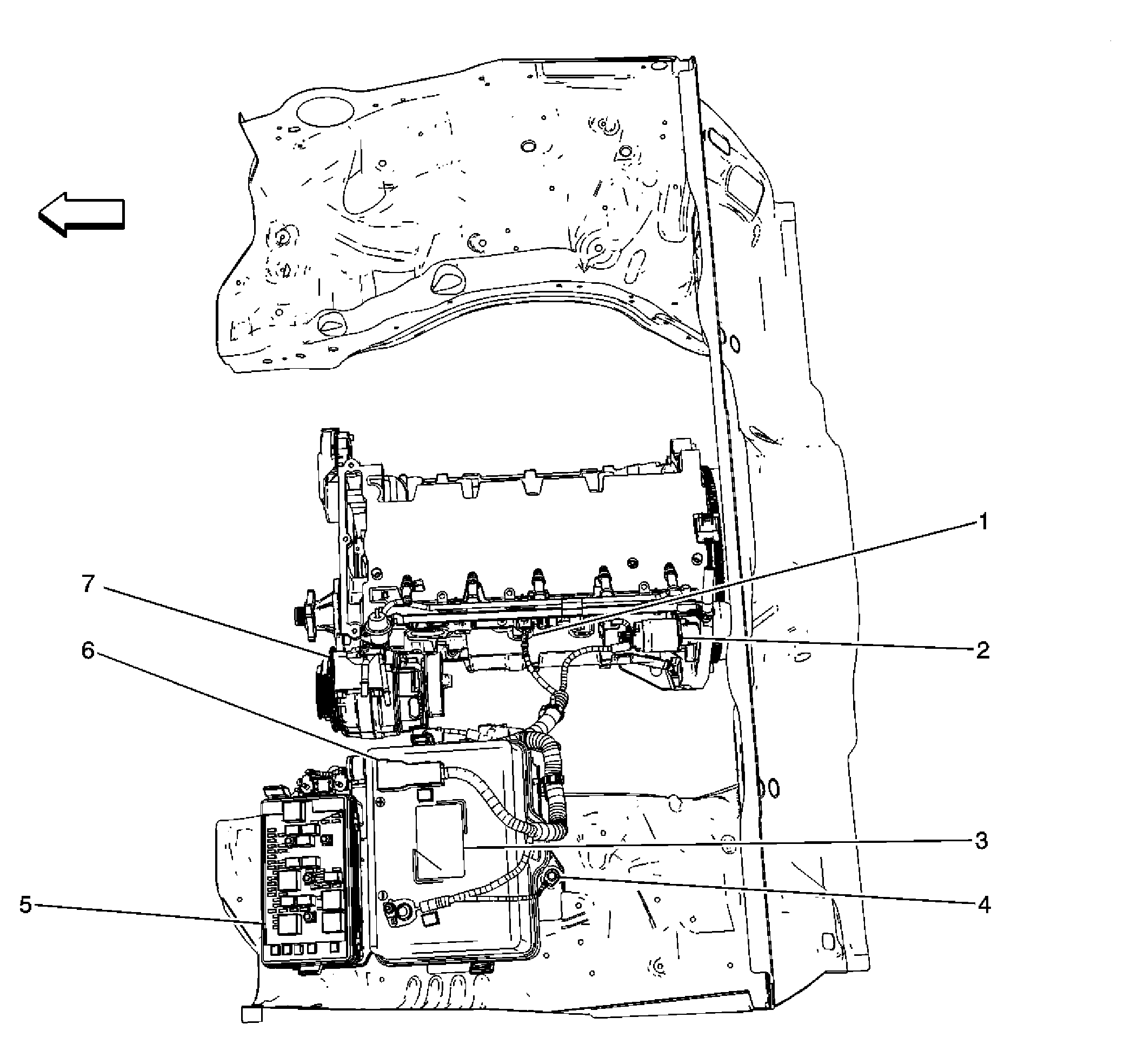

Fig 3: Identifying Left Side of the Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	Starter Solenoid
3	Battery
4	G100
5	Fuse Block - Underhood
6	Battery Positive Terminal
7	Generator

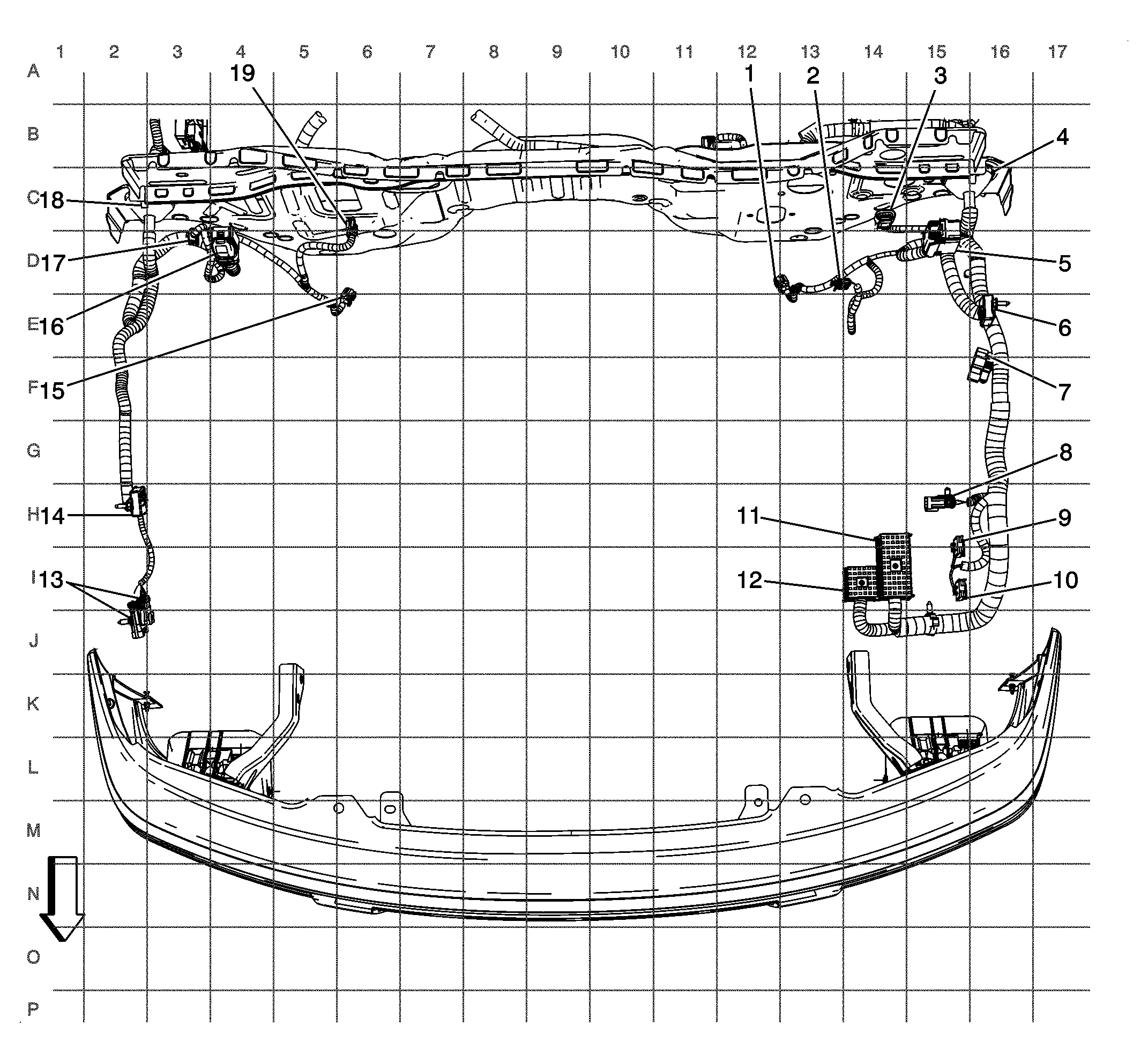

Fig 4: Identifying Left & Right Sides Of Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - Left Front
2	Brake Fluid Level Switch
3	Windshield Wiper Motor
4	Pass-through Grommet
5	Electronic Brake Control Module (EBCM)
6	JX105
7	X102
8	X105 (4WD)/X106 (2WD)
9	Fuse Block - Underhood X4
10	Fuse Block - Underhood X5
11	Fuse Block - Underhood X7
12	Fuse Block - Underhood X6
13	X103 and X104
14	JX106
15	Wheel Speed Sensor (WSS) - Right Front
16	Engine Control Module (ECM) X1
17	Windshield Washer Fluid Pump
18	Pass-through Grommet
19	A/C Refrigerant Pressure Sensor

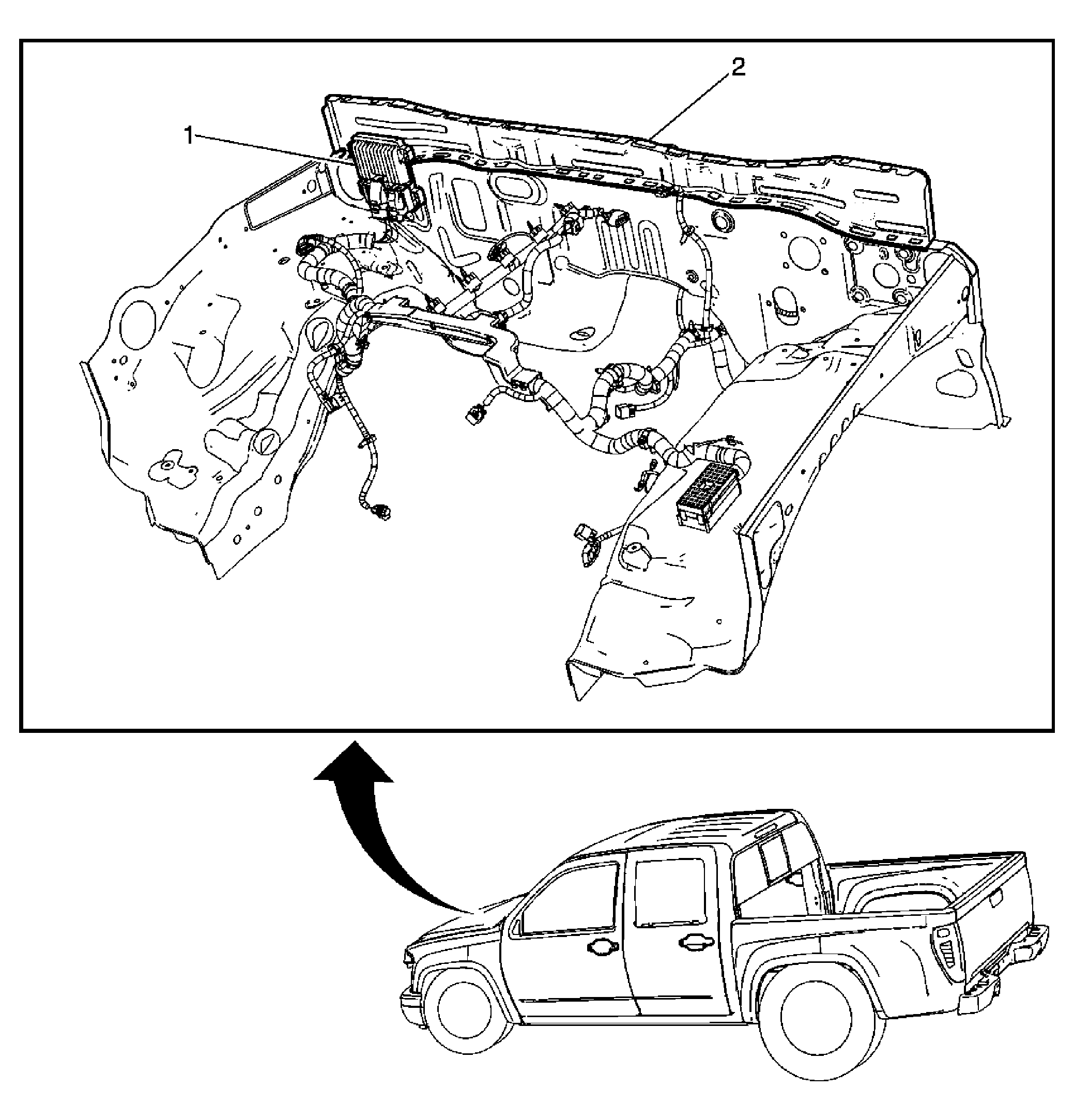

Fig 5: Identifying Rear Of Engine Compartment Components - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Control Module (ECM)
2	Front Plenum Panel

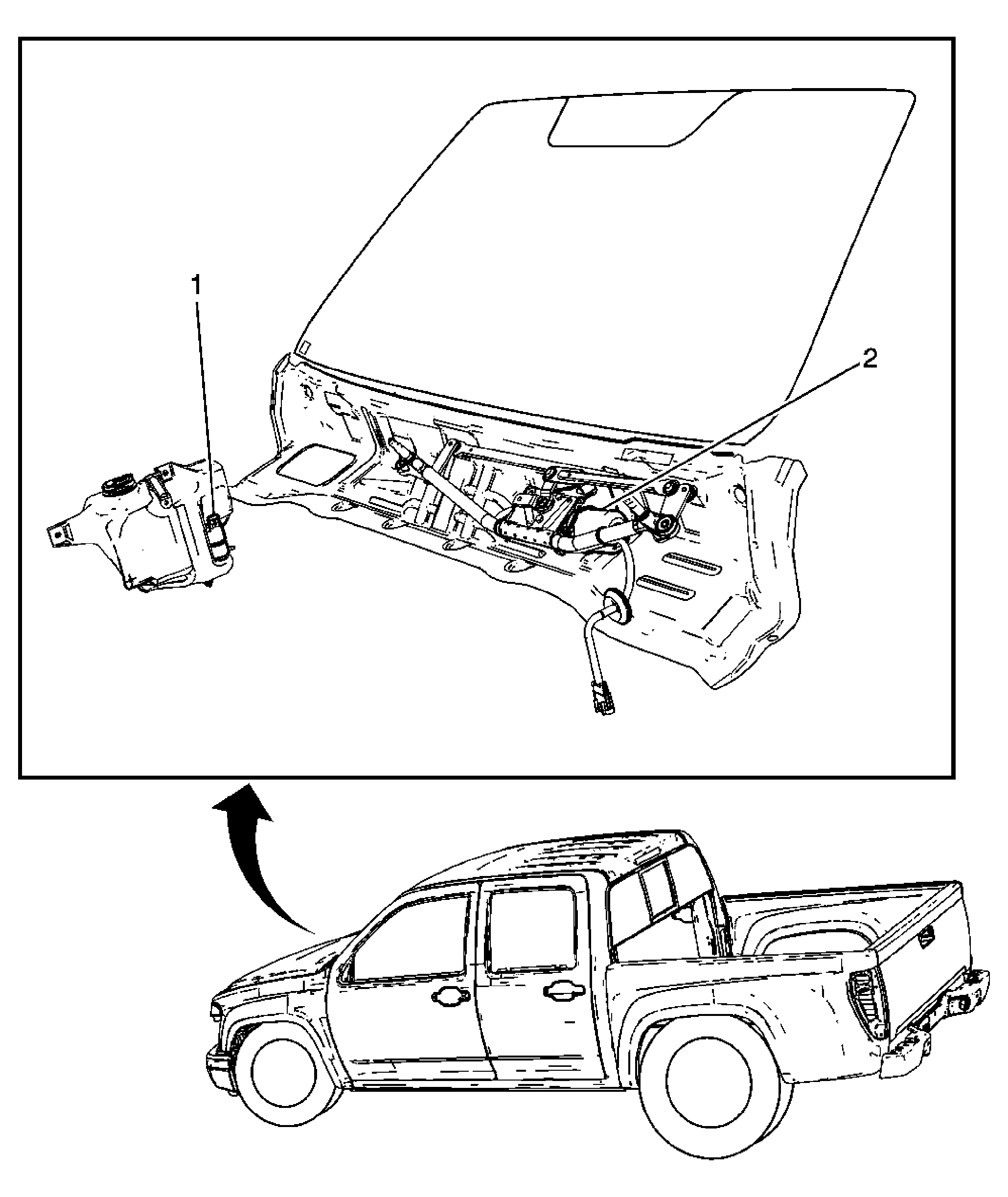

Fig 6: Identifying Rear Of Engine Compartment Components - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Windshield Wiper Motor
