Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

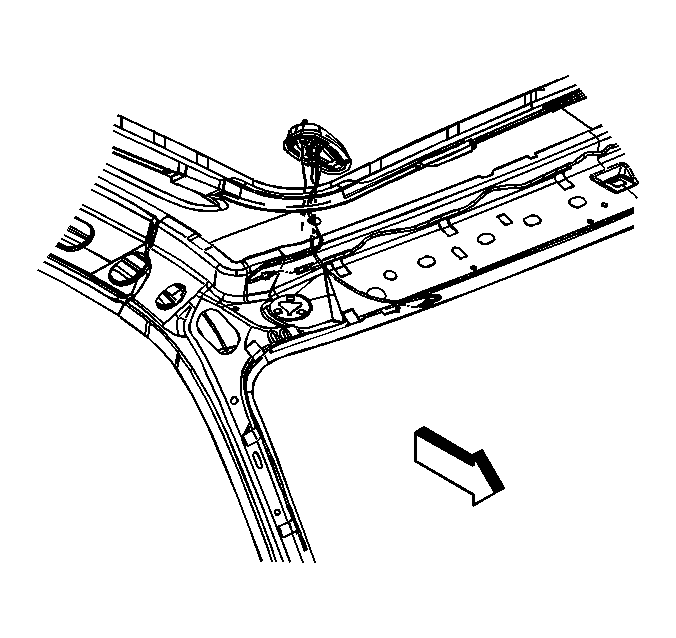

    Fig 1: View Of Antenna Base & Cables
    GM853340Courtesy of GENERAL MOTORS CORP.
  1. Place the antenna assembly on the roof opening.
    2. NOTE: Refer to Fastener Notice .
  2. Tighten the retaining nut.

    Tighten:  Tighten the nut to 6 N.m (53 lb in).

  3. Connect the antenna cables.
  4. Install the headliner. Refer to Headlining Trim Panel Replacement (Sedan) .
