Brake Fluid Level Switch

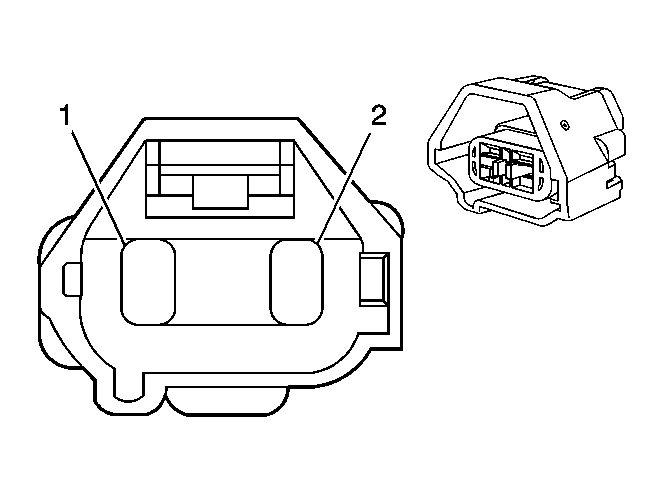

Fig 1: Brake Fluid Level Switch Connector End View
GM1567081Courtesy of GENERAL MOTORS CORP.
Brake Fluid Level Switch

Pin Wire Circuit Function
1 0.5 BK 850 Ground (LHD)
0.5 BK 2050 Ground (RHD)
2 0.35 PK 849 Brake Fluid Level Sensor Signal
Connector Part Information
  • OEM: 4F5288
  • Service: 15201888
  • Description: 2-Way F 2.3 II Series, Sealed (GY)
Terminal Part Information
  • Terminal/Tray: 8100-0460/6
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
