Cruise Control Release Switch

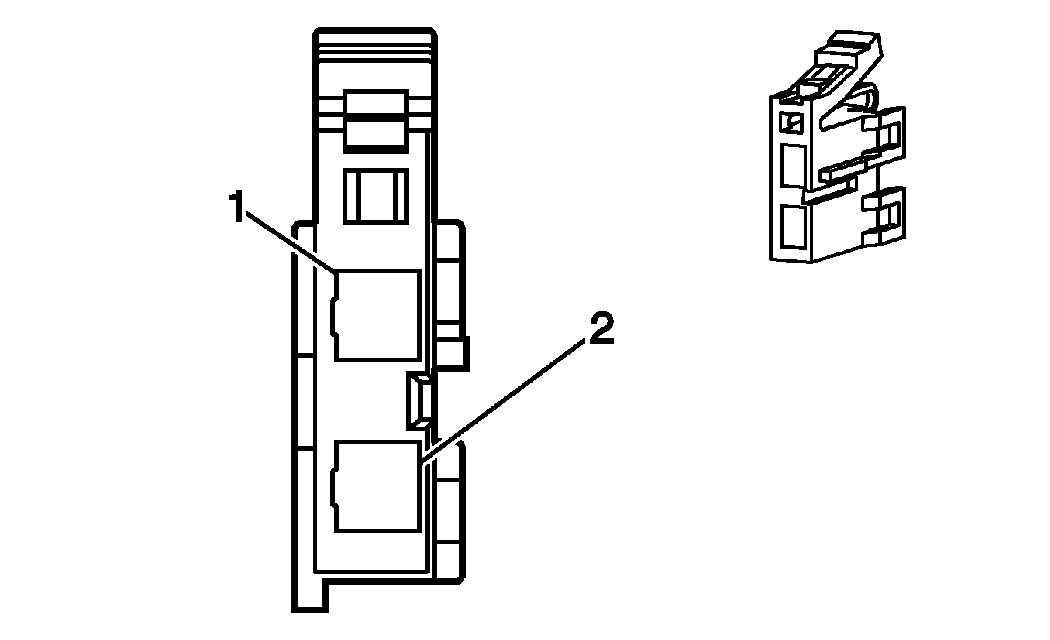

Fig 1: Cruise Release Switch Connector End View
GM1334478Courtesy of GENERAL MOTORS CORP.
Cruise Control Release Switch

Pin Wire Circuit Function
1 0.35 PK 339 Ignition Voltage
2 0.35 PU 420 Cruise Control Release Signal
Connector Part Information
  • OEM: 7123-6024-40
  • Service: 80946651
  • Description: 2-Way F 58 M-Type (GY)
Terminal Part Information
  • Terminal/Tray: 7116-2875/10
  • Core/Insulation Crimp: E/B
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
