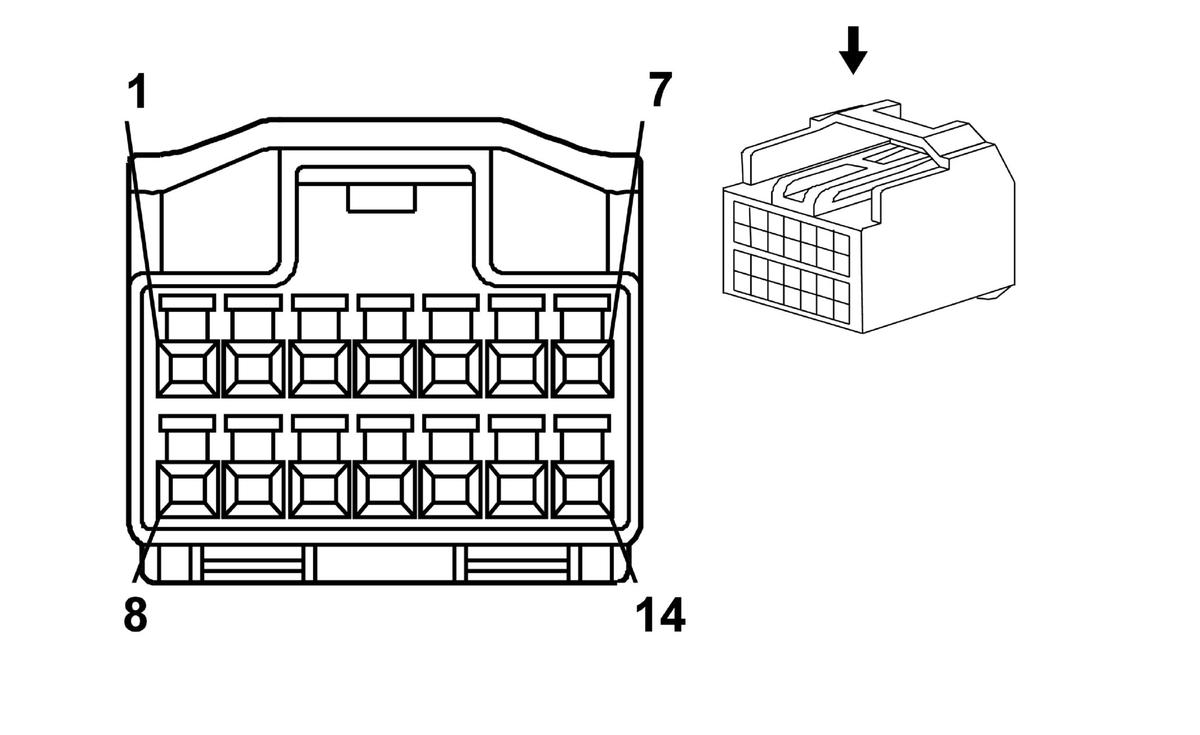

Door Lock/Window Switch - Driver X2
Courtesy of GENERAL MOTORS CORP. Door Lock/Window Switch - Driver X2
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-BU |
1307 |
Power Window Master Switch Lockout Signal |
| 2 |
0.35 BN |
9 |
Park Lamp Control |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 PU |
171 |
Power Window Master Switch Right Rear Down Signal |
| 5 |
0.35 L-GN |
170 |
Power Window Master Switch Right Rear Up Signal |
| 6 |
0.35 D-BU |
245 |
Passenger Door Lock Switch Unlock Control |
| 7 |
0.35 L-BU |
244 |
Passenger Door Lock Switch Lock Control |
| 8 |
0.35 L-BU |
166 |
Power Window Master Switch Right Front Up Signal |
| 9 |
0.35 TN |
167 |
Power Window Master Switch Right Front Down Signal |
| 10 |
- |
- |
Not Used |
| 11 |
0.35 PU |
169 |
Power Window Master Switch Left Rear Down Signal |
| 12 |
0.35 D-GN |
168 |
Power Window Master Switch Left Rear Up Signal |
| 13 |
0.35 WH |
194 |
Door Unlock Control |
| 14 |
- |
- |
Not Used |
Connector Part Information
- OEM: 7283-5832
- Service: See Catalog
- Description: 14-Way F 040-III, Class II (WH)
|
Terminal Part Information
- Terminal/Tray: 7116-4231-08/14
- Core/Insulation Crimp: K/K
- Release Tool/Test Probe: 15315247/J-35616-64A (L-BU)
|
