Headlamp Switch

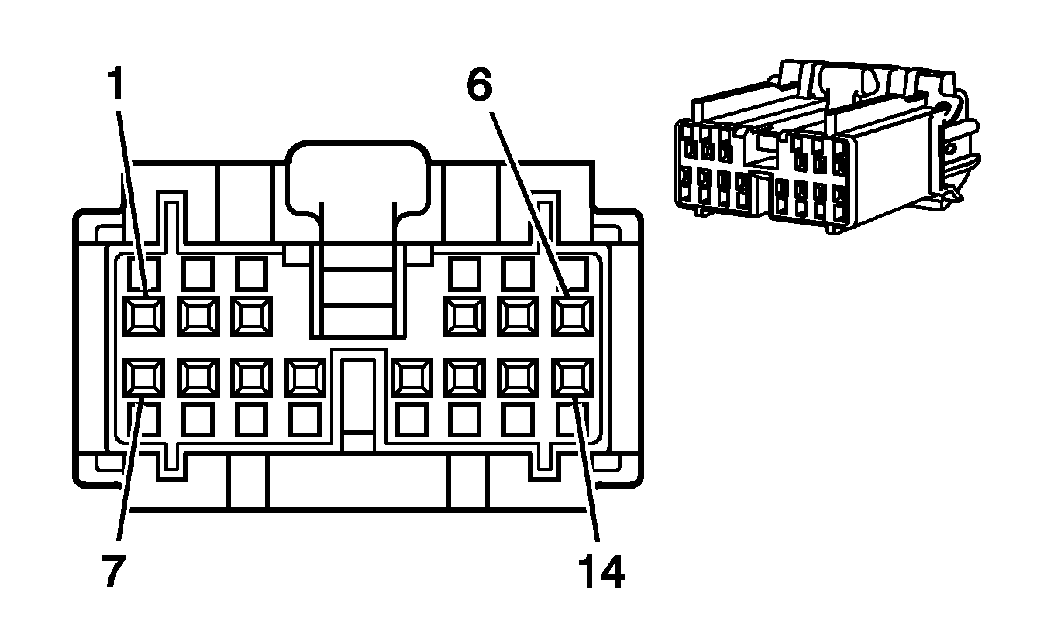

Fig 1: Headlamp Switch Connector End View

GM1335532

Courtesy of GENERAL MOTORS CORP.

Headlamp Switch

Pin	Wire	Circuit	Function
1	0.35 D-BU/WH	1495	Dome Override Switch Signal
2	0.35 BN/WH	301	Park Lamp Switch Signal
3	0.35 PU	719	Low Reference
4	0.35 WH	103	Headlamp Switch On Signal
5	0.35 PU/WH	549	Headlamp Switch Headlamps Off Signal
6	0.35 GY	8	Instrument Panel Lamps Dimmer Switch Signal
7	0.35 OG	192	Front Fog Lamp Switch Signal
8	0.35 YE	183	Front Fog Lamp Indicator Control
9	-	-	Not Used
10	0.35 D-BU/WH	6796	Voice Recognition Switch Output Signal (UE1)
10	0.35 L-BU	187	Rear Fog Lamp Switch Signal (T79)
11	0.35 PU	328	Interior Lamp Switch Signal
12	-	-	Not Used
13	0.35 D-BU	184	Rear Fog Lamp Indicator Control (T79)
14	0.35 BN/WH	230	Instrument Panel Lamps Dimming Control

Connector Part Information

OEM: IL-AG5-14S-D3C1-A
Service: 88986257
Description: 14-Way F 025, IL-AG5 Series (GN)

Terminal Part Information

Terminal/Tray: IL-AG5-C1-5000/20
Core/Insulation Crimp: K/K
Release Tool/Test Probe: J-38125-211/J-35616-64A (L-BU)
