Inflatable Restraint Vehicle Rollover Sensor (ASF)
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Vehicle Rollover Sensor (ASF)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 YE |
1139 |
Ignition Voltage |
| 2-4 |
- |
- |
Not Used |
| 5 |
0.5 PK |
2306 |
Serial Data Link |
| 6 |
0.5 BK/WH |
2151 |
Ground |

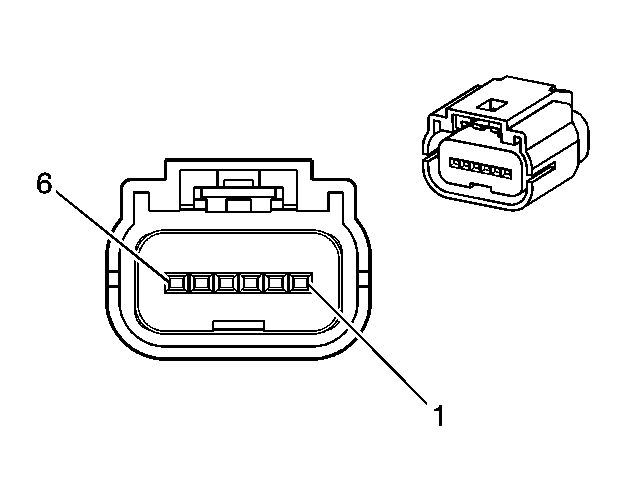

Connector Part Information
- OEM: 6189-1024
- Service: Not Serviced
- Description: 6-Way F 064 Series Sealed (YE)
|
Terminal Part Information
- Terminal/Tray: Service with Pigtail
- Core/Insulation Crimp: N/A
- Release Tool/Test Probe: 15315247/J-35616-64A (L-BU)
|
