Input Speed Sensor (ISS) (M30)

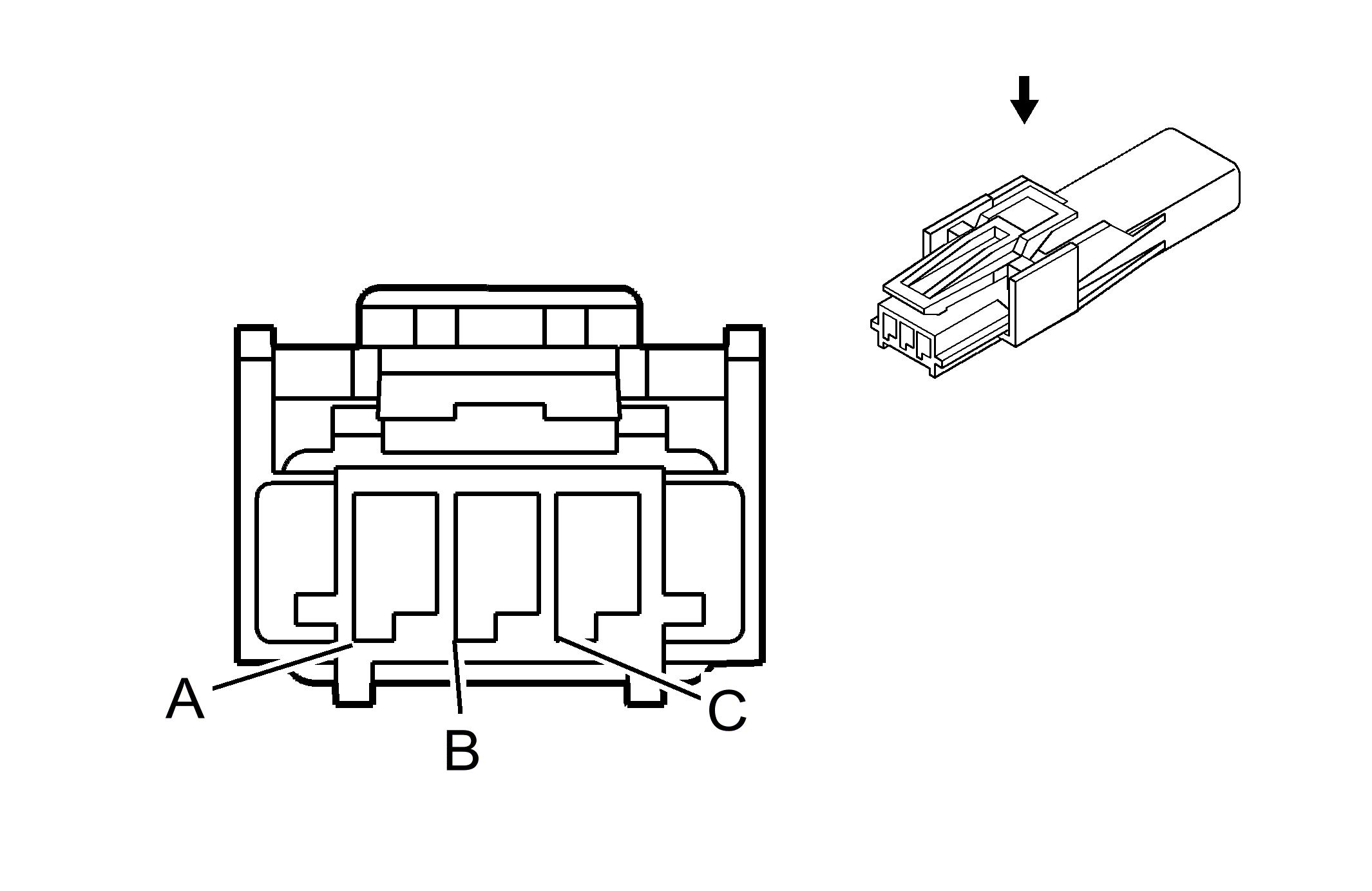

Fig 1: Input Speed Sensor (ISS) Harness Connector End View
GM1645840Courtesy of GENERAL MOTORS CORP.
Input Speed Sensor (ISS) (M30)

Pin Wire Circuit Function
A 0.5 BK 1230 AT ISS High Signal
B 0.5 RD 839 Ignition Voltage
C 0.5 D-GN 1231 AT ISS Low Signal
Connector Part Information
  • OEM: 15492436
  • Service: See Catalog
  • Description: 3-Way M Metri-Pack 150 Series (L-GY)
Terminal Part Information
  • Terminal/Tray: 12124075/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12180559-1/J-35616-14 (GN)
