Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

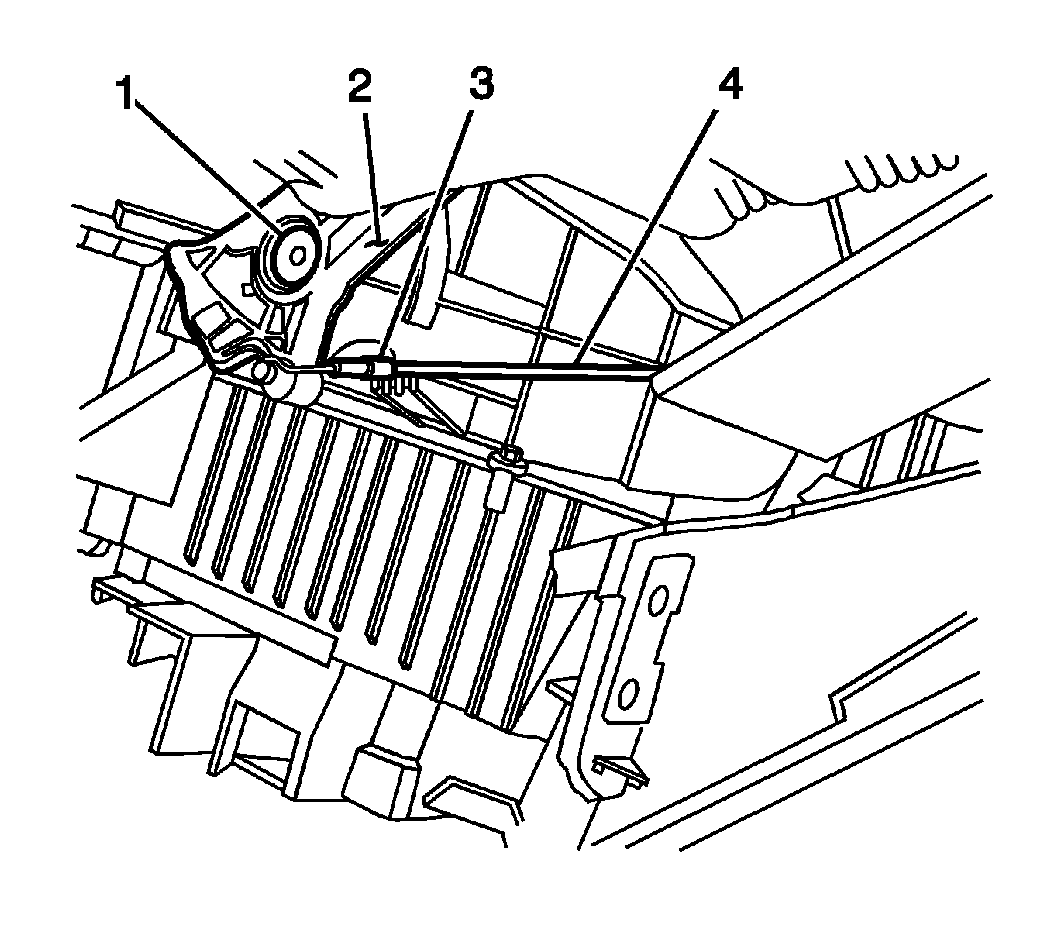

Fig 1: View Of Mode Cable

Courtesy of GENERAL MOTORS CORP.

Install the mode cable (4).
Make certain that the cable is properly seated in the notch in the HVAC module.

NOTE: Refer to Fastener Notice .

Install the mode cam screw.
Tighten: Tighten the screw to 2 N.m (18 lb in).
Install the mode control cable (4) to the mode cam (2).
Install the mode control cable (4) to the retaining clip (3).
