Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

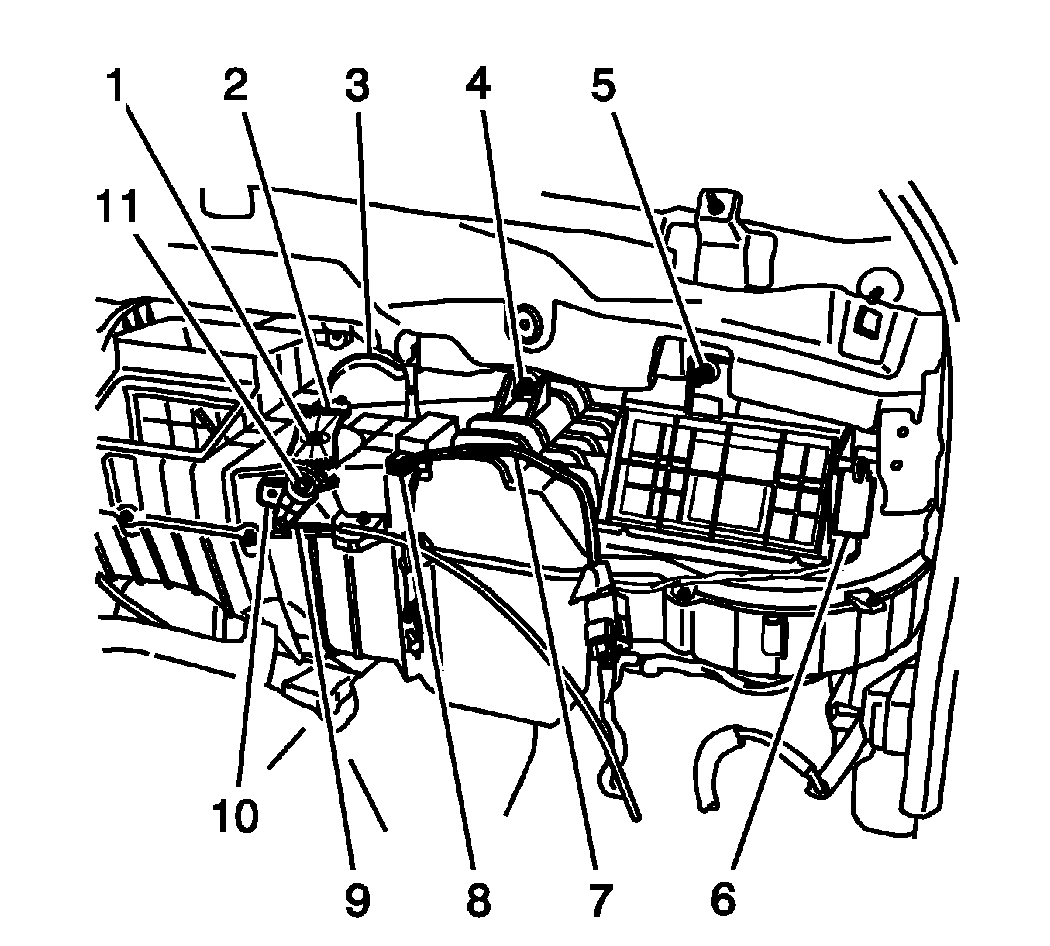

    Fig 1: Locating Temperature Control Cable & Temperature Actuator Cam
    GM1273250Courtesy of GENERAL MOTORS CORP.
  1. Install the temperature cable (4).
  2. Install the temperature control cable (9) to the temperature actuator cam (10).
  3. Install the temperature cable to the retaining clip.

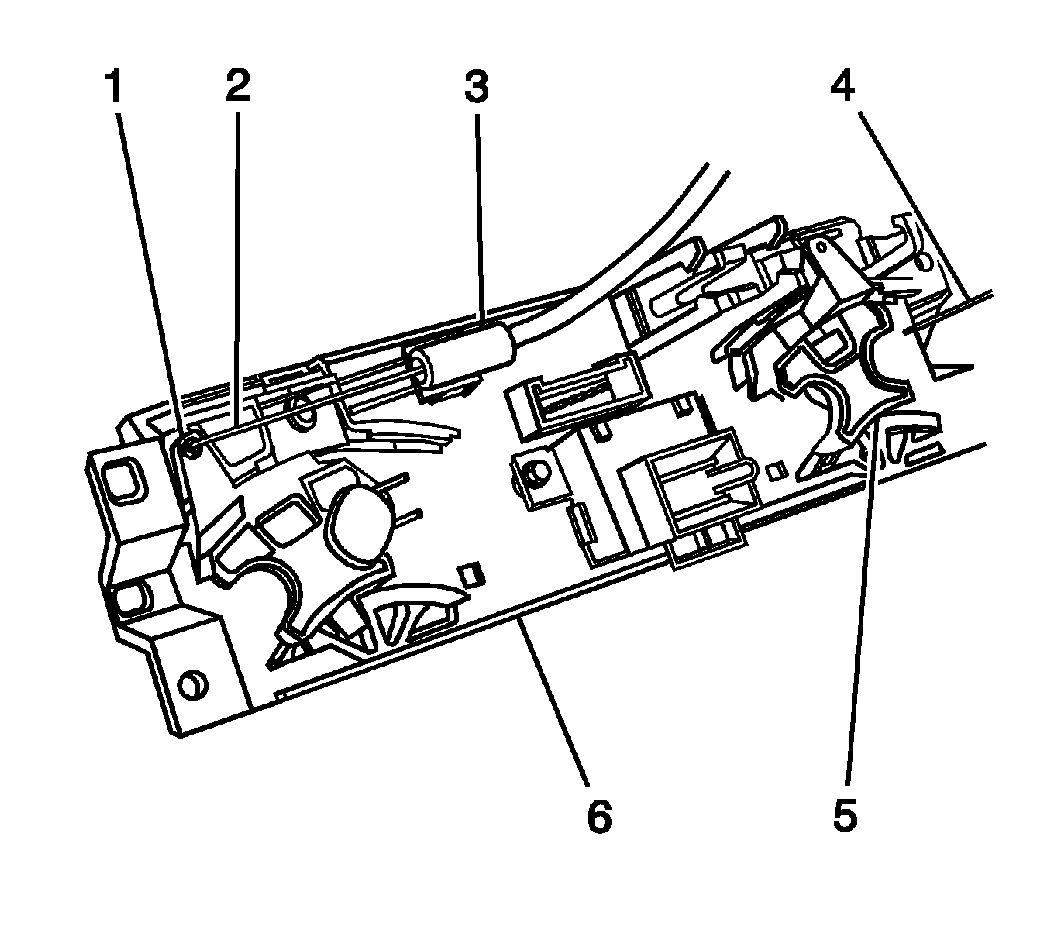

    4. Fig 2: View Of Temperature Cable & Mode Cable
    GM1273258Courtesy of GENERAL MOTORS CORP.
  4. Install the temperature cable (4) to the temperature control cam (5).
  5. Install the temperature cable (4) to the retaining clip.
    6. NOTE: Refer to Fastener Notice .
  6. Install the mounting screws to the HVAC control assembly.

    Tighten:  Tighten the screws to 1.9 N.m (17 lb in)

  7. Install the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
