Removal Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

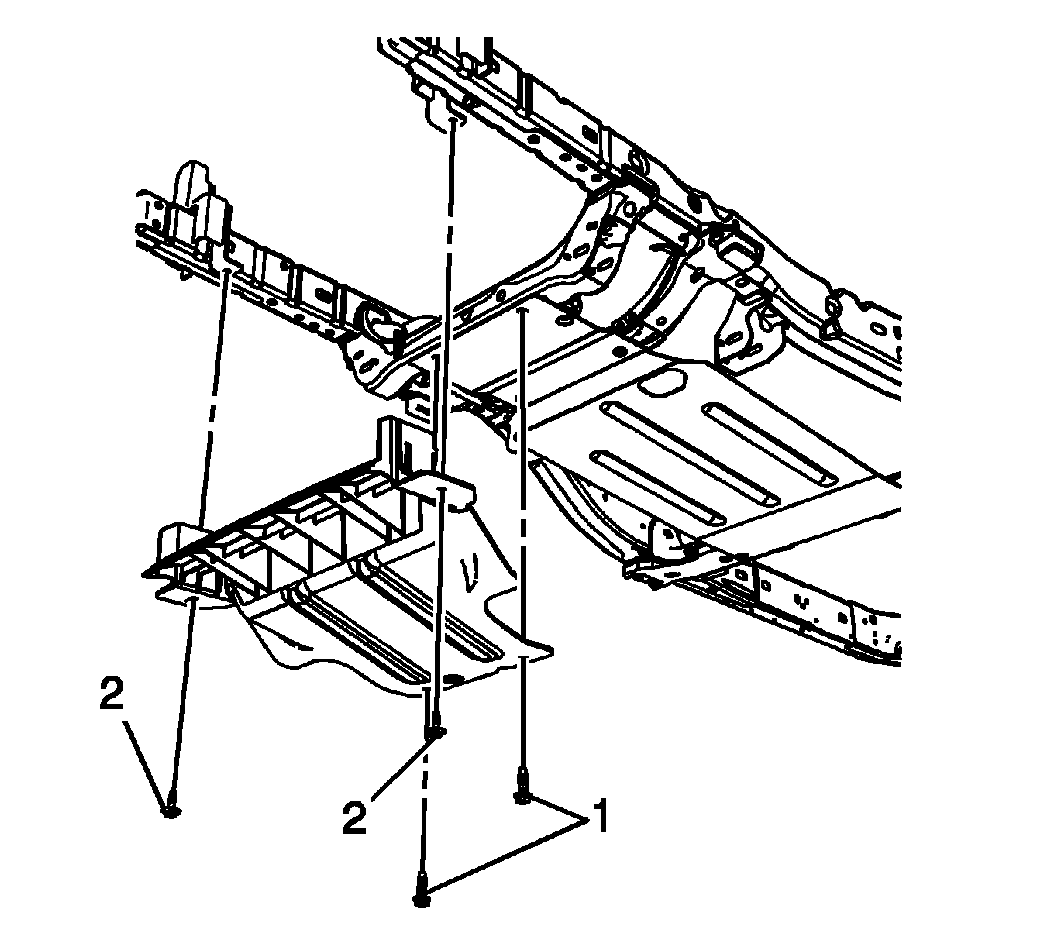

    Fig 1: View Of Engine Front Protection Shield
    GM1871957Courtesy of GENERAL MOTORS CORP.
  1. Remove the front shield bolts (1, 2).
  2. Remove the front shield from the vehicle.

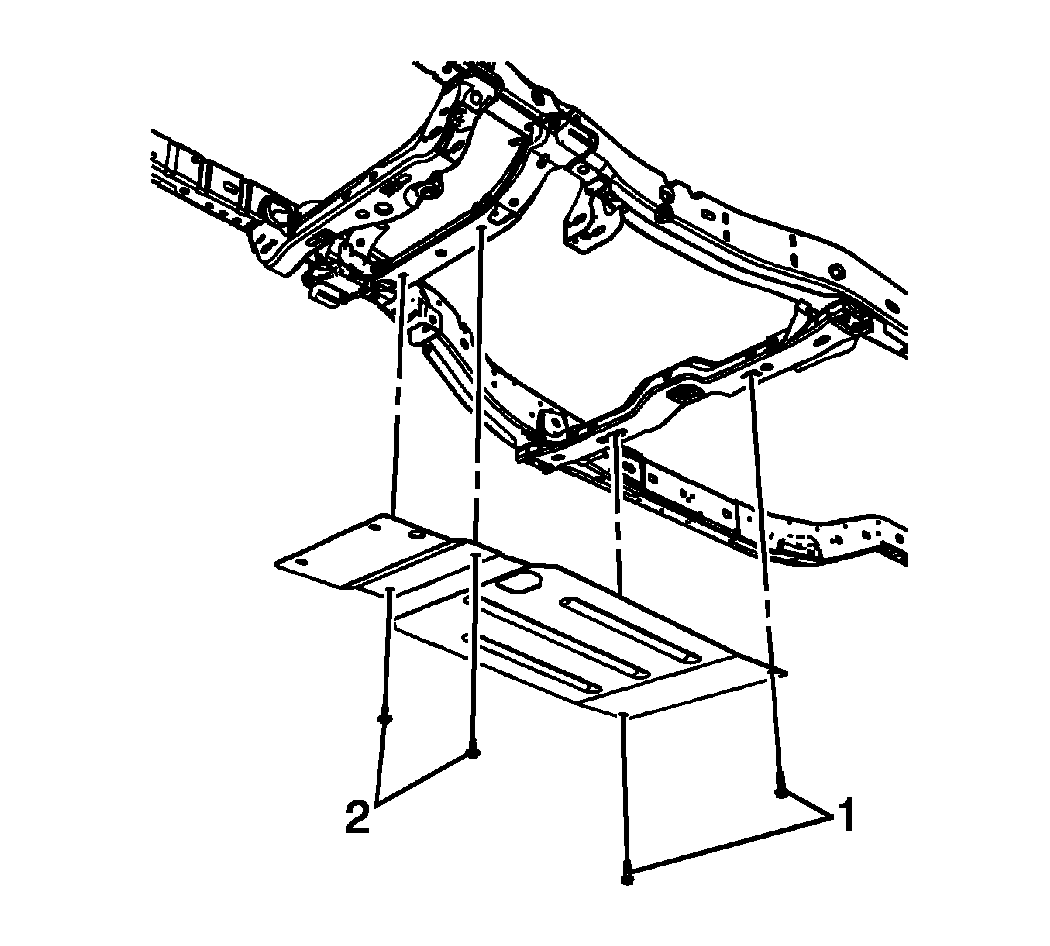

    3. Fig 2: View Of Engine Rear Protection Shield
    GM1871958Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear shield bolts (1, 2).
  4. Remove the rear shield from the vehicle.
