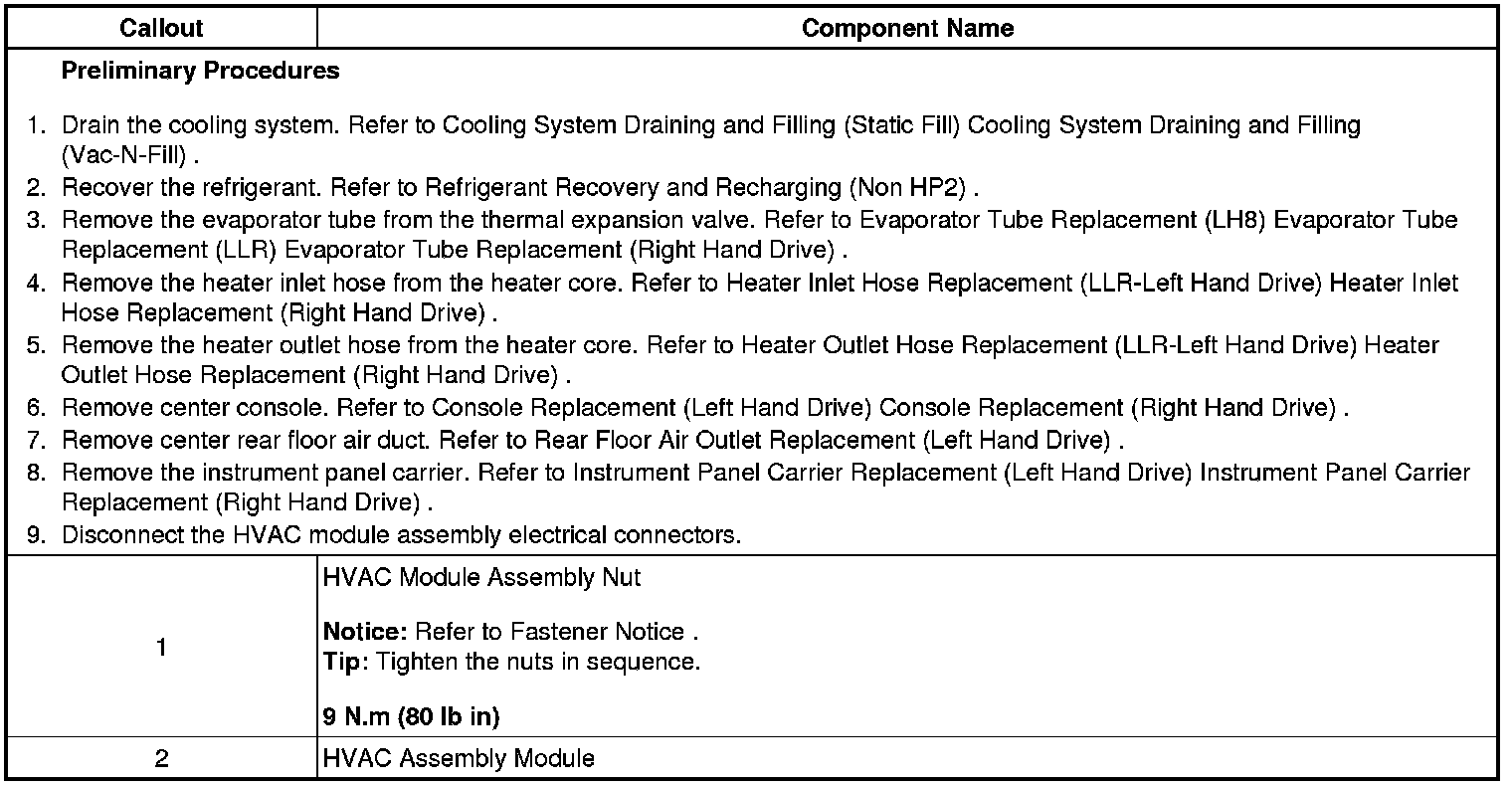

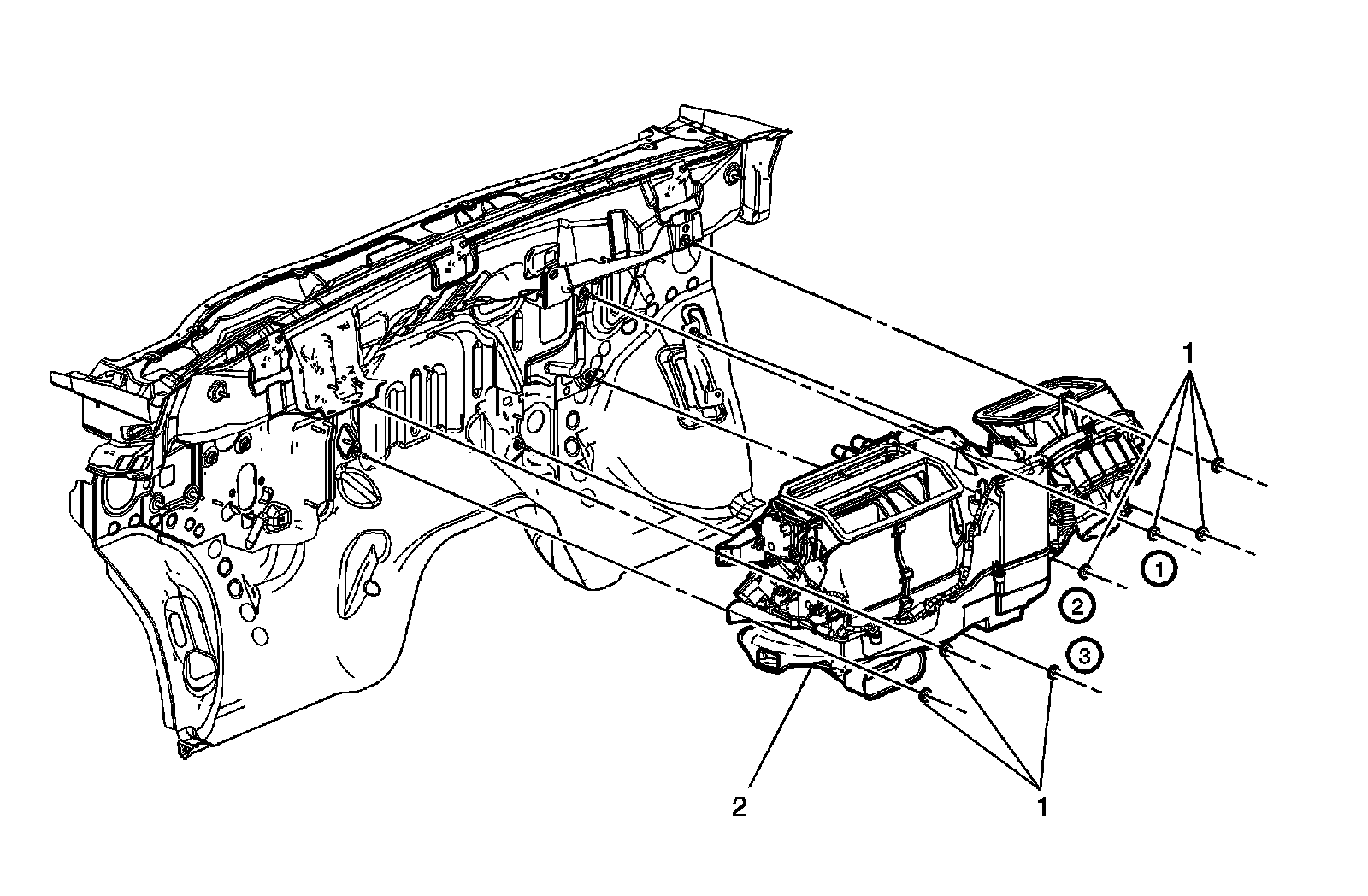

HVAC Module Assembly Replacement (Left Hand Drive)



HVAC Module Assembly Replacement (Left Hand Drive)
