Installation Procedure

Install the new window motor to the window regulator.

CAUTION: Refer to Fastener Caution .

Install the screws.
Tighten: Tighten the screws to 6 N.m (53 lb in).

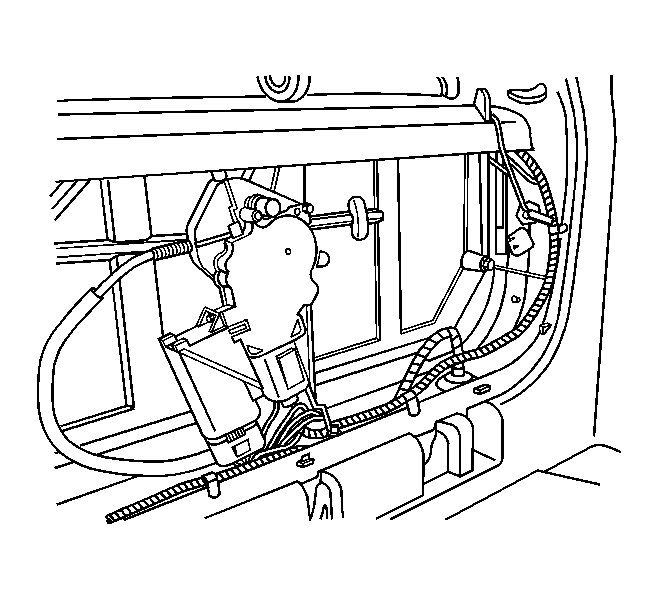

Fig 1: View Of Midgate Window Regulator

GM1477813

Courtesy of GENERAL MOTORS CORP.

Install the window regulator assembly. Refer to Midgate Window Replacement .
Reposition the rear seats.
