Moveable Window Schematics

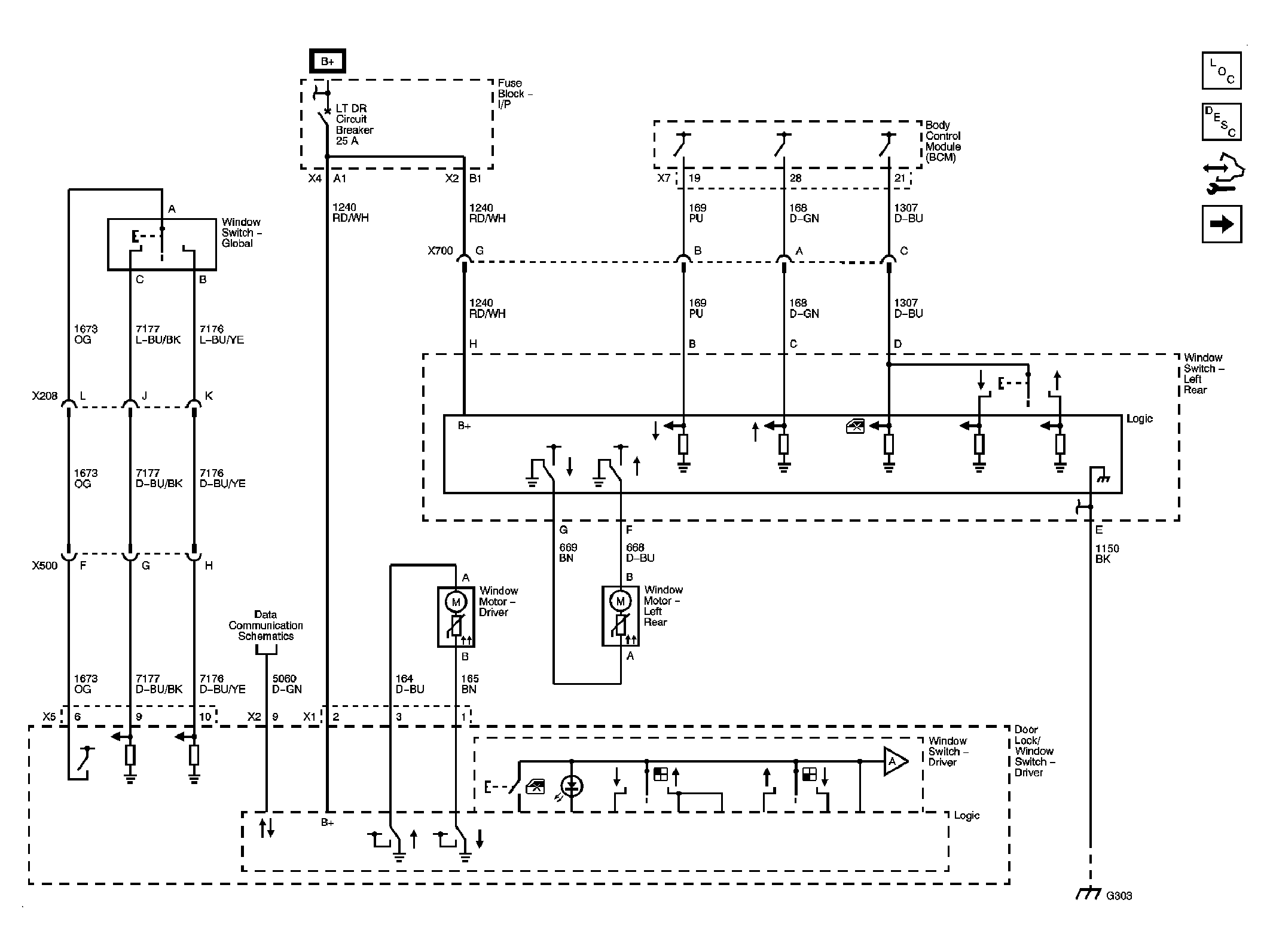

Fig 1: Left Doors
GM2097124Courtesy of GENERAL MOTORS CORP.

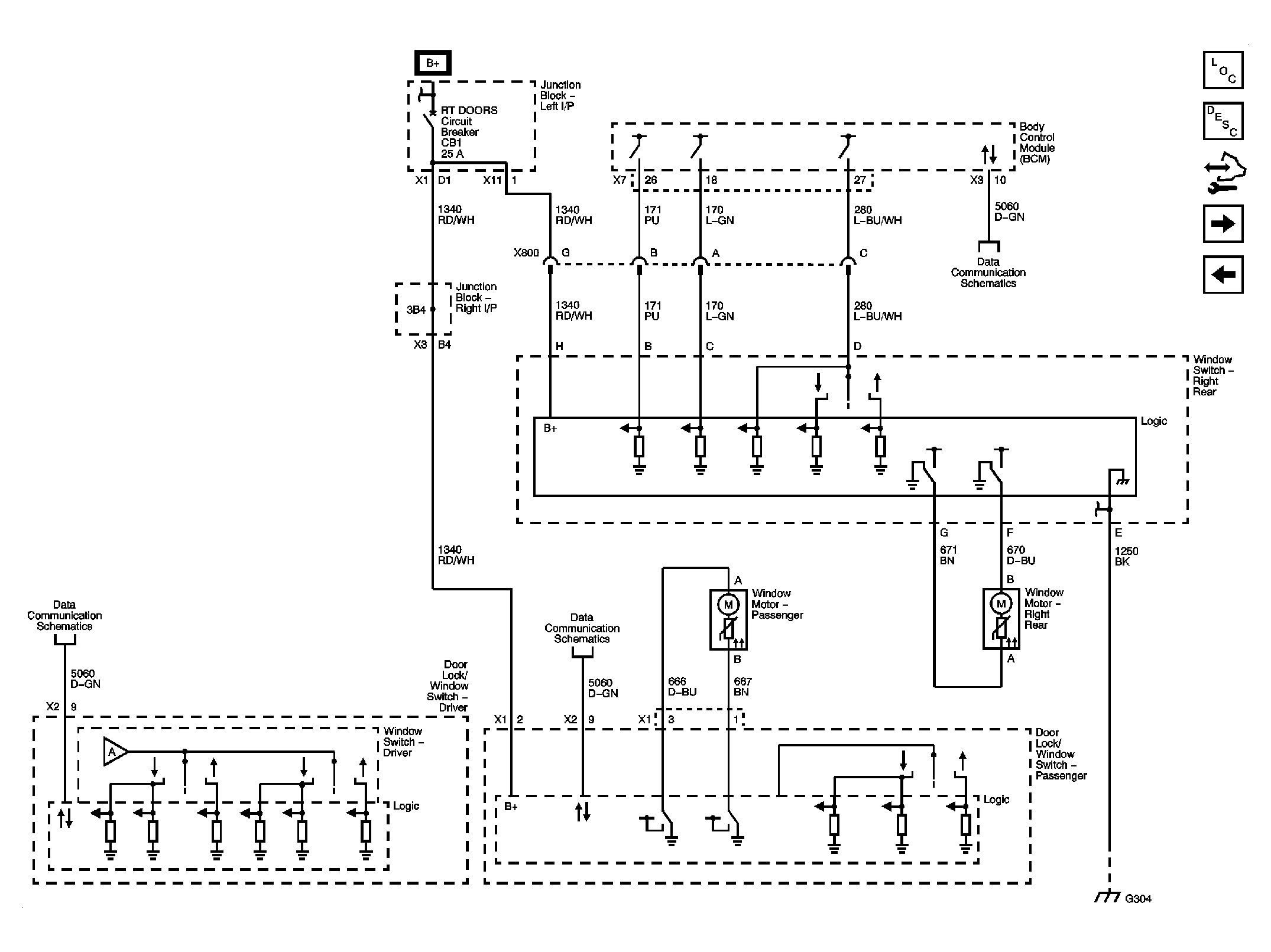

Fig 2: Right Doors
GM2097125Courtesy of GENERAL MOTORS CORP.

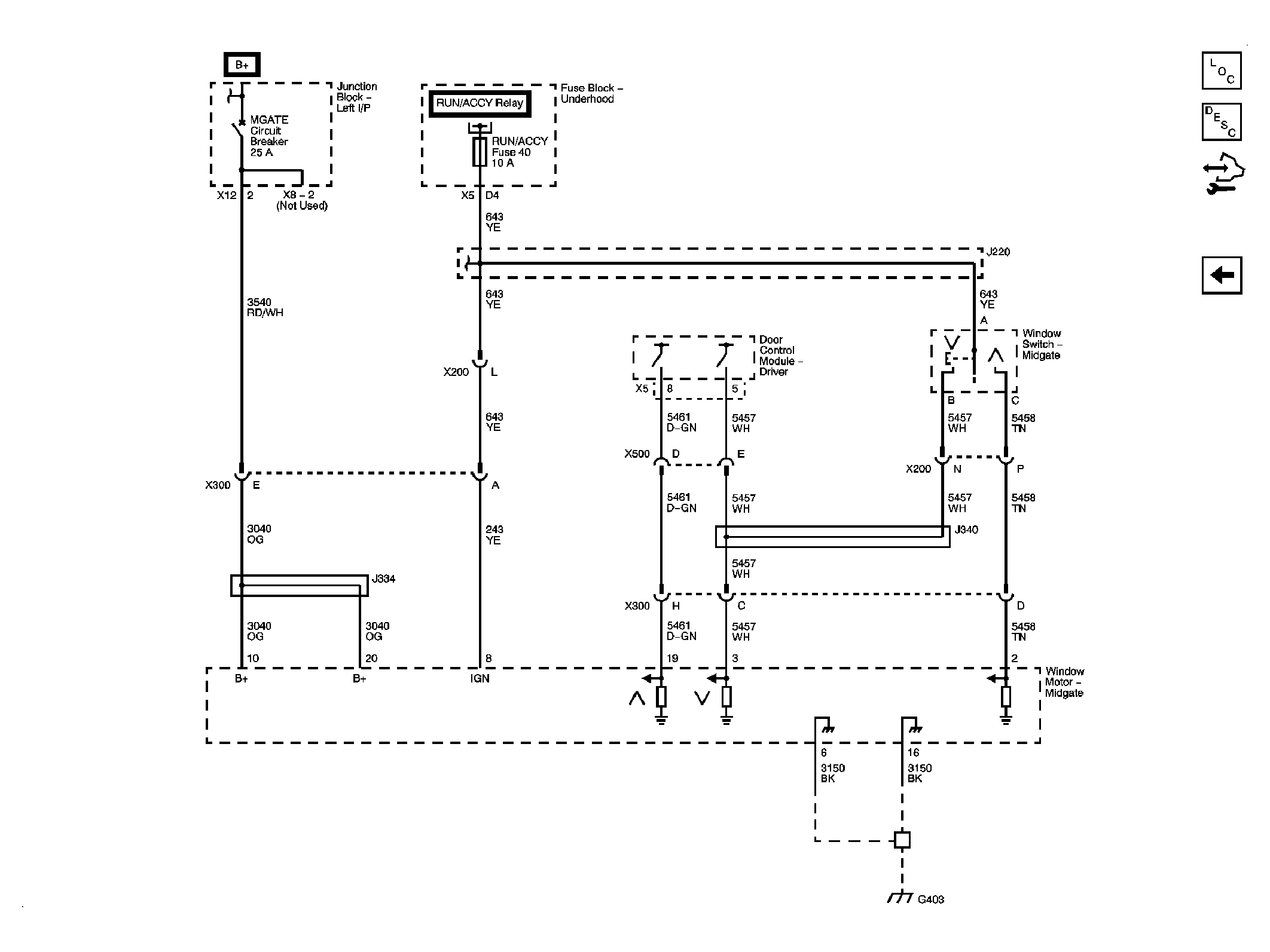

Fig 3: Midgate
GM2097126Courtesy of GENERAL MOTORS CORP.
