Power Moding Schematics

Fig 1: Ignition II/III Voltage
GM2097233Courtesy of GENERAL MOTORS CORP.
Fig 2: Accessory Voltage
GM2097234Courtesy of GENERAL MOTORS CORP.

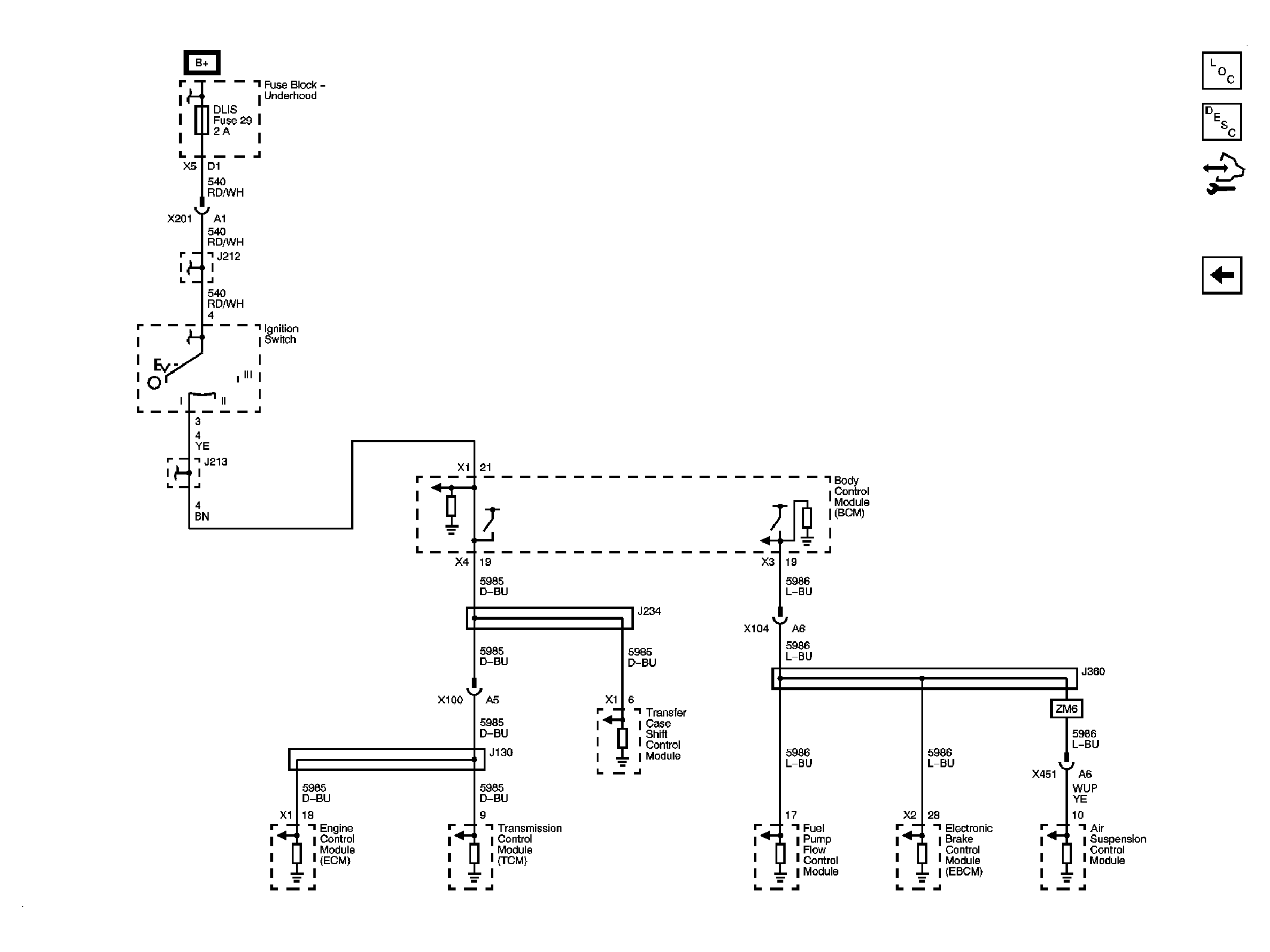

Fig 3: Ignition III Voltage
GM2097235Courtesy of GENERAL MOTORS CORP.
