Installation Procedure

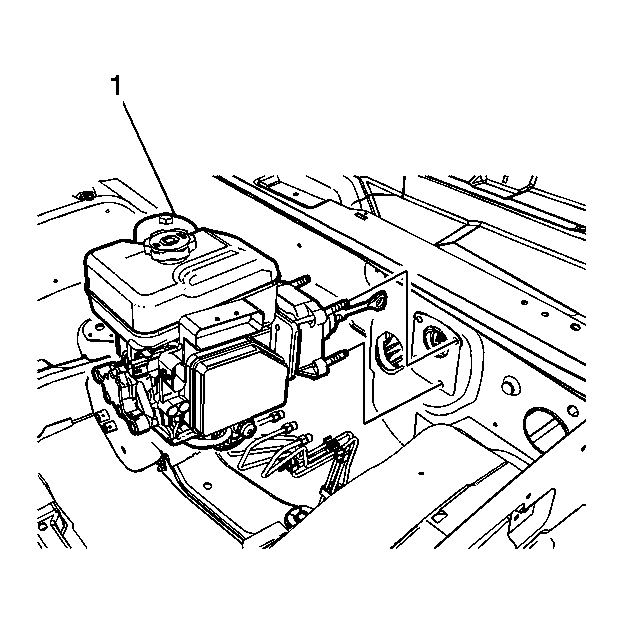

Fig 1: Identifying Brake Master Cylinder And Power Brake Booster Assembly

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Fig 2: Identifying Brake Master Cylinder Nuts

Courtesy of GENERAL MOTORS CORP.

Install the brake master cylinder nuts (1).
Tighten: Tighten the nuts to 36 N.m (27 lb ft).
Position the wiring harnesses to the retainers, if removed.

Fig 3: Identifying Stoplamp Switch

Courtesy of GENERAL MOTORS CORP.

Simultaneously install the brake master cylinder pushrod and the stoplamp switch (1) to the brake pedal clevis pin.

Fig 4: Identifying Brake Master Cylinder Pushrod Retainer

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Brake Master Cylinder Pushrod Retainer Bolt

Courtesy of GENERAL MOTORS CORP.

Install the brake master cylinder pushrod retainer bolt (1).
Tighten: Tighten the bolt to 10 N.m (89 lb in).

Fig 6: Identifying Front Brake Pipes

Courtesy of GENERAL MOTORS CORP.

Install the 2 front brake pipes (1) to the brake master cylinder.
Tighten: Tighten the fittings to 25 N.m (18 lb ft).
Connect the electrical connectors at the brake pressure modulator valve (BPMV).
Connect the brake fluid level sensor electrical connector.

Fig 7: Identifying Rear Brake Pipes

Courtesy of GENERAL MOTORS CORP.

Install the 2 rear brake pipes (1) to the brake master cylinder.
Tighten: Tighten the fittings to 25 N.m (18 lb ft).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual) .
