Auxiliary Input / Output Jack, Entertainment System

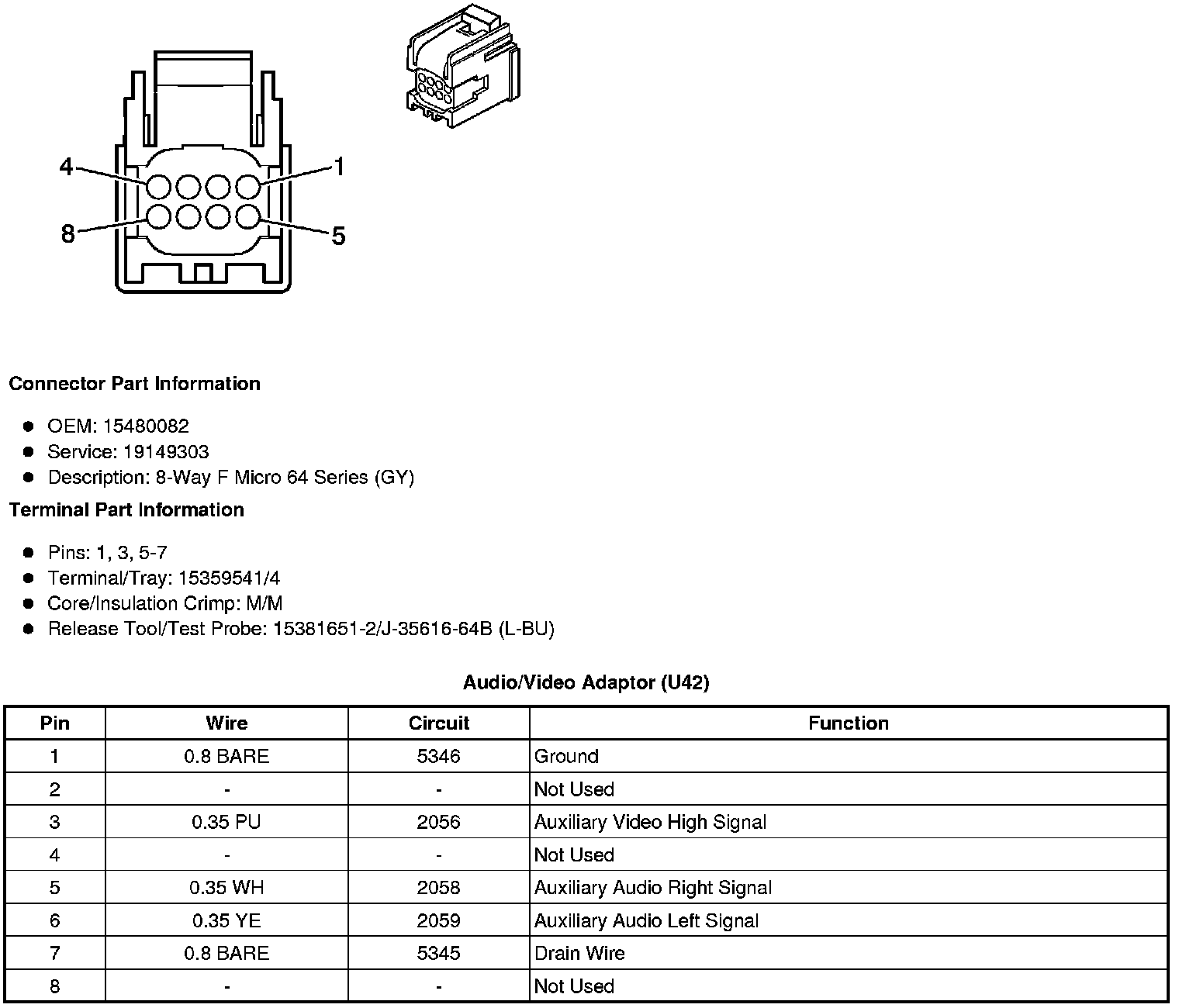

Component Connector End Views
Audio/Video Adaptor (U42)
