Driver/Vehicle Information Display

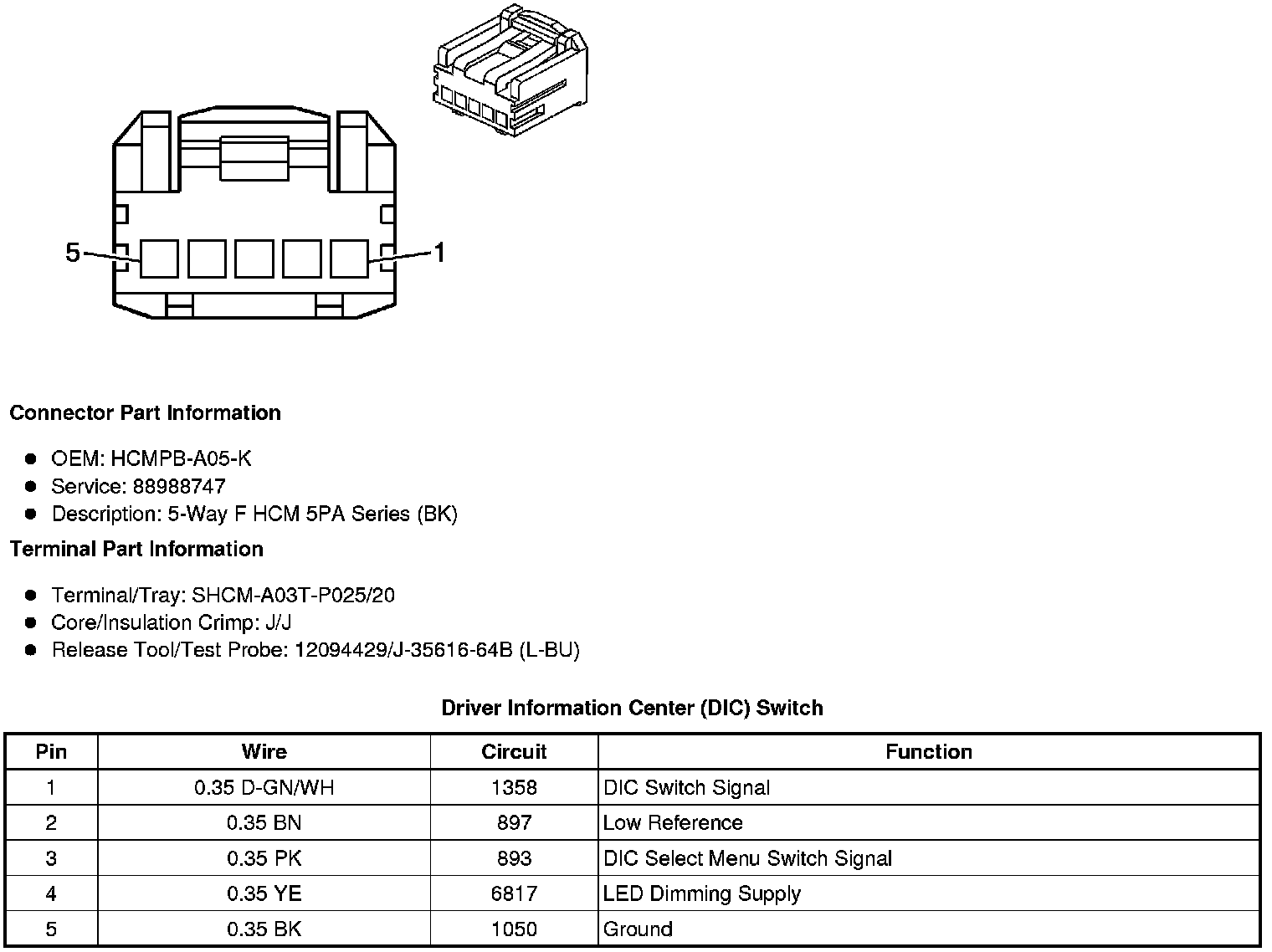

Component Connector End Views

Driver Information Center (DIC) Switch
