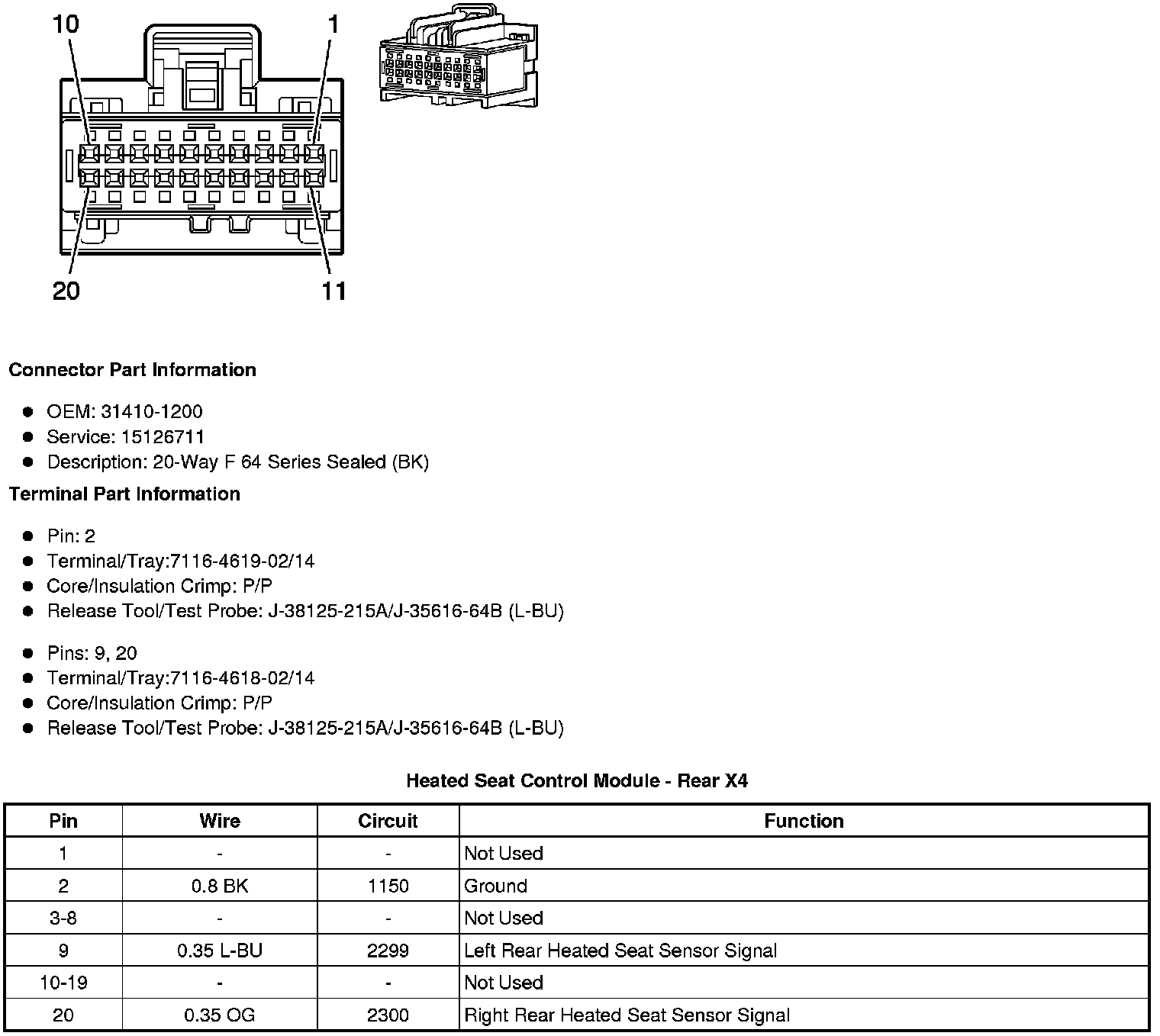

Heated Seat Control Module - Rear X4
Component Connector End Views
Heated Seat Control Module - Rear X4
