Entertainment/Communication Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front of the I/P (Except Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Instrument Panel Cluster (IPC)
4	Tow/Haul Switch
5	Driver Information Center (DIC) Switch
6	Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3)
7	HVAC Control Module
8	Auxiliary Power Outlet - Front 2
9	I/P Multifunction Switch Assembly
10	Auxiliary Power Outlet - Front 1
11	Radio
12	Transfer Case Shift Control Switch
13	Headlamp and Panel Dimmer Switch

Fig 2: Front of the I/P (Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Driver Information Center (DIC) Switch
3	Ambient Light/Sunload Sensor Assembly (CJ2)
4	Speaker - Center
5	Analog Clock
6	Radio
7	Traction Control / Rear Object Detection Switch
8	HVAC Control Module
9	I/P Multifunction Switch Assembly
10	Auxiliary Power Outlet - Front 1
11	Noise Compensation Microphone (Y91)
12	Transfer Case Shift Control Switch
13	Fuse Block - I/P
14	Headlamp and Panel Dimmer Switch

Fig 3: Behind the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Fuse Block - I/P
3	Body Control Module (BCM)
4	Speaker - Subwoofer (UQA)
5	Vehicle Communication Interface Module (VCIM) (UE1)
6	Digital Radio Receiver (U2K)

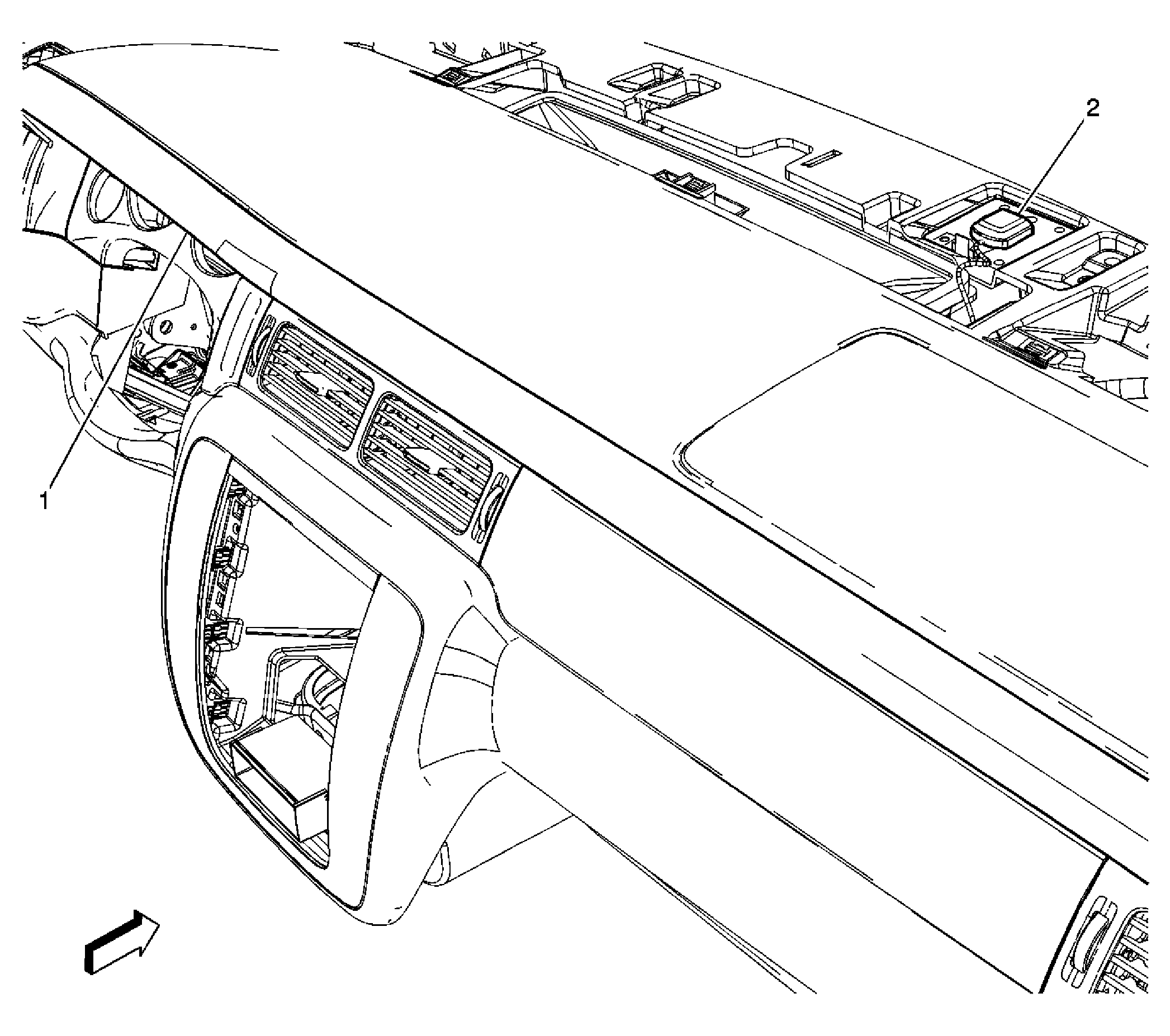

Fig 4: Top of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Navigation Antenna Module

Fig 5: Top Front of the Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch (CF5)
2	Courtesy/Reading Lamps - Second Row
3	Power Liftgate Switch (E61)
4	Folding Seat Switch - Front (ARS)
5	Garage Door Opener (UG1)
6	Onstar Button Assembly (UE1)
7	Inside Rearview Mirror (ISRVM)
8	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
9	Courtesy/Reading Lamp - Front
10	Inside Air Temperature Sensor - Front (CJ2)

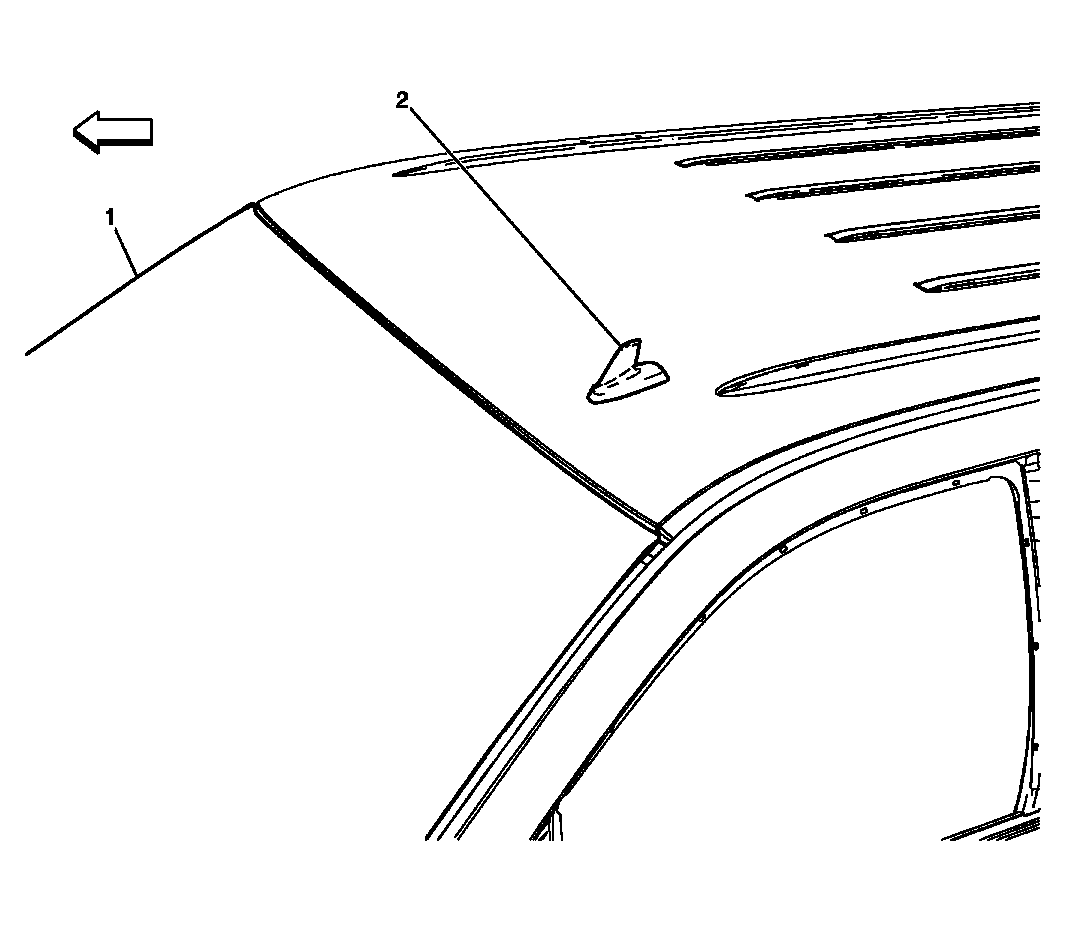

Fig 6: Above the Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield
2	Cellular / Navigation / and Digital Radio Antenna (U2K)

Fig 7: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Memory/Heated Seat Switch (AN3 Except KB6) / Memory Seat Switch (KB6)
4	Driver Door Switch (DDS)
5	Speaker - LF Door
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) - LF (ASF)
8	Door Latch Assembly - Driver

Fig 8: Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Passenger Door Switch (PDS)
3	Door Latch Assembly - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) - RF (ASF)
5	Speaker - RF Door
6	Window Motor - Passenger
7	Heated Seat Switch (KA6)

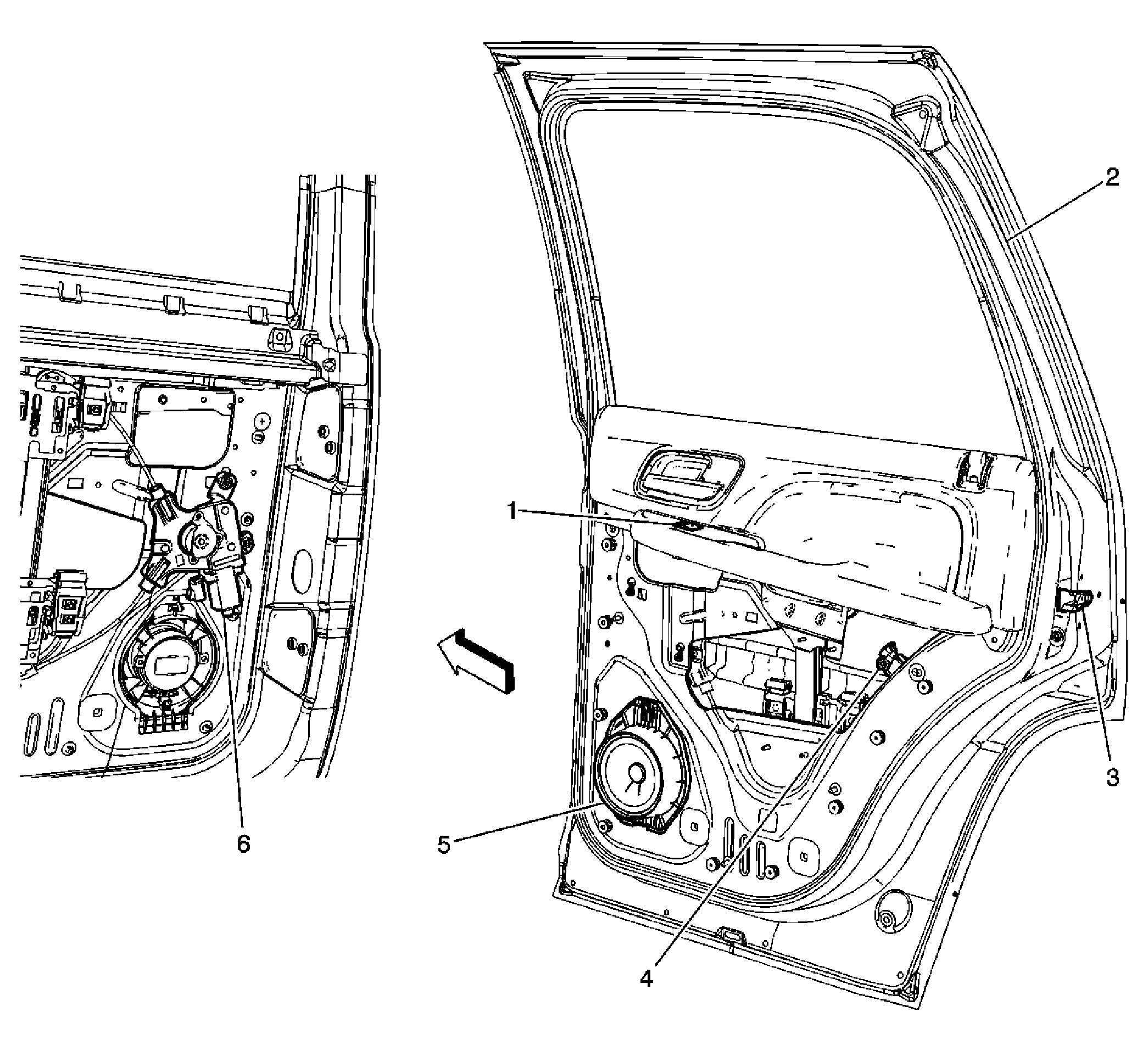

Fig 9: RR Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - RR
2	Door Frame
3	Inflatable Restraint Side Impact Sensor (SIS) - RR (ASF)
4	Speaker - RR Door
5	Window Motor - RR

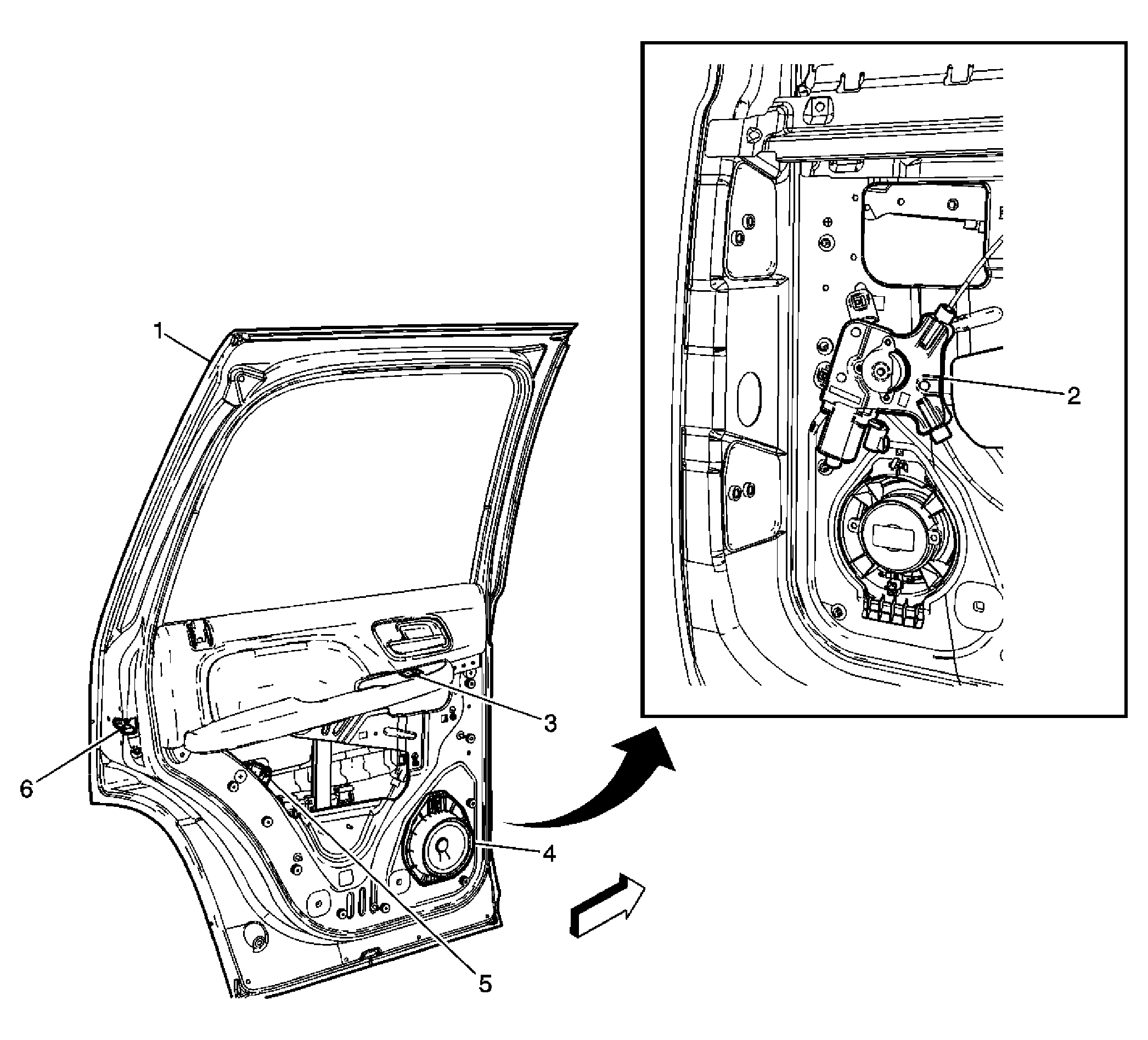

Fig 10: LR Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Motor - LR
3	Window Switch - LR
4	Speaker - LR Door
5	Inflatable Restraint Side Impact Sensor (SIS) - LR (ASF)
6	Door Latch Assembly - LR

Fig 11: LR of the Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Trim
2	Speaker - Left D-Pillar
3	LR Compartment Trim

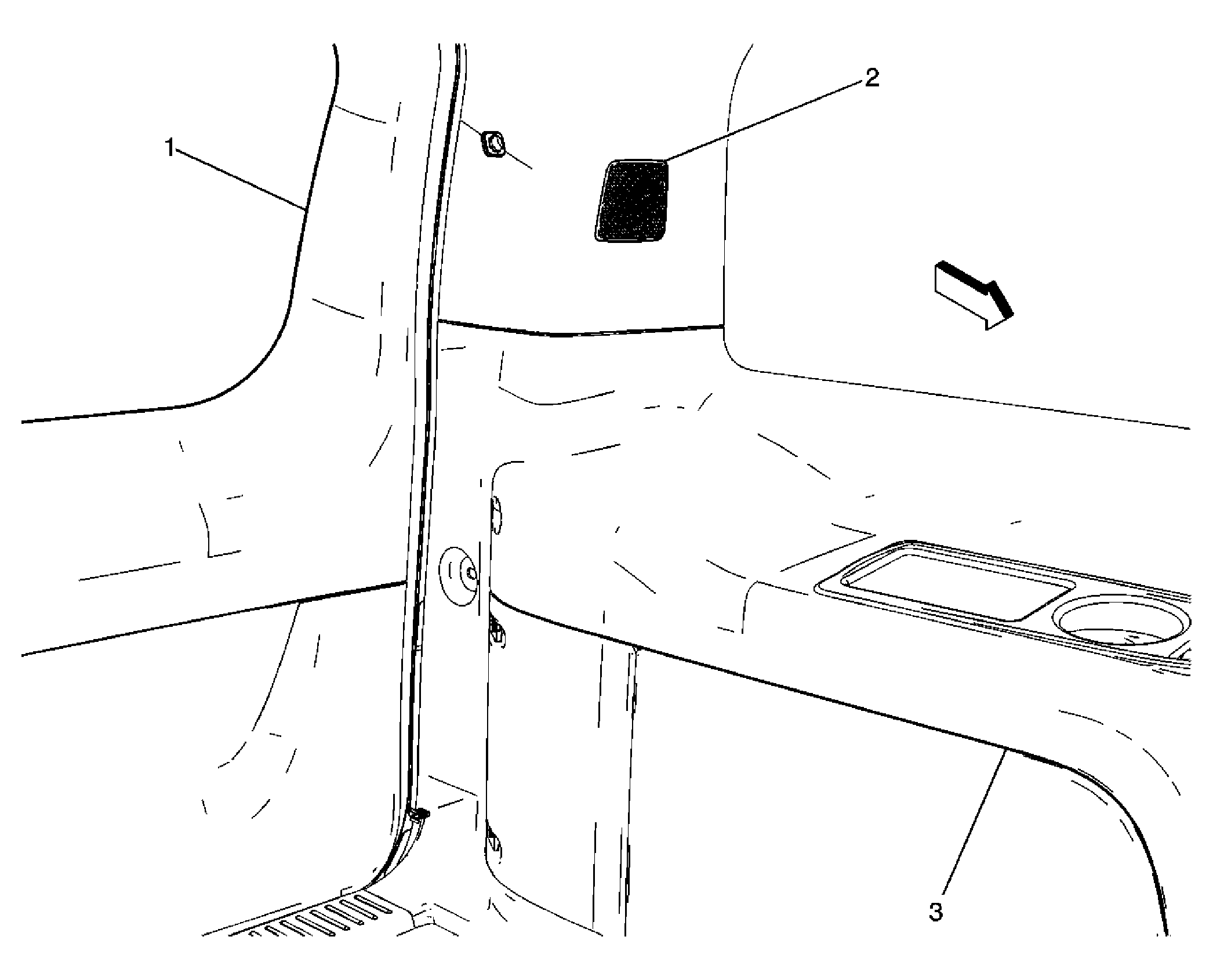

Fig 12: RR of the Passenger Compartment (E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Information Center Telltale Assembly (UD7)
2	Speaker - Right D-Pillar
3	Auxiliary Power Outlet (APO) - Rear

Fig 13: Near the RR Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Antenna
2	RR Window
3	RR Door Panel
