Infrared Module (U42)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

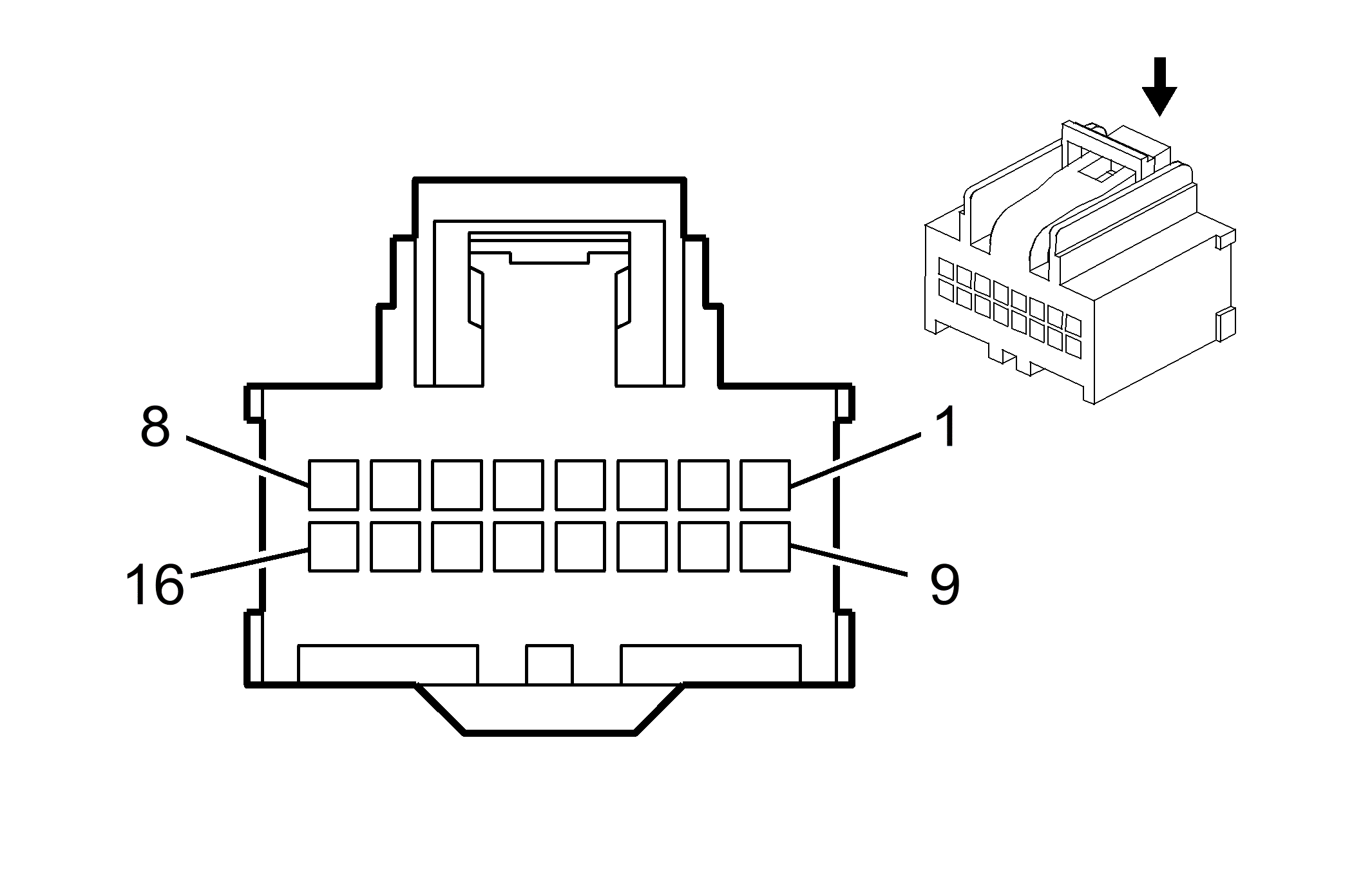

Fig 1: Infrared Module (U42) Connector End View

Courtesy of GENERAL MOTORS CORP.

Infrared Module (U42) Connector Parts Information

Connector Part Information

OEM: 15466054
Service: 15136074
Description: 16-Way F Kaizen 0.64 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Infrared Module (U42) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	L-BU	5826	Left DVD Audio Signal (+)
2	PU	6979	DVD Audio Common
3	WH	5828	Right DVD Audio Signal (+)
4	PK	5829	Infra Red Module Supply Voltage
5-7	-	-	Not Used
8	OG/BK	5831	Remote Infra Red Signal (+)
9	OG/BK	5329	Left Infra Red Audio Signal
10	BN/WH	5331	Infra Red Audio Low Reference
11	PU/WH	5330	Right Infra Red Audio Signal
12	BK	2550	Ground
13-15	-	-	Not Used
16	TN/WH	5830	Remote Infra Red Signal (-)
