Vehicle Communication Interface Module (VCIM) C2

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

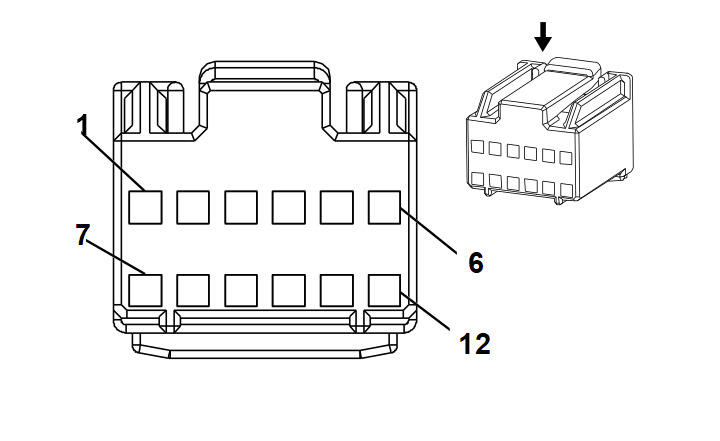

Fig 1: Vehicle Communication Interface Module (VCIM) C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Vehicle Communication Interface Module (VCIM) C2 Connector Parts Information

Connector Part Information

OEM: 15431365
Service: 88952886
Description: 12-Way F Micro 100A (NA)

Terminal Part Information

Terminal/Tray: 15445905/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12180559/J-35616-6 (BN)

Vehicle Communication Interface Module (VCIM) C2 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	D-BU	658	Cellular Telephone Voice Signal
2	L-BU/BK	659	Cellular Telephone Voice Low Reference
3	TN/BK	2500	High Speed GMLAN Serial Data Bus+
4	TN	2501	High Speed GMLAN Serial Data Bus-
5-7	-	-	Not Used
8	Bare	1782	Drain Wire
9	GY	655	Cellular Microphone Signal
10	Bare	514	Ground
11-12	-	-	Not Used
