Vehicle Communication Interface Module (VCIM) C3

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

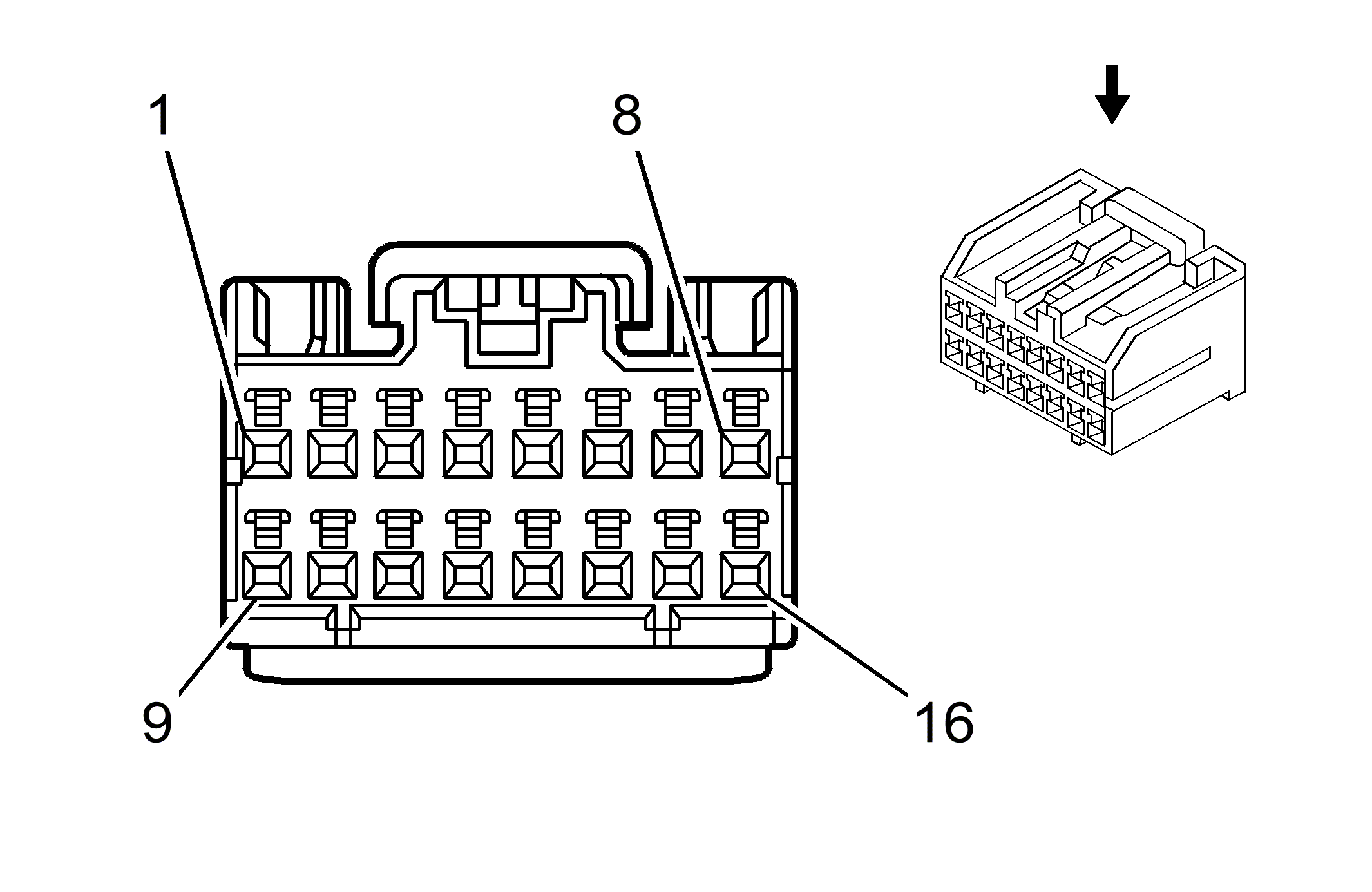

Fig 1: Vehicle Communication Interface Module (VCIM) C3 Connector End View

Courtesy of GENERAL MOTORS CORP.

Vehicle Communication Interface Module (VCIM) C3 Connector Parts Information

Connector Part Information

OEM: 15431359
Service: 88988722
Description: 16-Way F Micro 100A (GY)

Terminal Part Information

Terminal/Tray: 15445905/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12180559/J-35616-6 (BN)

Vehicle Communication Interface Module (VCIM) C3 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	PK	5149	Voice Recognition Audio Signal
3	-	-	Not Used
4	PK/BK	5152	Voice Recognition Audio Low Reference
5	Bare	1792	Drain Wire
6-16	-	-	Not Used
