Installation Procedure

    Fig 1: View Of Starter & Heat Shield
    GM663472Courtesy of GENERAL MOTORS CORP.
  1. Install the starter heat shield, if required.
    2. Fig 2: View Of Transmission Cover & Starter
    GM663489Courtesy of GENERAL MOTORS CORP.
  2. Install the transmission cover to the starter.
    3. Fig 3: View Of Starter & Bolts (4.8L, 5.3L & 6.0L)
    GM663527Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Position the starter and install the starter motor bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

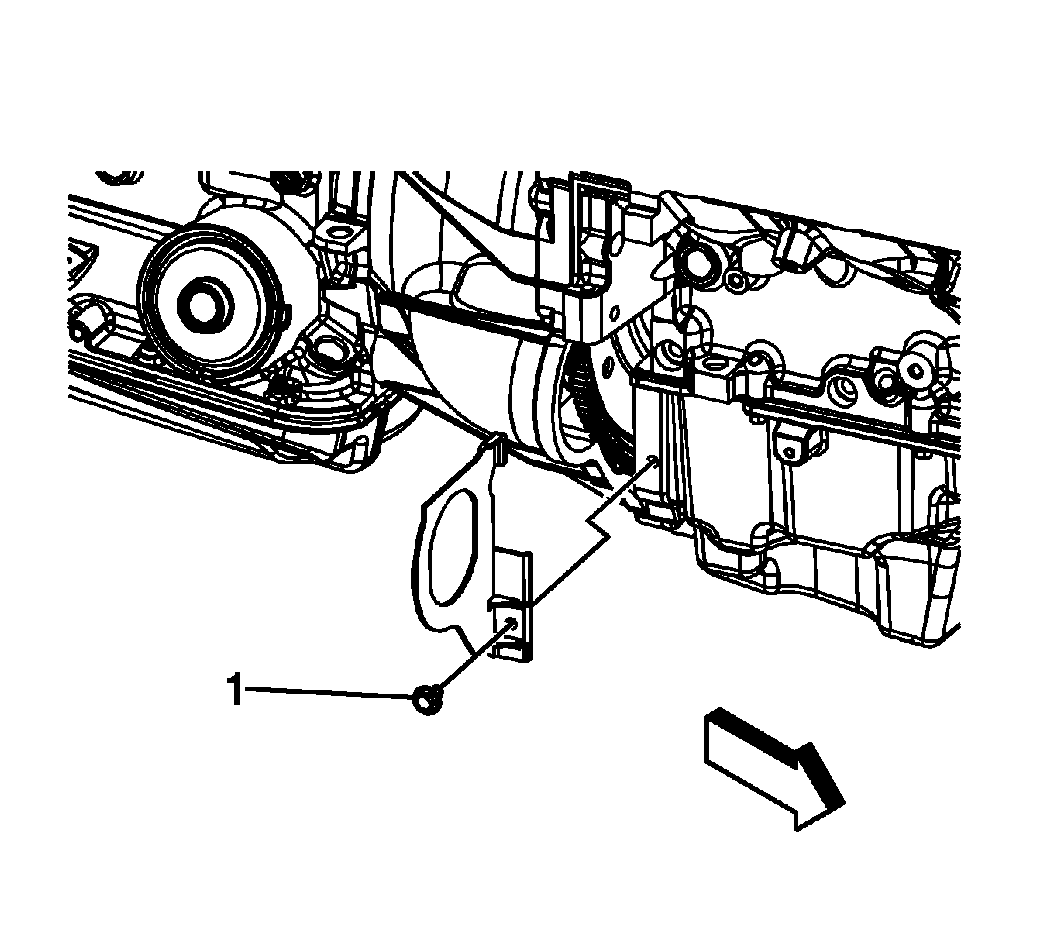

    4. Fig 4: Transmission Cover Bolt
    GM1902155Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission cover bolt (1).

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).

    5. Fig 5: Engine Wiring Harness Electrical Connector At Knock Sensor
    GM1899202Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector (2) to the starter motor.
  6. Install the engine wiring harness/positive battery cable terminal (5) to the starter and install the nut (4).

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  7. Install the front propeller shaft. Refer to Front Propeller Shaft Replacement .
  8. Install the right front tire. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle.
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
