System Diagram




Component Connector End Views

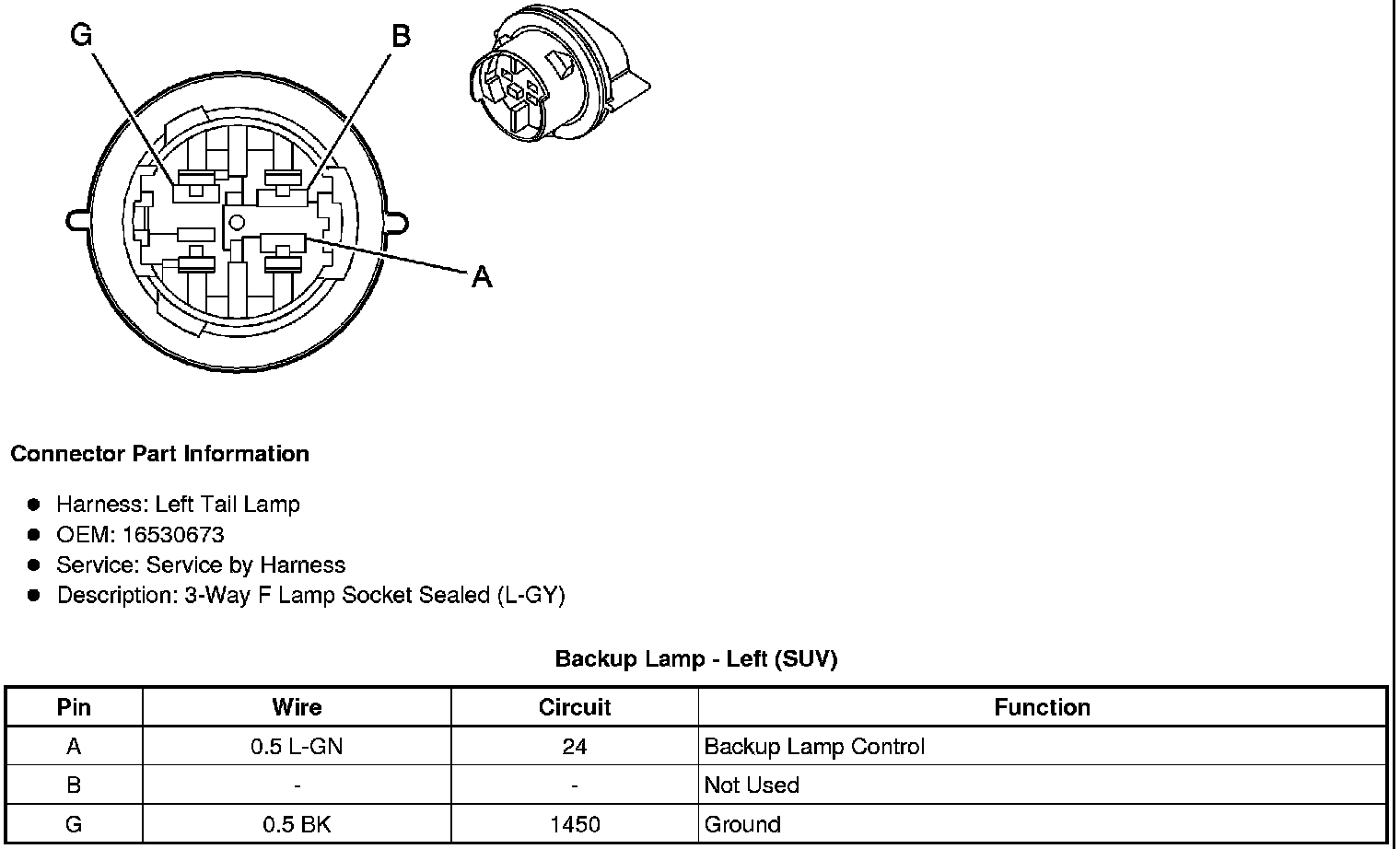

Backup Lamp - Left (SUV)

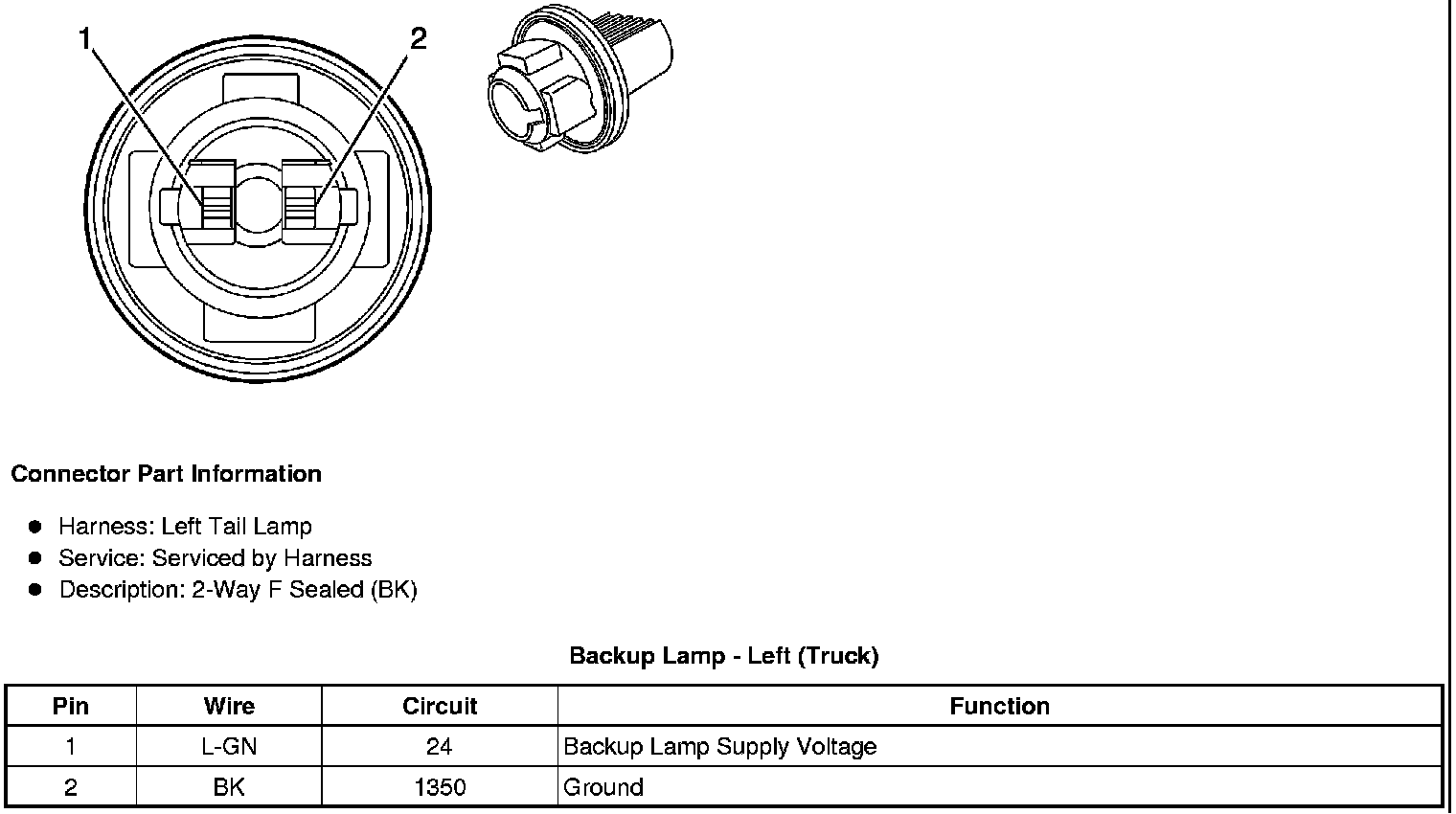

Backup Lamp - Left (Truck)

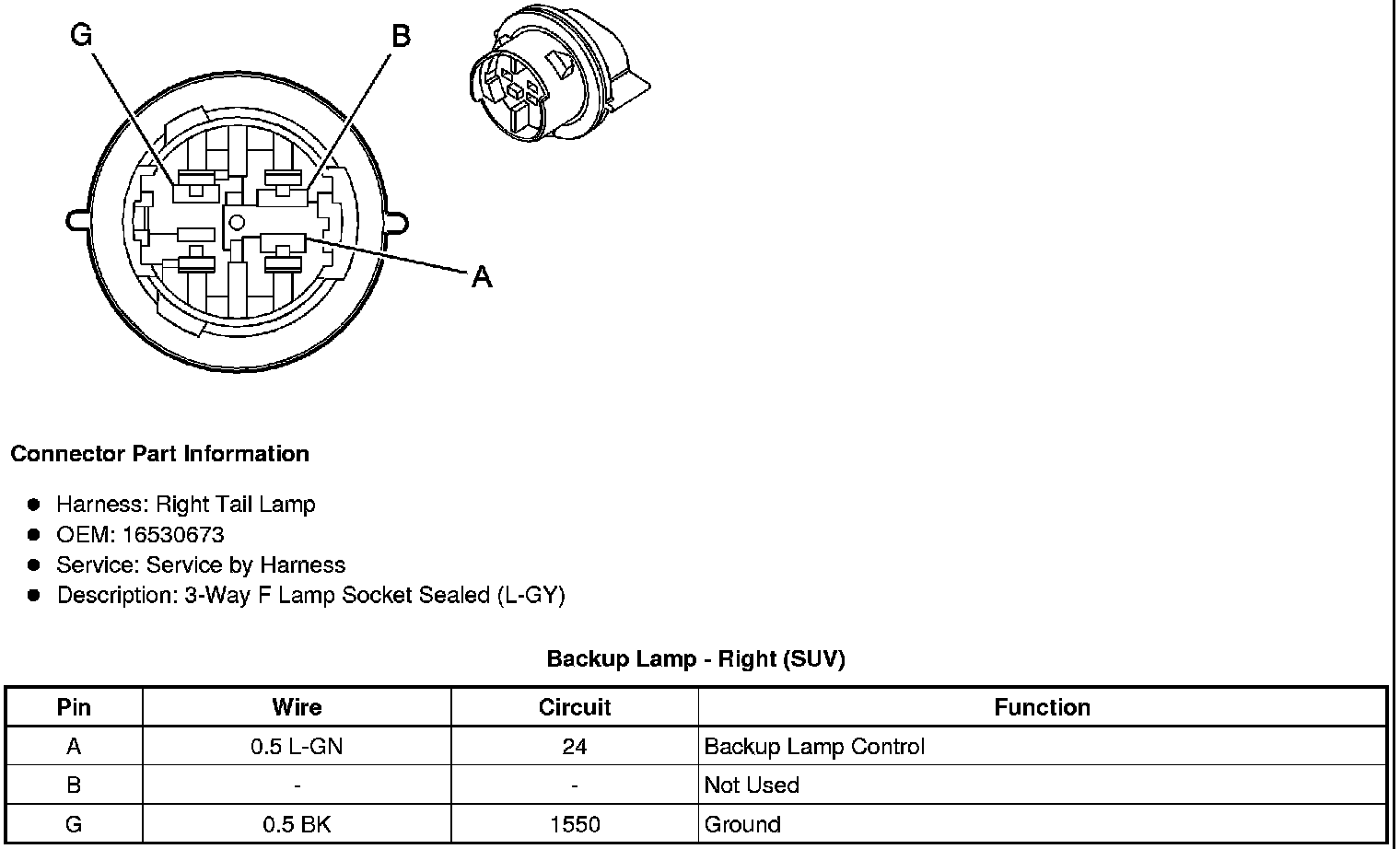

Backup Lamp - Right (SUV)

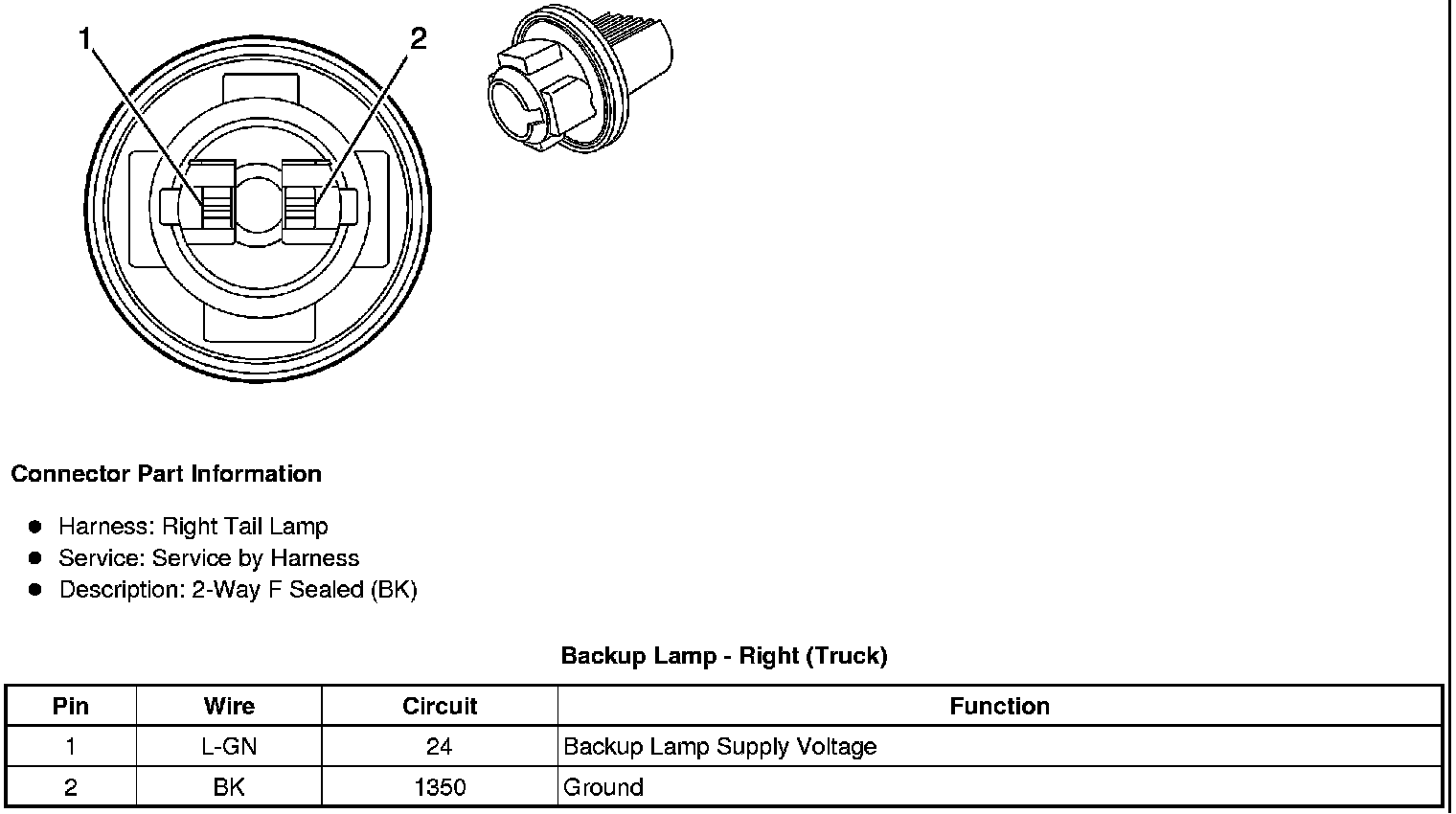

Backup Lamp - Right (Truck)
