System Diagram




Component Connector End Views

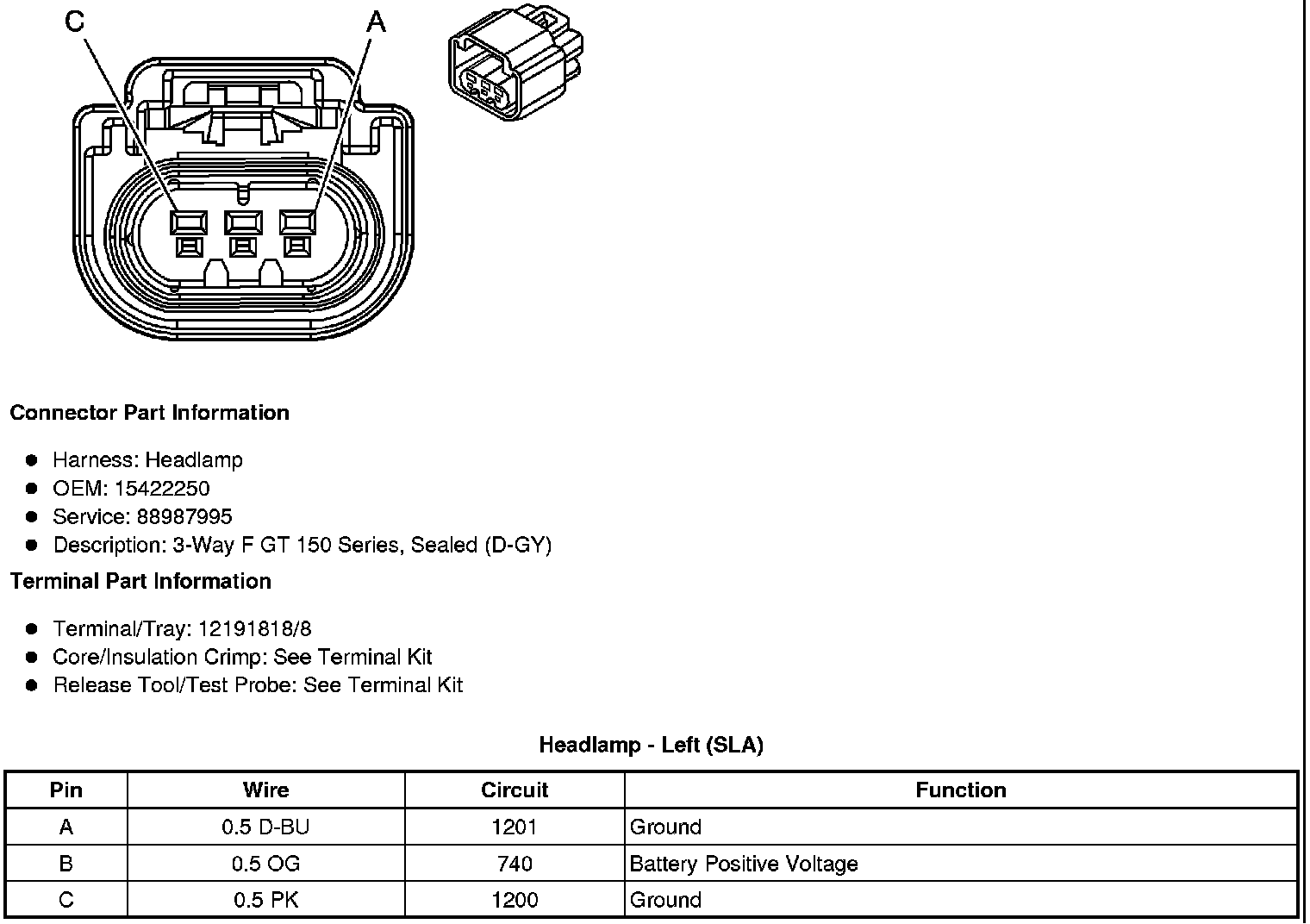

Headlamp - Left (SLA)






Headlamp - Left (SSA)






Headlamp - Right (SLA)






Headlamp - Right (SSA)
